Removal (F Super Duty)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Shift transmission into gear, and disconnect parking brake cable. Pedal or lever must be in fully released position. Set vehicle on jack stands. Disconnect speedometer cable. Remove bolts attaching drive shaft to parking brake assembly output flange.

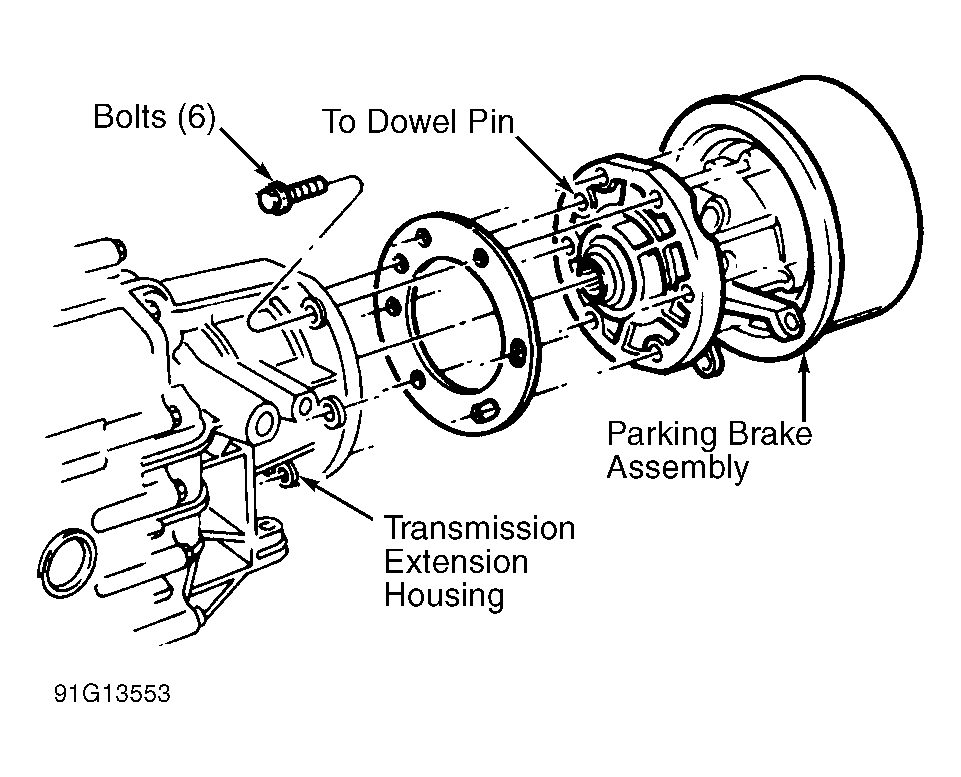

- Remove drive shaft, and secure aside. Remove bolts attaching parking brake assembly to transmission extension housing. See Fig 1. Remove assembly from transmission.
