Stoplight Switch: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

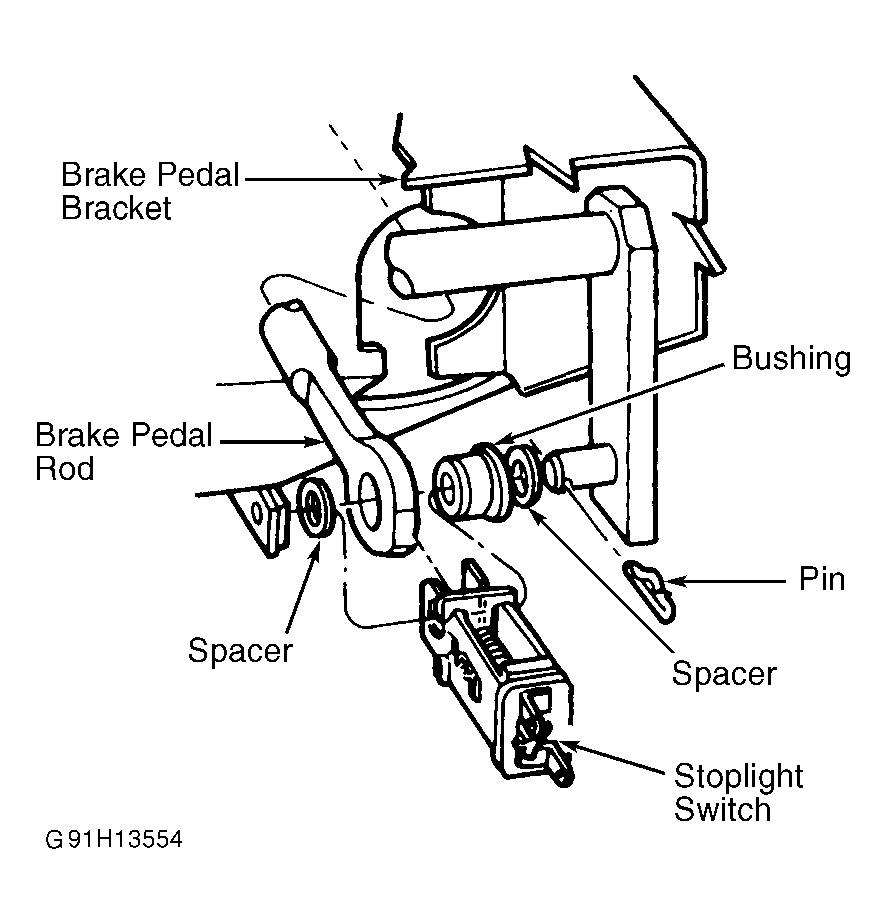

Disconnect wire harness from connector. Remove pin. Slide stoplight switch, brake pedal rod, spacer and bushing away from brake pedal arm. Since stoplight switch side plate nearest brake pedal arm is slotted, brake pedal rod and one spacer from pedal arm do not need removal. See Figure.
