Removal (F250/350)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

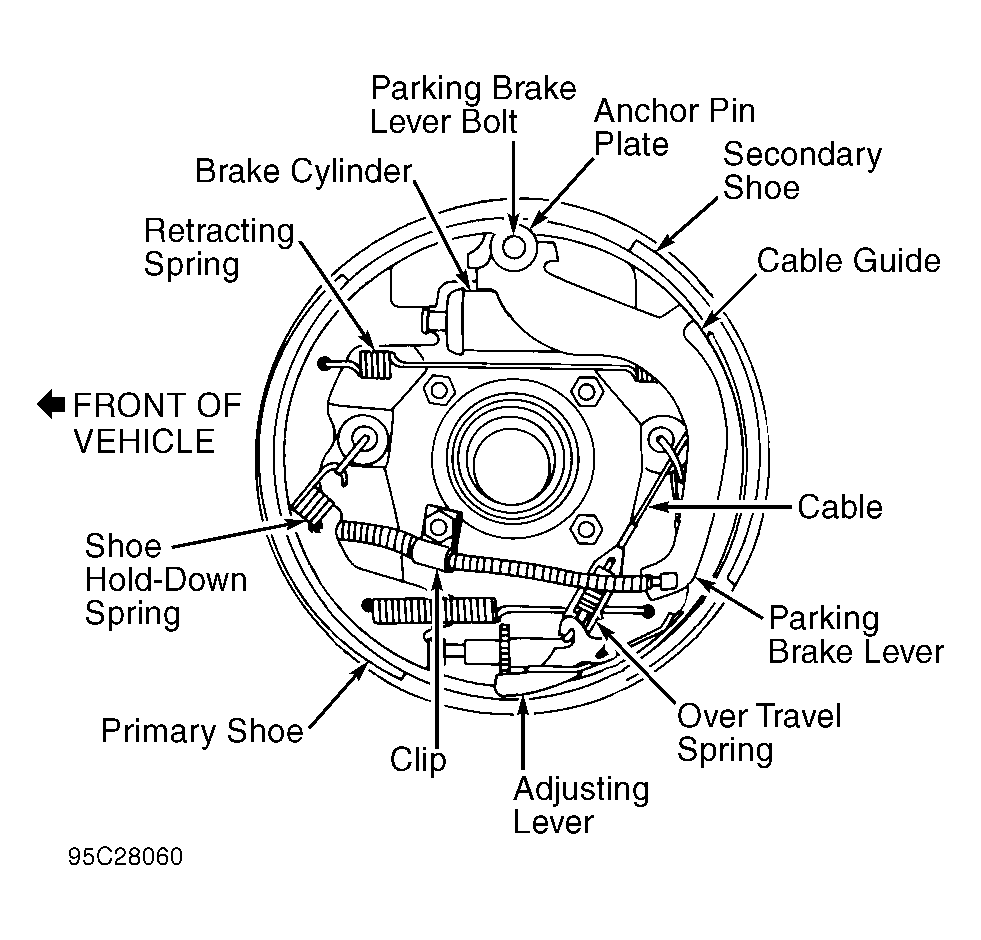

Remove wheel assembly and brake drum. If brake drum is difficult to remove, use a narrow screwdriver and brake adjustment tool to retract brake shoes. Remove parking brake lever assembly retaining bolt from backing plate. Remove parking brake lever assembly. See Fig 1. Remove adjusting cable assembly from anchor pin, cable guide and adjusting lever. Remove brake shoe return springs, hold-down springs and brake shoes. Remove and disassemble adjusting screw assembly.
