Removal (F150)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

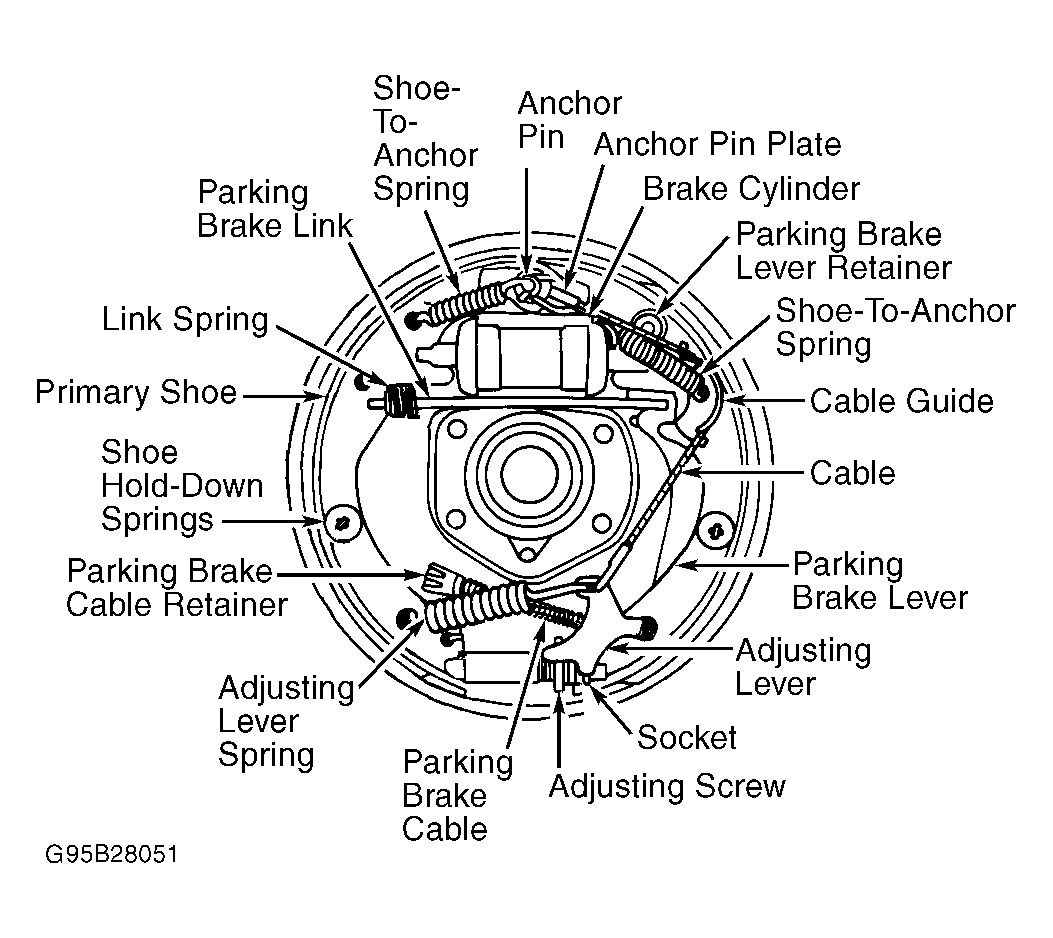

- Remove wheel assembly and drum. If brake drum is difficult to remove, use a narrow screwdriver and brake adjustment tool to retract brake shoes. Place a wheel cylinder clamp over ends of wheel cylinder. Disengage adjusting lever from adjusting screw by pulling backward on lever cable. See Fig 1.
- Move outboard side of adjusting screw upward, and back off pivot nut as far as possible. Pull adjusting lever, cable and adjusting spring down and toward rear to unhook pivot hook from large hole in secondary shoe. DO NOT pry pivot hook from hole.
- Remove adjusting spring and adjusting lever. Remove secondary shoe-to-anchor spring. Remove primary shoe-to-anchor spring. Unhook cable anchor, and remove anchor pin plate.
- Remove cable guide, shoe hold-down springs, brake shoes, adjusting screw, pivot nut and socket. Remove parking brake link spring and link. Note color and position of springs for reassembly.
- Disconnect parking brake cable from lever. Remove secondary shoe. Disassemble parking brake lever from shoe by removing lever retainer and spring washer.
