Removal (F150 4WD W/Automatic & Manual Locking Hubs, F250 Light-Duty, F250 Heavy-Duty & F350 4WD W/Manual Locking Hubs)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Raise vehicle, and support with safety stands. Remove wheel assembly and caliper. On F150 with automatic locking hubs, separate hub cap from hub body assembly by removing 5 Torx (T25) head cap screws. Remove cap. DO NOT drop spring, ball bearing, bearing race or retainer.NOTE: Information for rotor removal on F250 Heavy-Duty and F350 with automatic locking hubs is not available from manufacturer at time of publication.
- Remove rubber seal and seal bridge from retainer ring space. Remove retainer ring by squeezing ends together. Remove hub body assembly. Remove "C" washer and splined spacer from spindle. On vehicles with manual locking hubs, separate hub cap from hub body assembly by removing 6 Allen head screws.

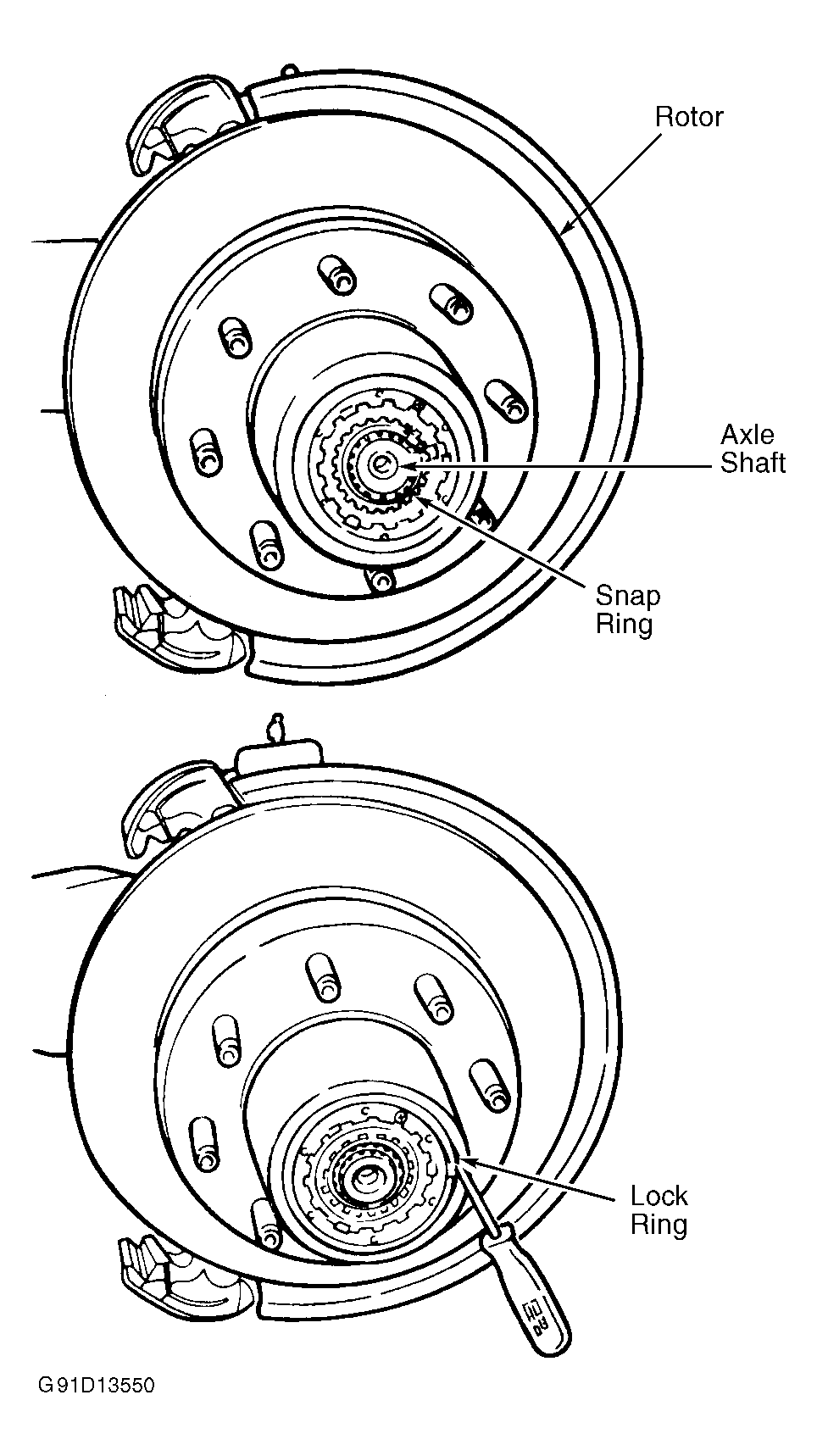

- Remove snap ring attaching hub body assembly to spindle. Remove lock ring seated in groove of hub. See Fig 2. Remove hub body assembly. If hub body does not come out easily, install 2 hub cap screws into hub body, and pull hub body out of hub.

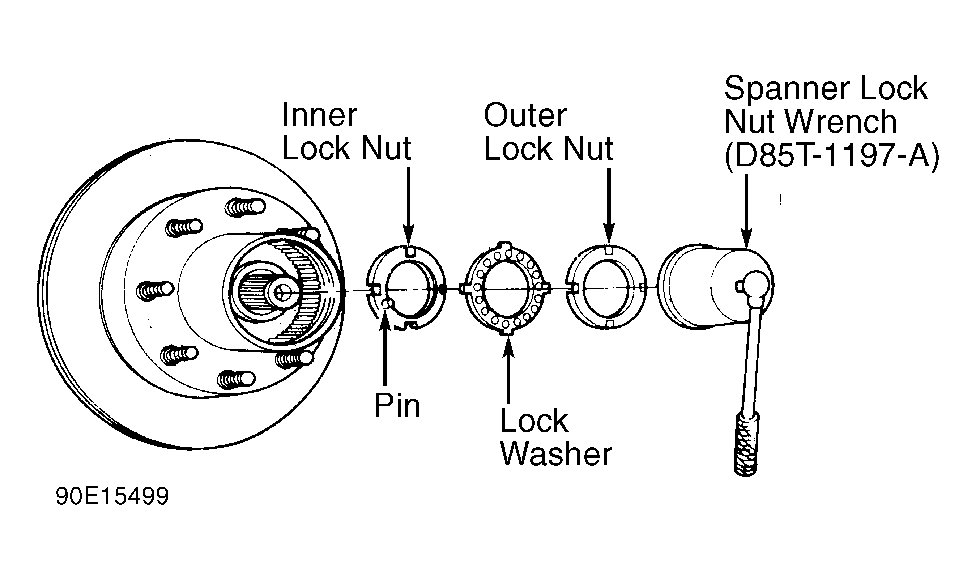

- On F150 with automatic locking hubs and on F250 Heavy-Duty and F350 with manual locking hubs, use Spanner Lock Nut Wrench (D85T-1197-A) to remove outer lock nut. See Fig 3. Remove lock washer. Using spanner lock nut wrench, remove inner lock nut. Remove outer wheel bearing and rotor.
- On F150/F250 Light-Duty with manual locking hubs, use Spanner Lock Nut Wrench (T86T-1197-A) to remove wheel bearing adjusting nut. Remove outer wheel bearing, and then rotor.
