Transmission Mounted Parking Brake: Reassembly

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using Bearing Cup Installer (T88T-2598-E), install bearing cup into case. Install inner bearing. Apply a light coat of sealer to outer edge of oil seal. Place oil seal in case with sealing lip facing inward. Press seal into case flush with bore surface using Seal Installer (T88T-2598-C).
  2. Install actuating lever spring on boss in case. See Fig 1. Apply a light coat of lithium base grease to actuating lever ball. Install ball end of lever into hole in boss through coiled end of spring. Position backing plate and brake assembly onto case.

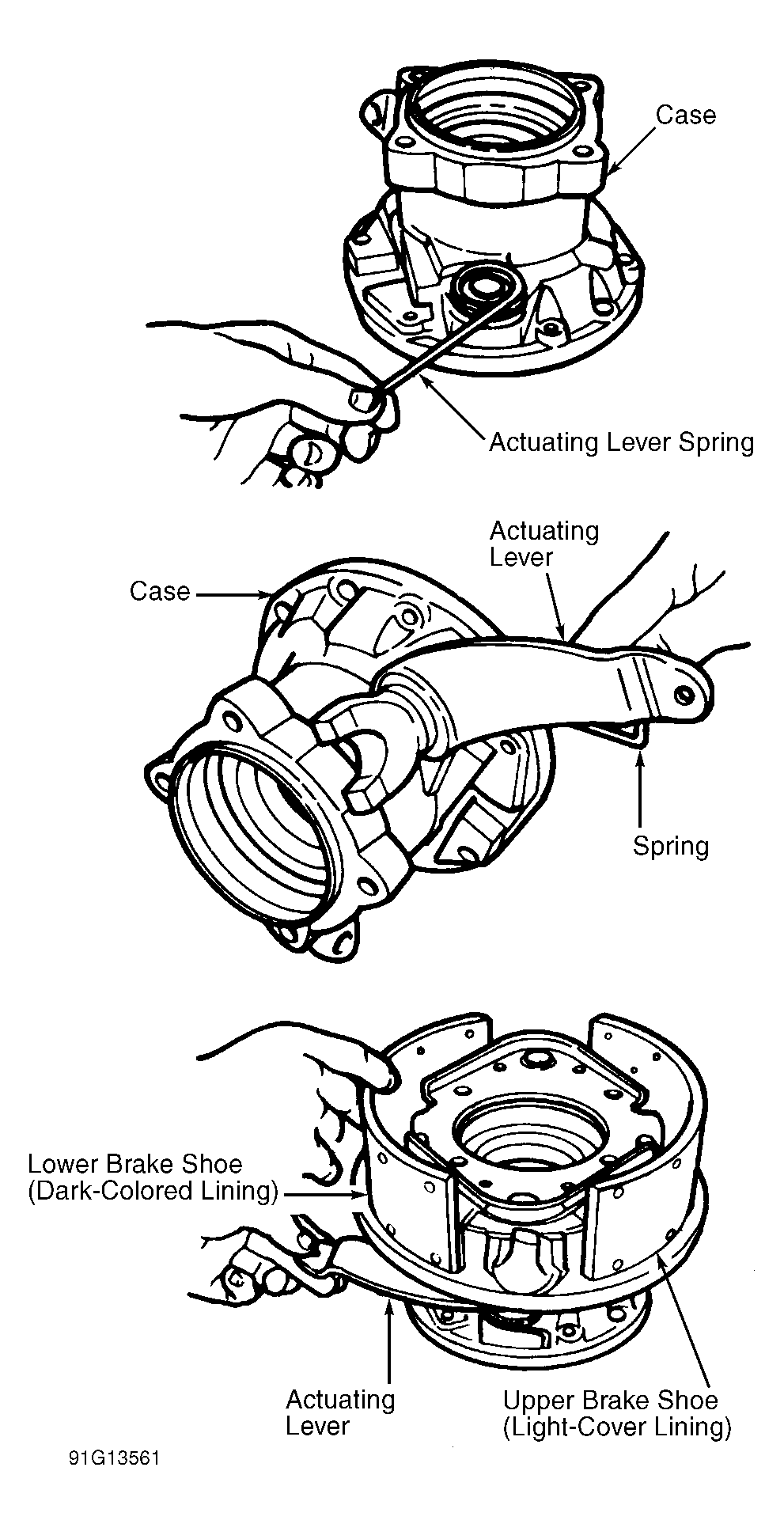

    Fig 1: Installing Lever Spring, Actuating Lever, Backing Plate & Brake Assembly (F Super Duty)
    G91G13561Courtesy of FORD MOTOR CO.
  3. Insert actuating lever (cam end) into position in brake assembly. Install and tighten brake assembly mount bolts. Attach return spring to actuating lever, and bend long end of spring to snap over lever. Place mainshaft with flanged end up in vise using brass jaw protectors.
  4. Install brake drum and output flange onto flanged end of mainshaft. Install output flange onto brake drum, aligning marks made during disassembly. Proper installation maintains proper component balance. Install and tighten output flange mount nuts. Remove mainshaft and drum assembly from vise. Turn assembly over, and clamp in vise again.
  5. Install case onto mainshaft, guiding shaft through oil seal and bearing. Using Bearing Installer (T88T-2598-F), seat output bearing onto mainshaft. Install speedometer drive gear and snap ring onto mainshaft. Using Bearing Cup Installer (T88T-2598-D), install input bearing cup into housing.
    NOTE: Mainshaft shim determines end play. Shims are available in thicknesses increments of.0019" (.048 mm).
  6. Install shim on mainshaft. Install inner bearing onto mainshaft. To measure end play, install bearing spacer, without "O" ring, onto mainshaft. Clamp case assembly and mainshaft in vise. Use Lock Nut Socket (T70T-4252-D) to screw hex nut onto mainshaft.
  7. Mount a dial indicator between mainshaft and case. While rotating case assembly on mainshaft to center bearings, apply up and down pressure to take end play reading. End play should be.0019-.0039" (.048-.099 mm). Select proper shim to reach specified end play.
  8. Coat outer surface of NEW input oil seal with sealant. Install oil seal into case with sealing lip facing inward. Press seal in until it is fully seated. Install a NEW "O" ring in notch of bearing spacer. See Fig 2. Install "O" ring and bearing spacer onto mainshaft until spacer butts against input bearing.

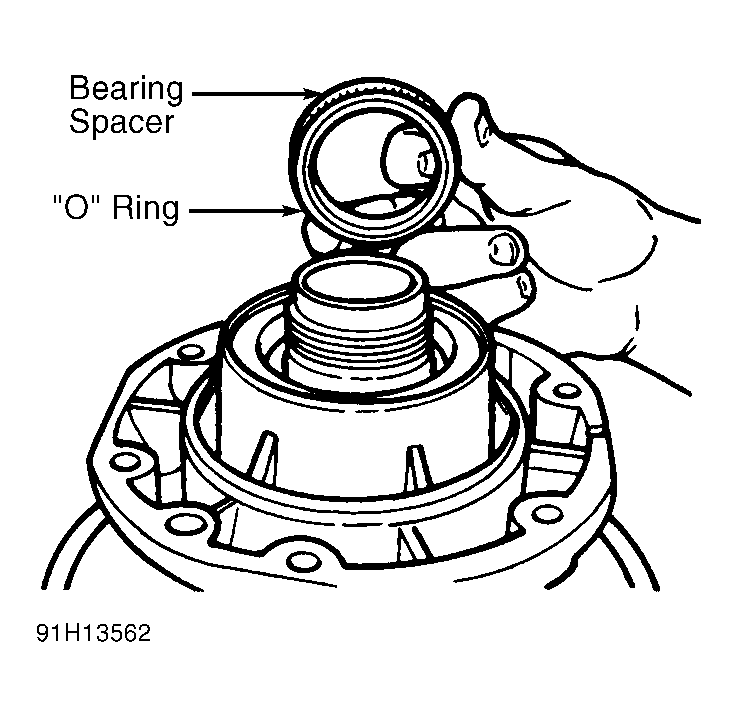

    Fig 2: Installing "O" Ring & Bearing Spacer (F Super Duty)
    G91H13562Courtesy of FORD MOTOR CO.
  9. Use Lock Nut Socket (T70T-4252-D) to install a NEW lock nut onto shaft. Screw vent into case. Remove parking brake assembly from vise. Install onto vehicle. Fill case with Motorcraft MERCON multipurpose automatic transmission fluid. Fill to bottom of fill hole. To install remaining components, reverse removal procedure.
