Rear Disc Brakes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

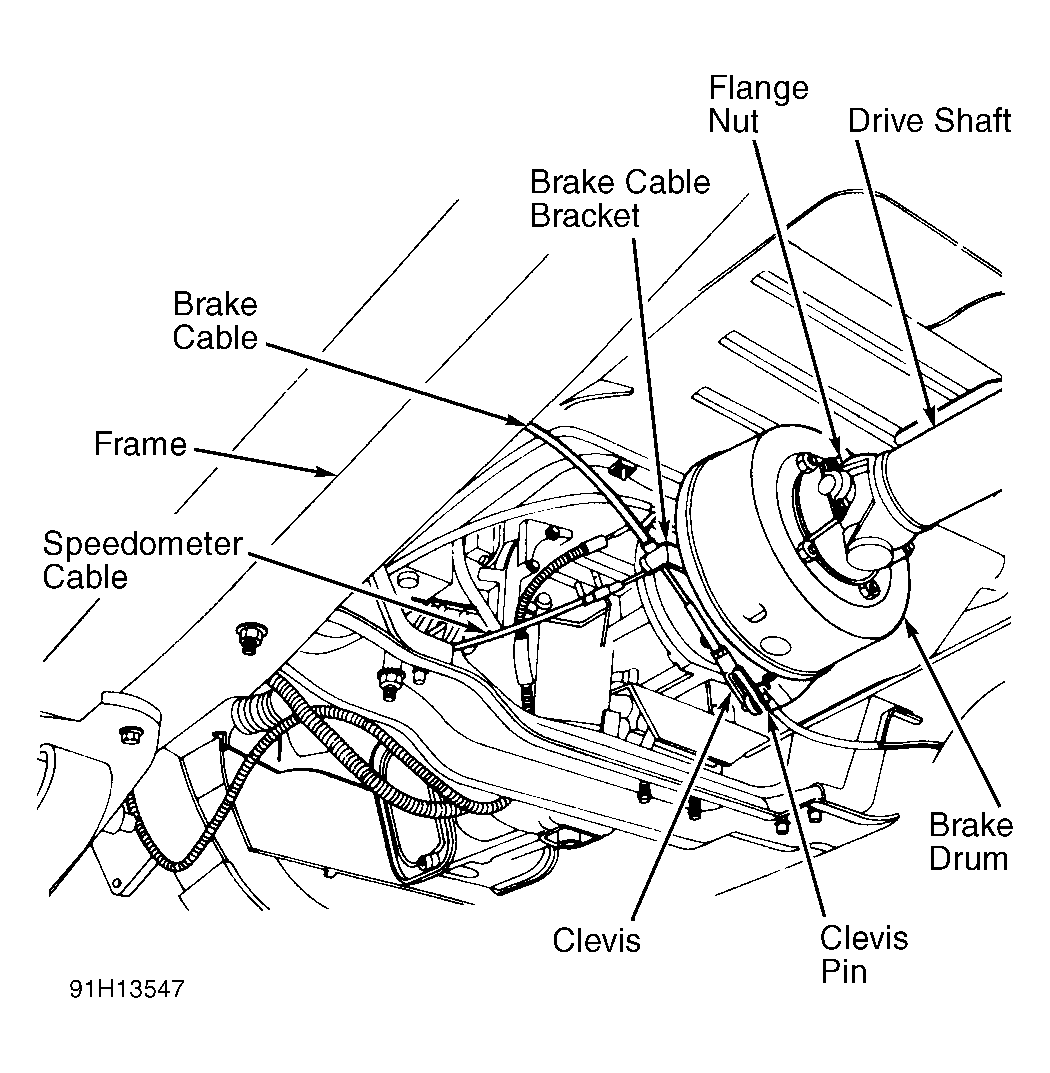

F Super Duty has standard equipment rear disc brakes. A single-anchor, dual-piston brake assembly is used on rear. F Super Duty uses as cable-actuated, transmission-mounted parking brake. Transmission mounted parking brake, located on transmission extension housing, consists of a case assembly and cable actuated 9" x 3" Bendix brake assembly. See Fig 1. Case assembly consists of roller bearings, companion flange and mainshaft, assembled in a one-piece aluminum housing. Case assembly has a lubrication supply separate from transmission.
