Transmission Mounted Parking Brake Field Adjustment (F Super Duty)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Use this procedure to correct excess parking brake actuation lever travel. Raise vehicle and set on jack stands. Shift transmission to Neutral, and release parking brake. Loosen parking brake clevis adjusting jam nut several turns.

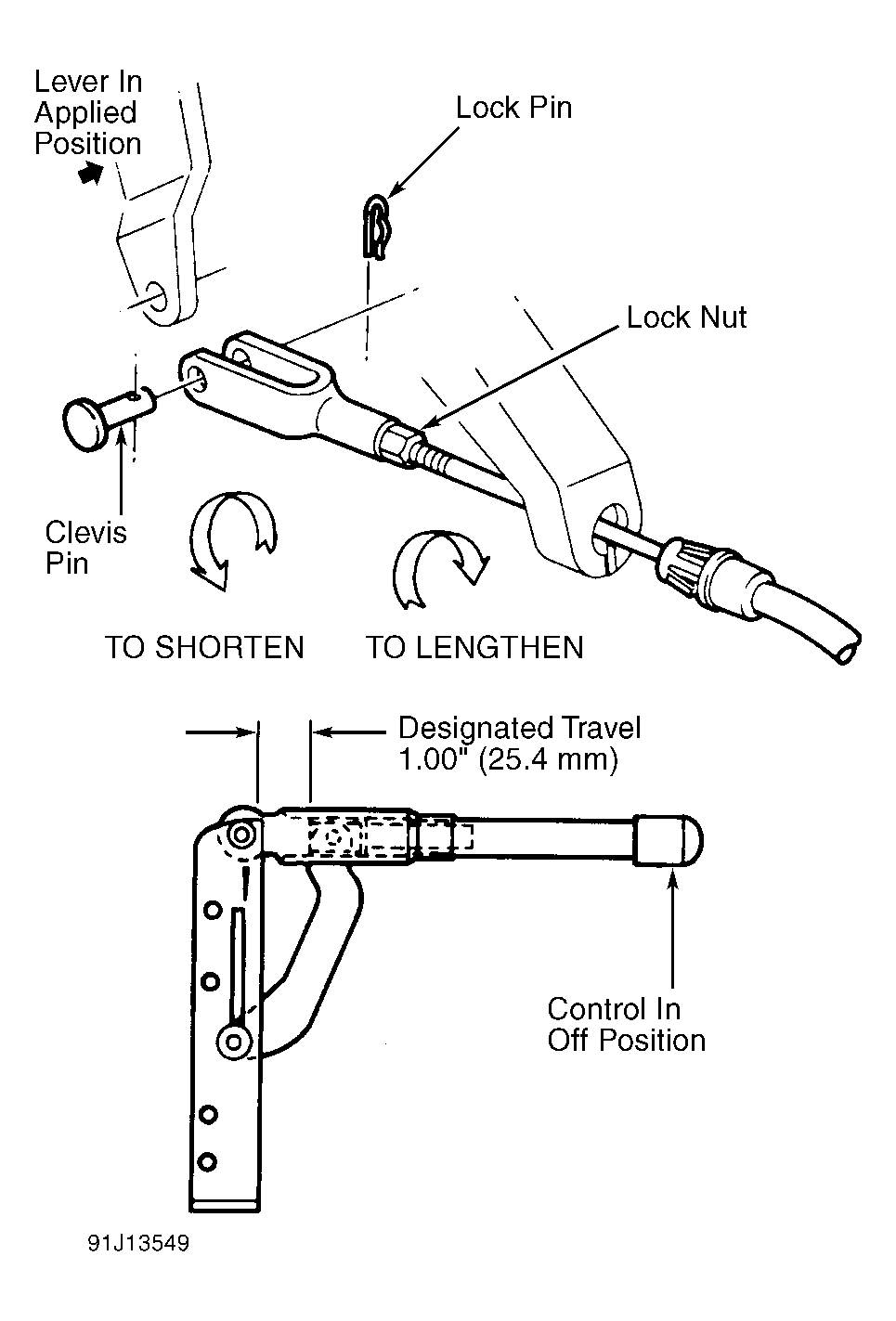

- Remove lock pin and clevis pin from clevis. See Fig 1. Hold lever and cable, removing slack. Screw adjusting clevis onto threaded end of cable until parking brake lever hole and clevis hole align. Rotate clevis about 10 turns. Tighten jam nut. Rotate driveshaft to ensure rear brakes are not dragging. Lower vehicle to ground. Check parking brake for proper operation.
- On vehicles with Orschein hand-actuated parking brake lever, turn handle adjustment knob to obtain 1" of travel. See Fig 1. Release parking brake. Loosen parking brake clevis adjusting jam nut several turns. Install parking brake cable into parking brake mounting bracket.
- Hold parking brake actuation lever in applied position. Screw adjusting clevis onto threaded end of cable until parking brake lever hole and clevis hole align. Rotate clevis about 10 turns. Tighten jam nut. Assemble clevis to parking brake actuation lever. Check parking brake for proper operation. Turn adjustment knob on parking brake actuation lever for additional adjustment.
