Drums Removed

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 1997 Ford Pickup, 1997 Ford F-Super Duty, 1997 Ford Cab & Chassis, 1996 Ford Pickup, and 1996 Ford F-Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust with brake drums cold and parking brake correctly adjusted. Measure brake drum inside diameter using brake shoe adjustment gauge. See Fig 1.

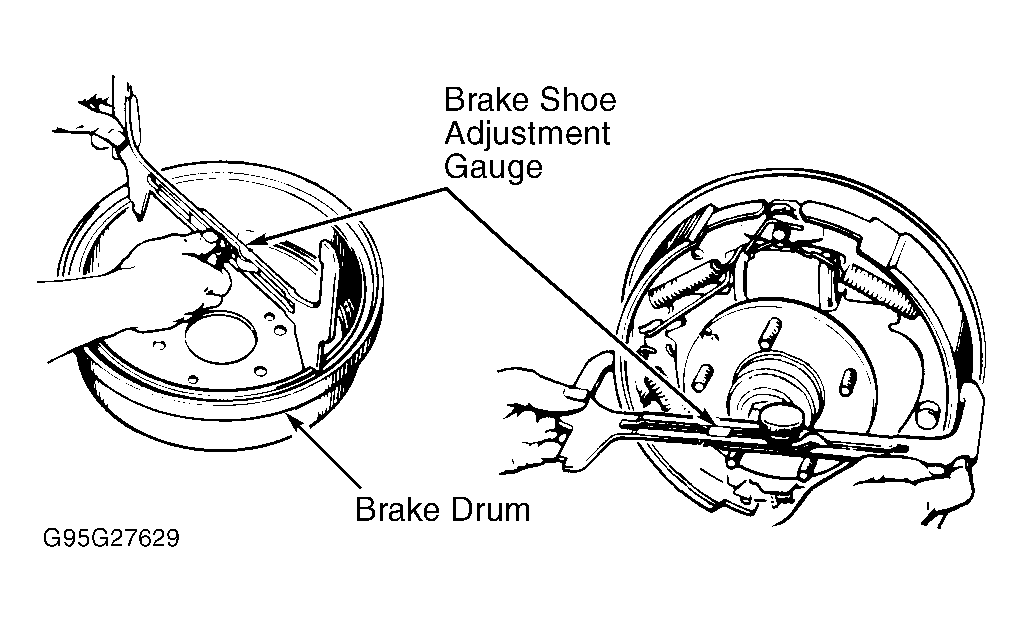

    Fig 1: Measuring Brake Drum & Shoe Diameter
    G95G27629Courtesy of FORD MOTOR CO.
  2. Reverse adjustment gauge. Apply gauge to brake shoes on a line parallel to ground and through center of axle. Hold adjusting lever away from adjusting screw. Turn screw until outside diameter of shoes contacts gauge. See Fig 1.
  3. Install brake drum and wheel assembly. Complete adjustment by applying brakes quickly several times while driving vehicle alternately forward and backward. Check brake operation by stopping often while driving forward.
