Removal & Installation

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 1995 Mercury Villager, 1995 Mercury Tracer, 1995 Mercury Sable, 1995 Mercury Mystique, and 1995 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

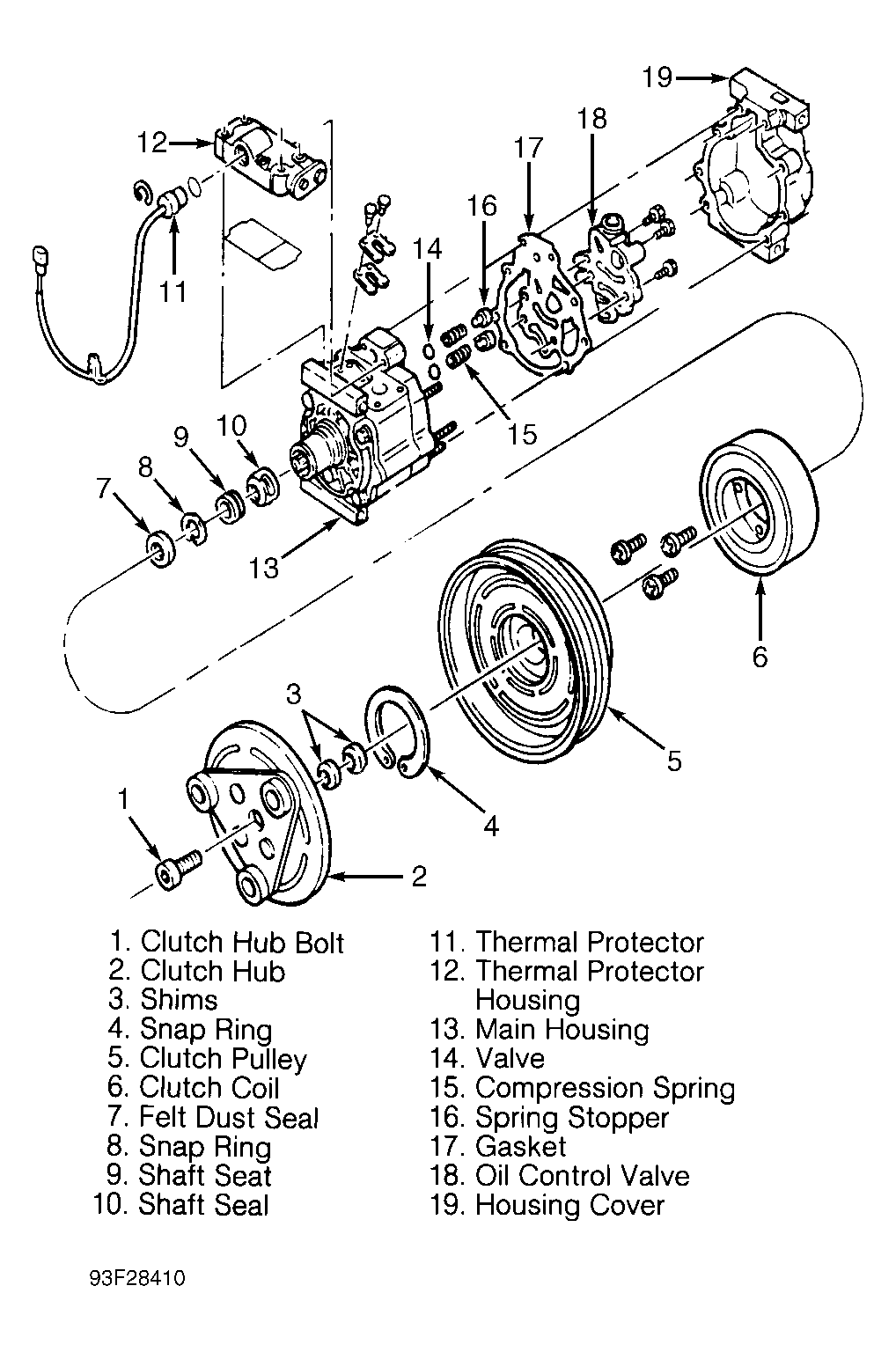

  1. Remove Allen head bolt from clutch hub. Remove clutch hub. Using snap ring pliers, remove clutch pulley snap ring. Remove clutch pulley from compressor shaft. See Figure .
  2. Disconnect clutch coil lead. Release lead from safety clip (if equipped). Using Phillips screwdriver, remove clutch coil screws. Remove clutch coil. To install, reverse removal procedure. Tighten clutch hub bolt to 10 ft. lbs. (14 N.m).
