Shaft Seal: Installation

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 1995 Mercury Villager, 1995 Mercury Tracer, 1995 Mercury Sable, 1995 Mercury Mystique, and 1995 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place Shaft Seal Protector (T71P-19703-H) over compressor shaft. Lubricate shaft seal and nose of compressor with new refrigerant oil. DO NOT touch sealing surface of seal or shaft. Engage seal tangs on shaft seal remover/installer.
  2. Align flats of seal with flats on compressor shaft, and push new seal onto compressor shaft. Push downward on shaft seal remover/installer, and turn it counterclockwise to disengage seal tangs.
  3. Attach shaft seal seat to shaft seal seat remover/installer, and lubricate seal seat with new refrigerant oil. Install seal seat and push inward against seal. Install shaft seal seat snap ring.
  4. Install dust seal retainer and felt packing. Install clutch plate. Using new refrigerant oil, add to compressor the same amount of oil drained from it. Rotate compressor 10 revolutions to distribute oil. Install compressor. Evacuate and recharge system. Perform leak test.

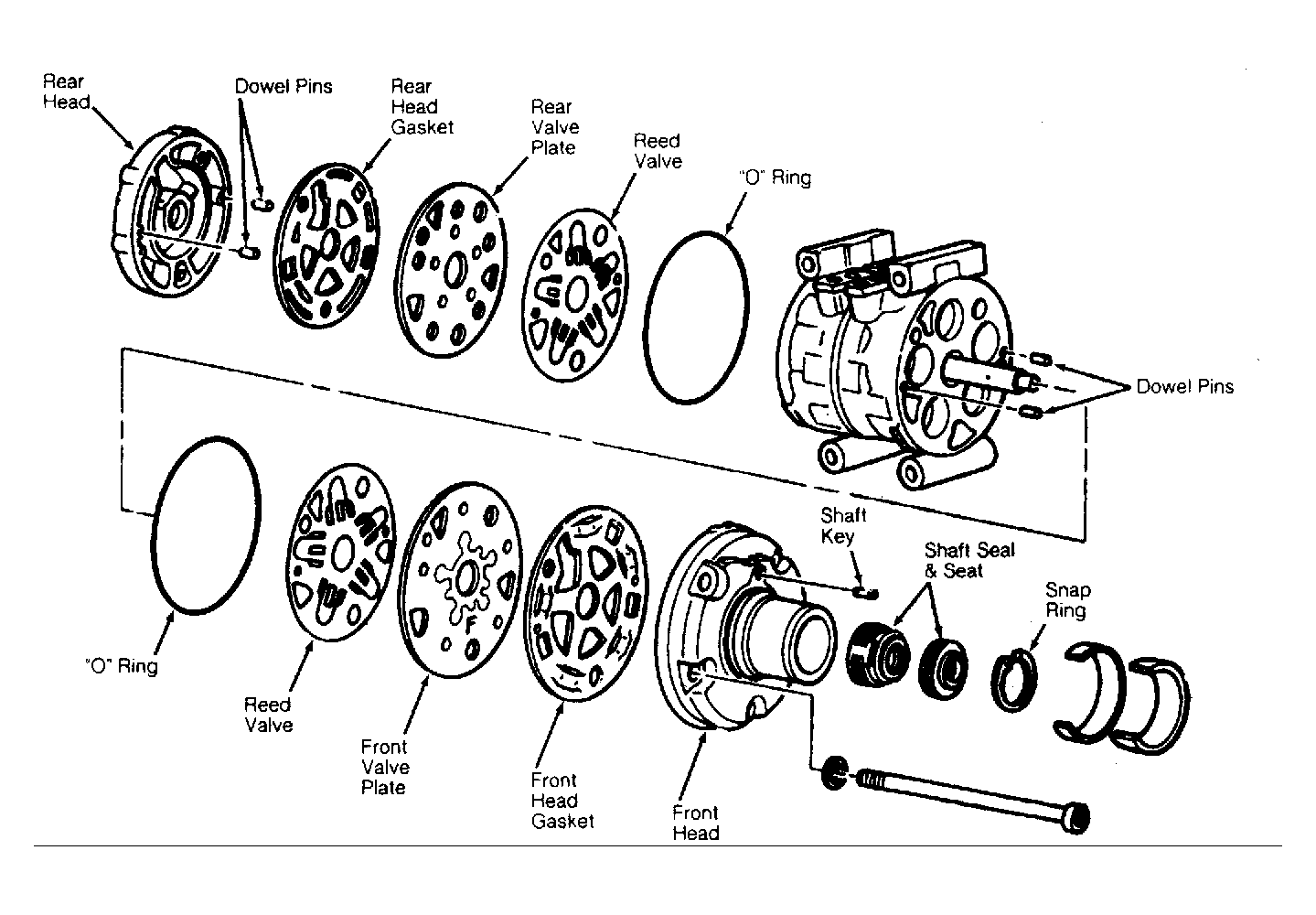

Fig 1: Exploded View Of Compressor (10P13 & 10P15F 10-Cylinder)
G104027Courtesy of FORD MOTOR CO.
