Auxiliary Heater System
WARNING: This page is about a different car, the 1995 Ford RV Cutaway, 1995 Ford Econoline, 1995 Ford Cutaway, and 1995 Ford Club Wagon. However, it is still accessible from the selected car via links, so may be relevant.

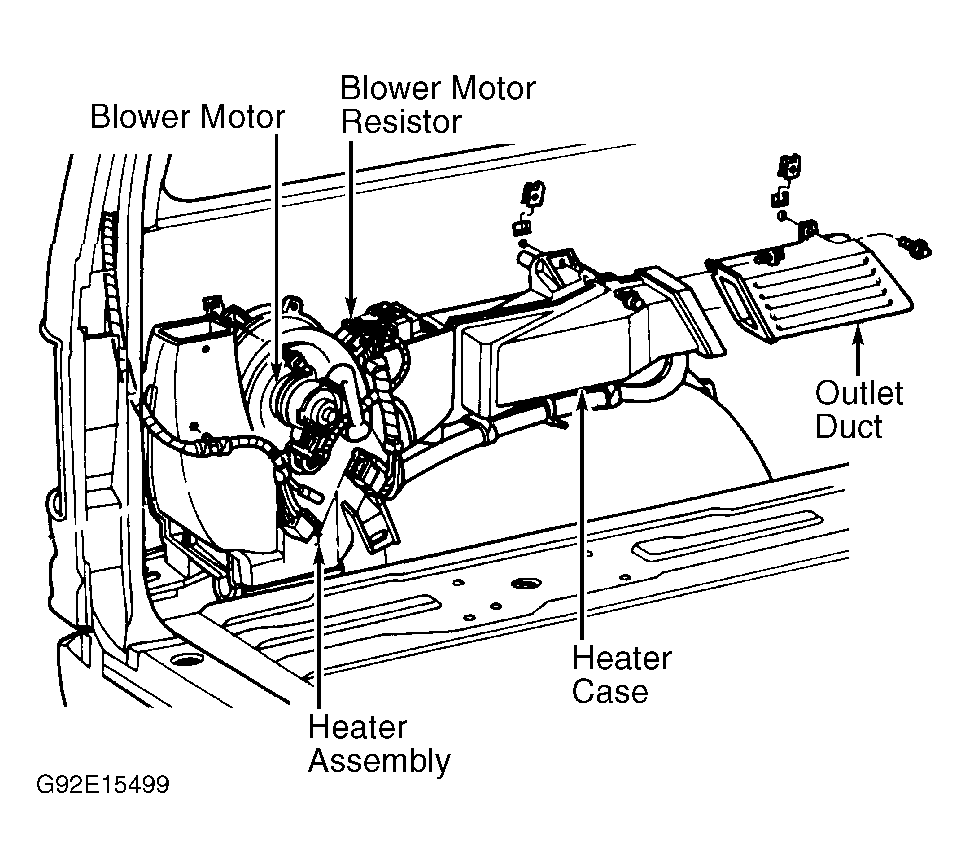

Some models are equipped with a recirculating air-type auxiliary heating system. System components include auxiliary unit assembly and airflow duct assembly. See Figure .
Control panel is mounted in dashboard and contains function selector lever, temperature control module and lever, and blower control switch. Rear heater equipped vehicles have 2 blower switches, which work independently of one another.
WARNING:
To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in the AIR BAG RESTRAINT SYSTEM article in the ACCESSORIES/SAFETY EQUIPMENT section.
