SAFING Sensor R & I: Removal
WARNING: This page is about a different car, the 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Cab & Chassis, and 1995 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.

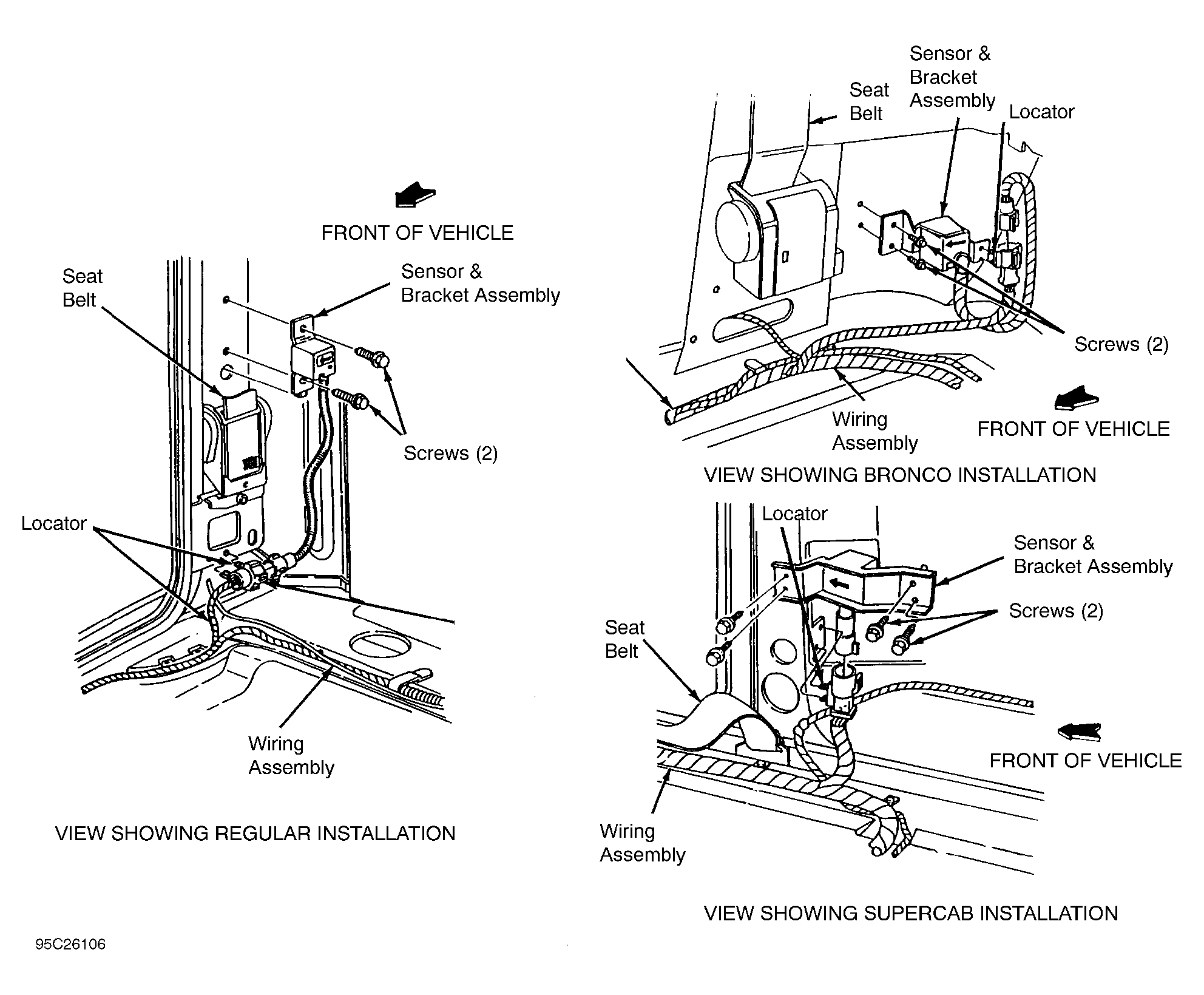

Before proceeding, read and understand all air bag service precautions. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Safing sensor is mounted to right side "B" pillar behind corner trim panel. See Fig 1 . Remove right rear corner trim panel. Disconnect sensor from wiring assembly connector. Remove retaining screws and sensor from cowl panel. Remove sensor from vehicle.
