Turbocharger Overhaul: Disassembly
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 1998 Ford RV Cutaway, 1998 Ford Econoline, 1998 Ford Cutaway, 1998 Ford Club Wagon, and 1997 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

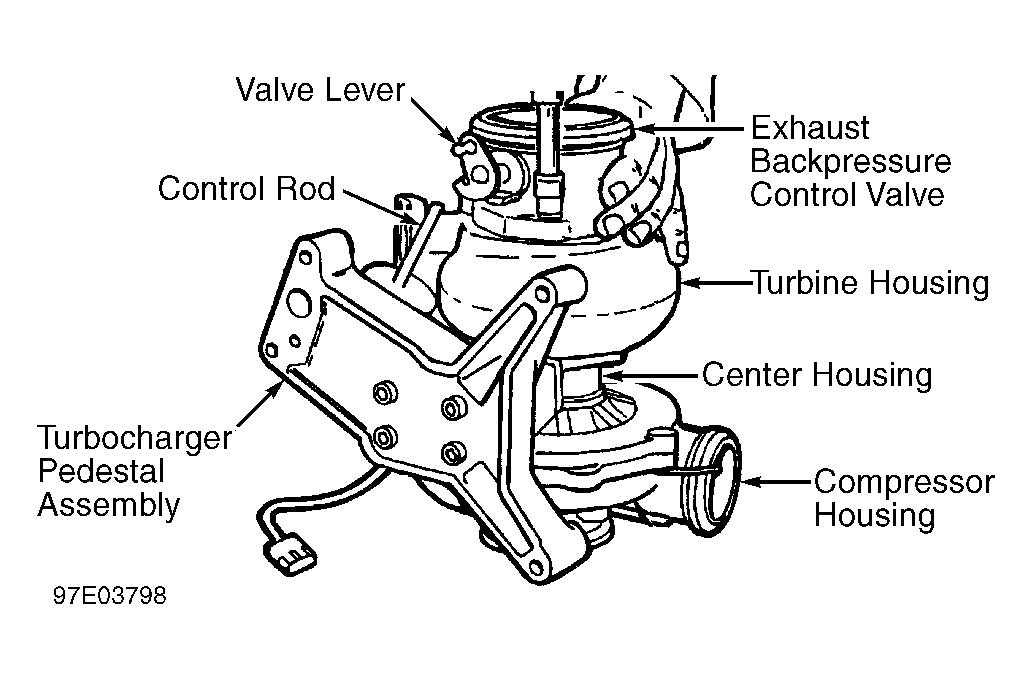

- Disconnect control rod from valve lever on exhaust backpressure control valve. See Fig 1. Remove exhaust backpressure control valve-to-compressor housing bolts and remove exhaust backpressure control valve. See Fig 1.
- Remove turbocharger pedestal assembly-to-turbocharger center housing bolts. These bolts are located on bottom side of turbocharger pedestal assembly. Separate turbocharger pedestal assembly and "O" rings from turbocharger center housing.CAUTION: DO NOT damage blades on turbine wheel and compressor wheel when removing turbine housing and compressor housing from center housing.
- Place reference mark on compressor housing, center housing and turbine housing for installation reference. See Fig 1. Remove turbine housing-to-center housing bolts. Remove turbine housing from center housing. Use care not to damage blades on turbine wheel when removing turbine housing.
- Remove compressor housing-to-center housing bolts. Remove compressor housing from center housing. Do not to damage blades on compressor wheel when removing compressor housing.
- Ensure no blades are bent on turbine wheel and compressor wheel. Replace center housing if any blades are bent. DO NOT attempt to straighten blades.
