High Pressure Oil Pump: Removal

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 1998 Ford RV Cutaway, 1998 Ford Econoline, 1998 Ford Cutaway, 1998 Ford Club Wagon, and 1997 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen turbocharger compressor manifold hose clamp. Using suction, remove oil from high pressure oil pump reservoir. Remove fuel filter. Remove necessary hoses from high pressure oil pump. See Fig 1.
  2. Disconnect harness connector from high pressure oil pressure control solenoid. Remove high pressure oil pressure regulator.
  3. Remove access cover on front of engine exposing high pressure oil pump drive sprocket bolt. Remove drive sprocket bolt and washer. Remove high pressure oil pump mounting bolts and pump.

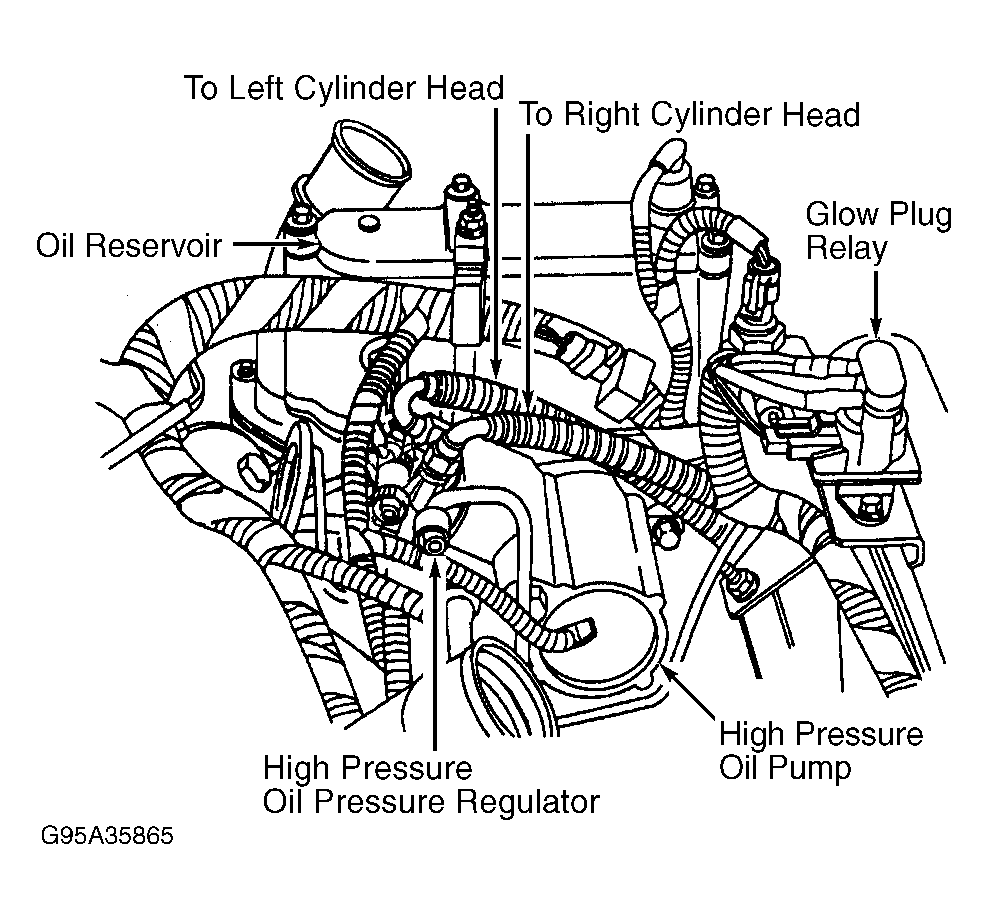

Fig 1: Identifying High Pressure Oil Pump Hose Routing
G95A35865Courtesy of FORD MOTOR CO.
