Fuel Supply Pump: Removal
WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 1998 Ford RV Cutaway, 1998 Ford Econoline, 1998 Ford Cutaway, 1998 Ford Club Wagon, and 1997 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

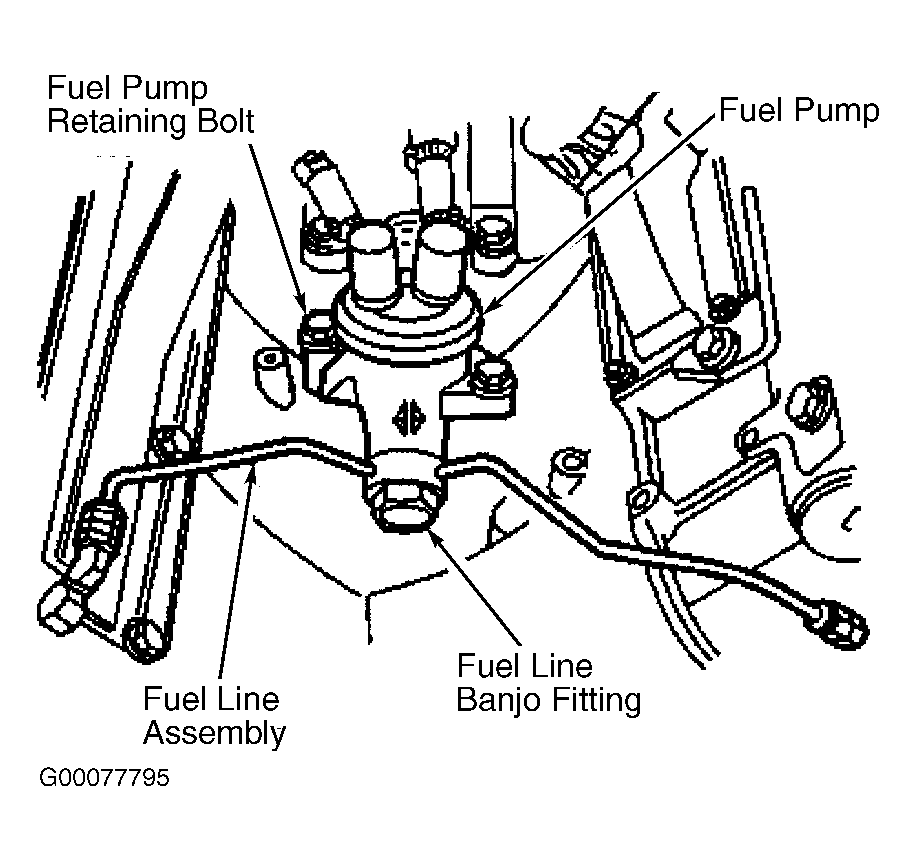

- Remove turbocharger. See TURBOCHARGER . Remove fuel line banjo bolt at fuel pump. Remove fuel line fittings at rear of cylinder heads. Remove hose clamps fuel lines. See Fig 1.
- Disconnect water drain hose at fuel filter. Remove fuel filter mounting bolts and move fuel filter forward. Remove fuel pump bolts and remove fuel pump. Remove fuel pump tappet from bore in engine.
