Fuel Injectors: Installation

WARNING: This page does not describe the selected car, but rather 28 other vehicles, including the 1998 Ford RV Cutaway, 1998 Ford Econoline, 1998 Ford Cutaway, 1998 Ford Club Wagon, and 1997 Ford RV Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply Threadlock 262 (E2FZ-19554-B) to injector as shown. Install new sleeve using Injector Sleeve Replacer (014-00934) and rubber mallet. See Fig 1. Clean any residual sealant from sleeve and injector bore.

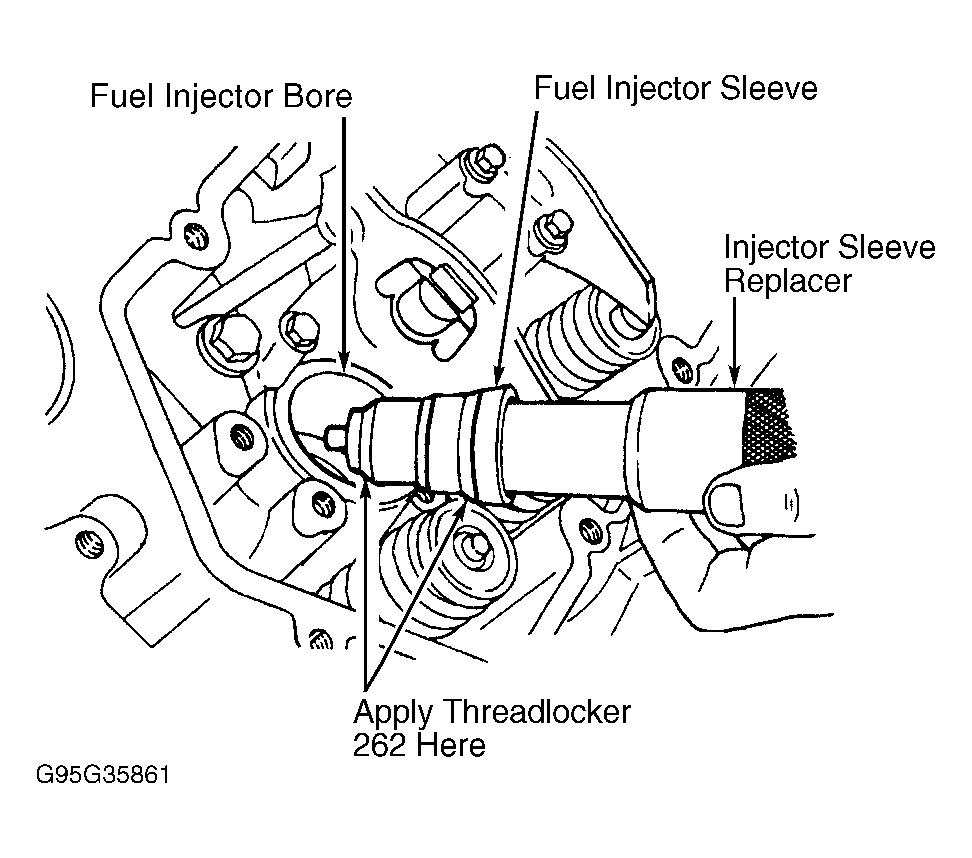

    Fig 1: Installing Fuel Injector Sleeve
    G95G35861Courtesy of FORD MOTOR CO.

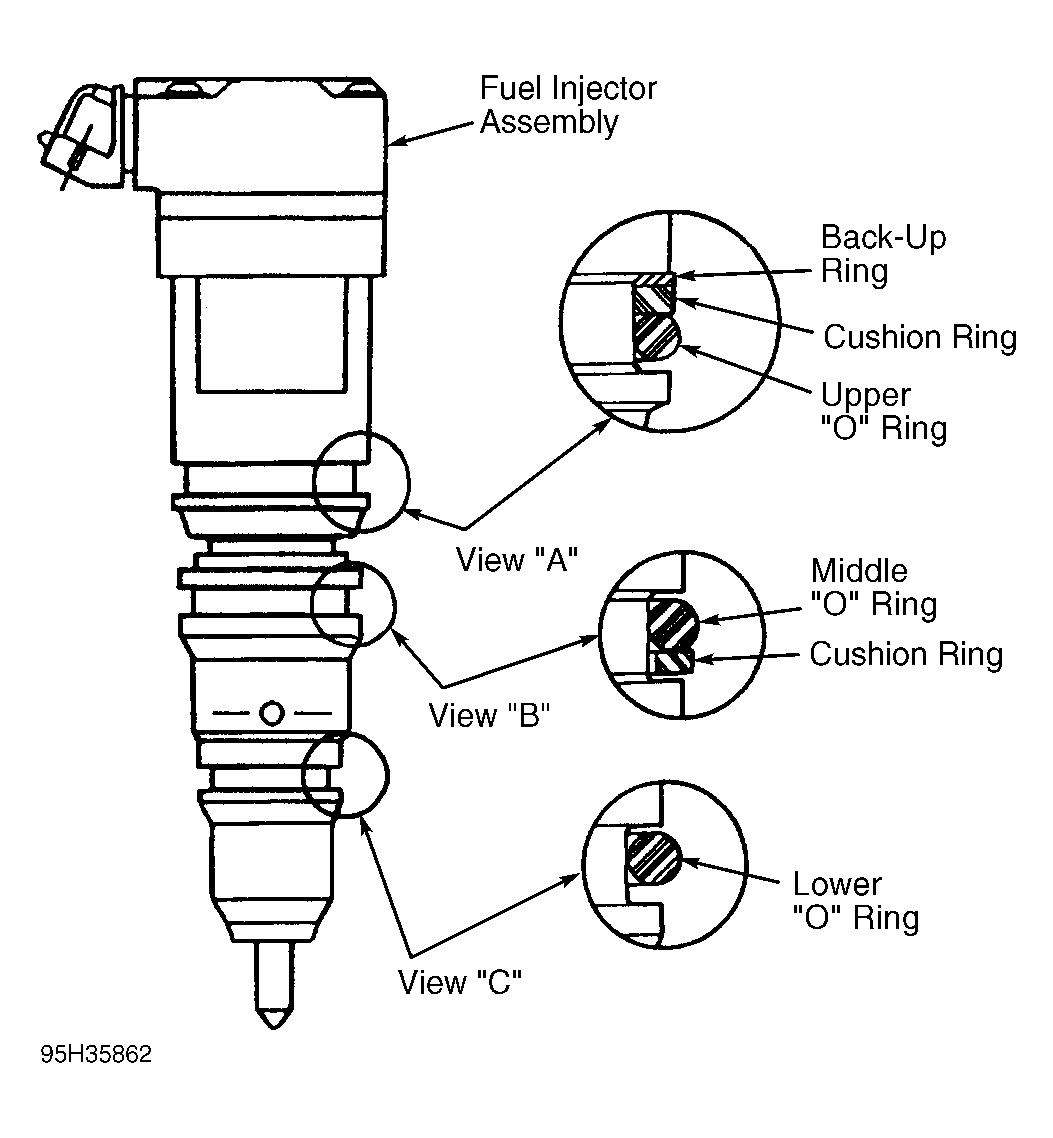

    Fig 2: Installing New "O" Rings On Fuel Injector
    G95H35862Courtesy of FORD MOTOR CO.
  2. Ensure injector bore is completely clean. If reusing fuel injector, replace "O" rings. See Fig 2. Lubricate "O" rings with engine oil. Using Fuel Injector Replacer (T94T-9000-AH2), install fuel injector. See Fig 3.
  3. Install oil deflector and outer injector retaining bolt. Tighten to specification. See TORQUE SPECIFICATIONS . Connect electrical connector to fuel injector. Install valve cover. Tighten valve cover bolts to specification.

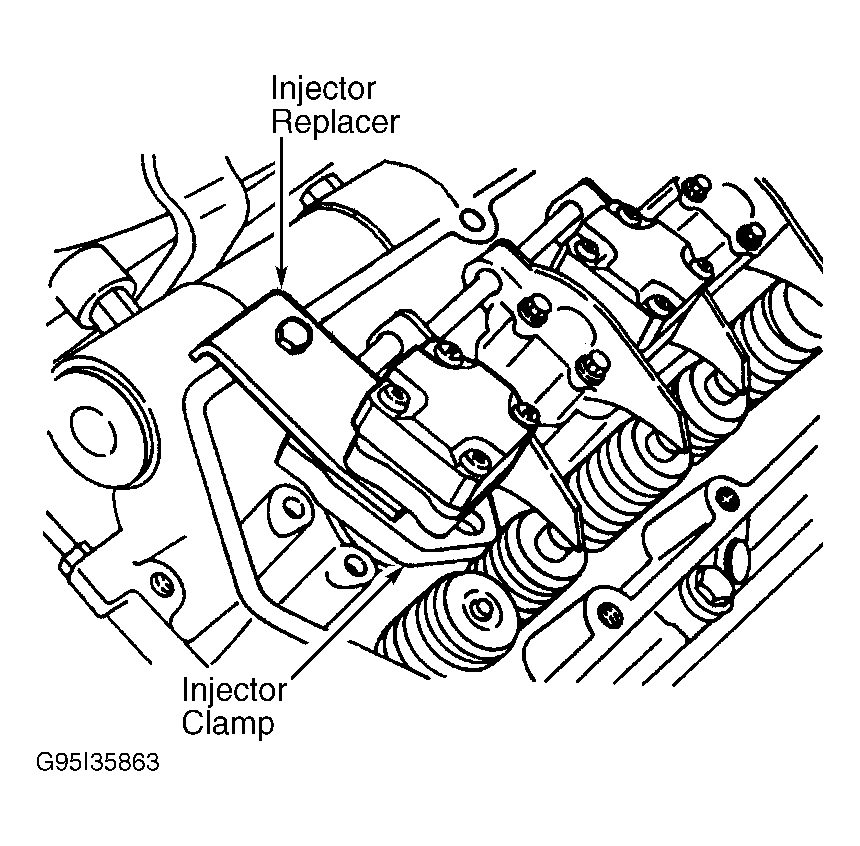

Fig 3: Installing Fuel Injector Using Injector Replacer
G95I35863Courtesy of FORD MOTOR CO.
