Vacuum Hose Diagram(S)

WARNING: This page is about a different car, the 1996 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

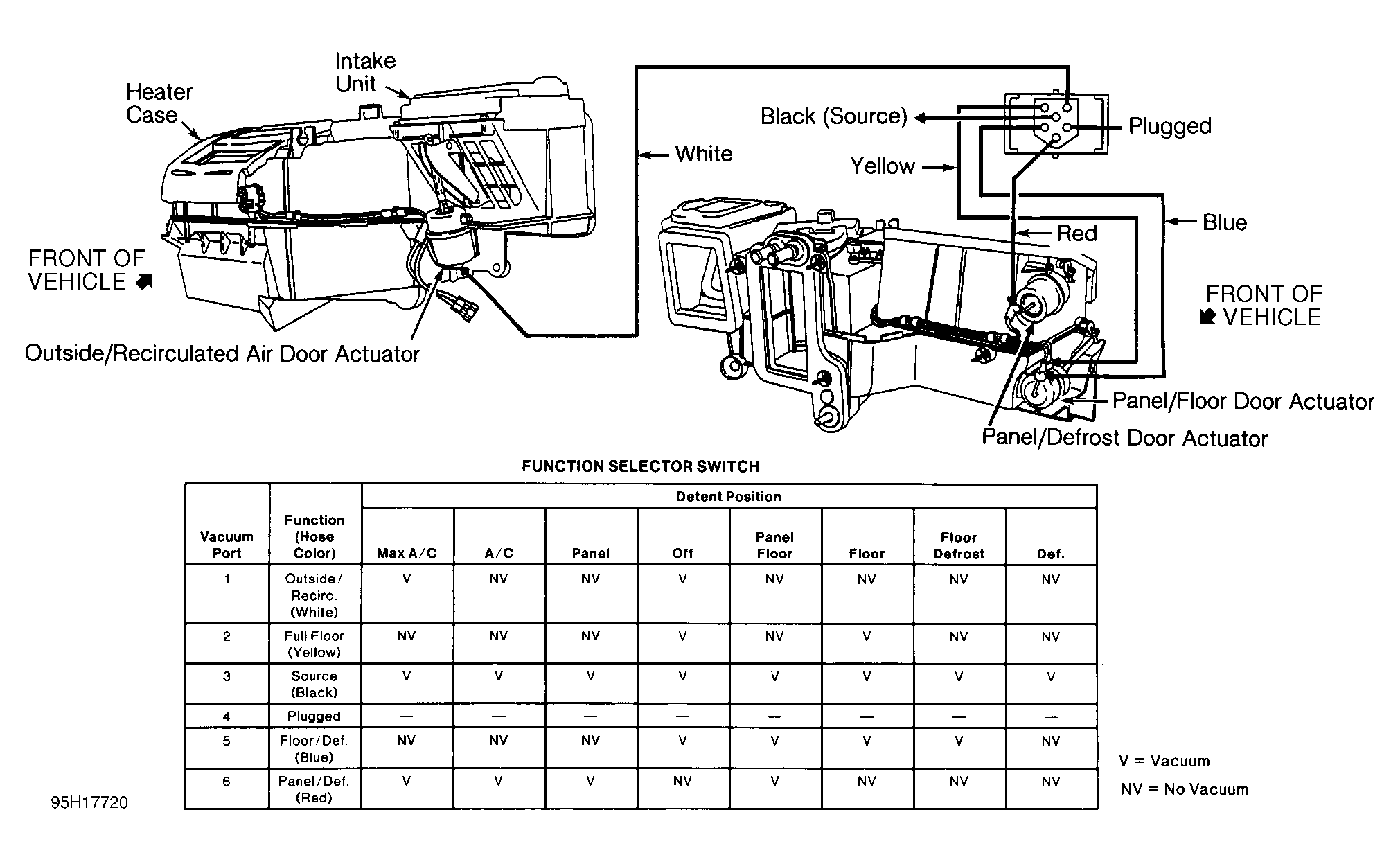

Fig 1: Automatic A/C-Heater System Vacuum Diagram (Explorer)
G95H17720Courtesy of FORD MOTOR CO.
