Check For Air In Fuel System
WARNING: This page does not describe the selected car, but rather 16 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

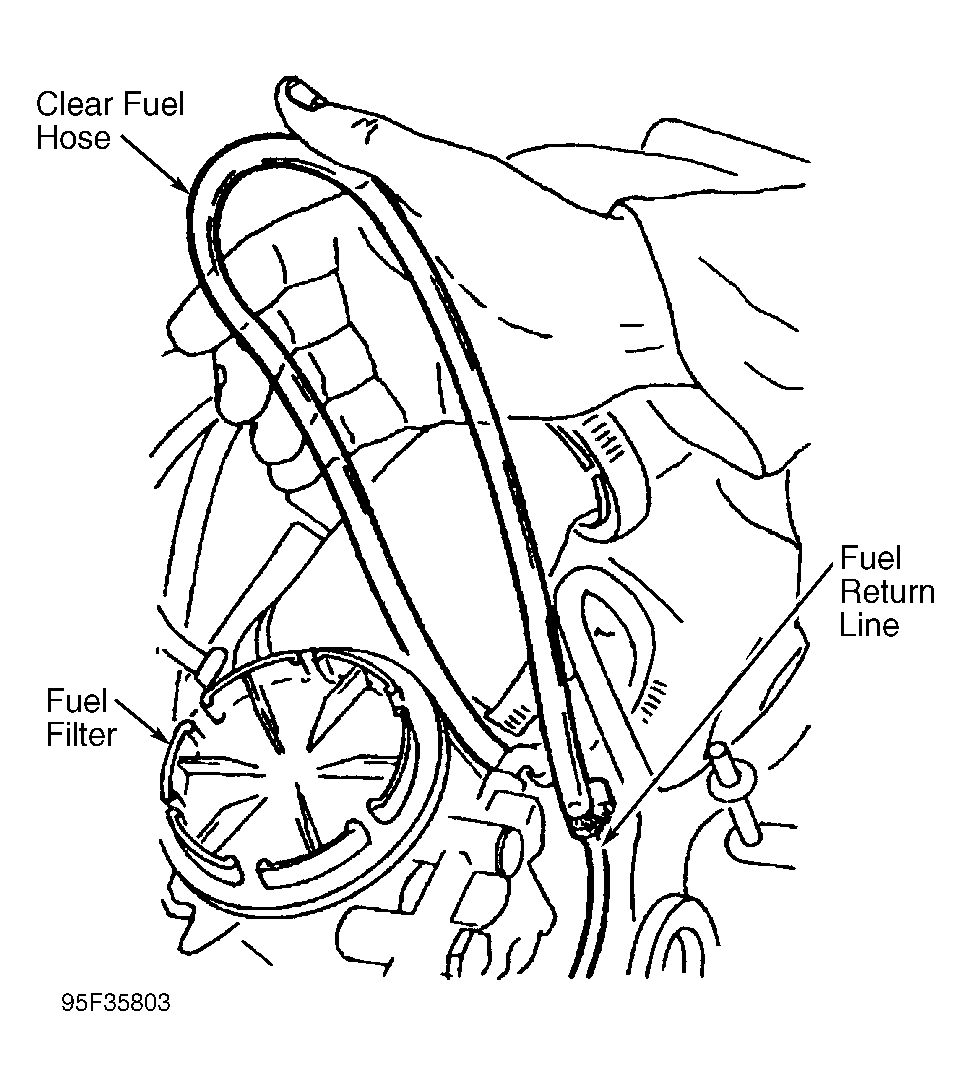

- Disconnect fuel return hose at fuel filter. Install a clear fuel hose between fuel return hose and fuel return hose fitting at fuel filter. Loop hose at a point higher then fuel filter. See Fig 1. While observing fuel line, start and run engine for about 5 minutes. Fuel should be free of air.

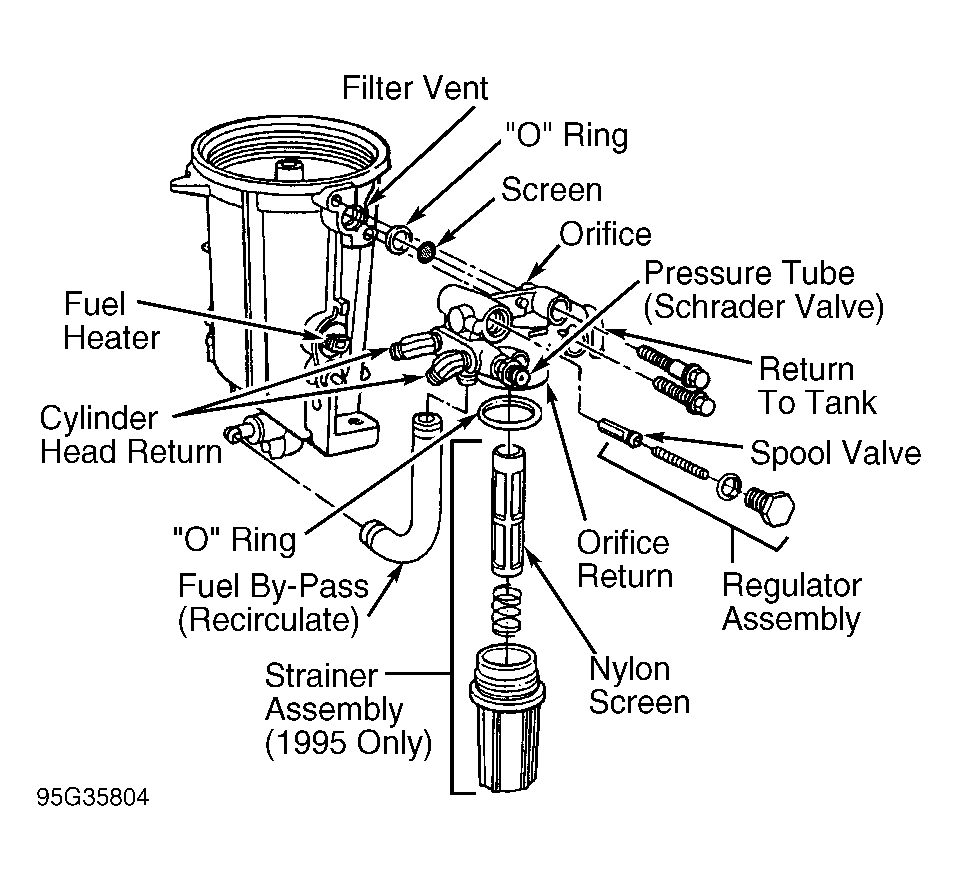

- If fuel is foamy, check for an air leak in fuel lines between fuel pump and fuel tank. Repair as necessary. If no fuel flow exists, remove fuel regulator block, taking care not to damage "O" ring. Inspect fuel strainer assembly (1995 models only) and fuel return orifice screen for debris. Clean as necessary. See Fig 2.
