KOEO Injector Electrical Self-Test
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

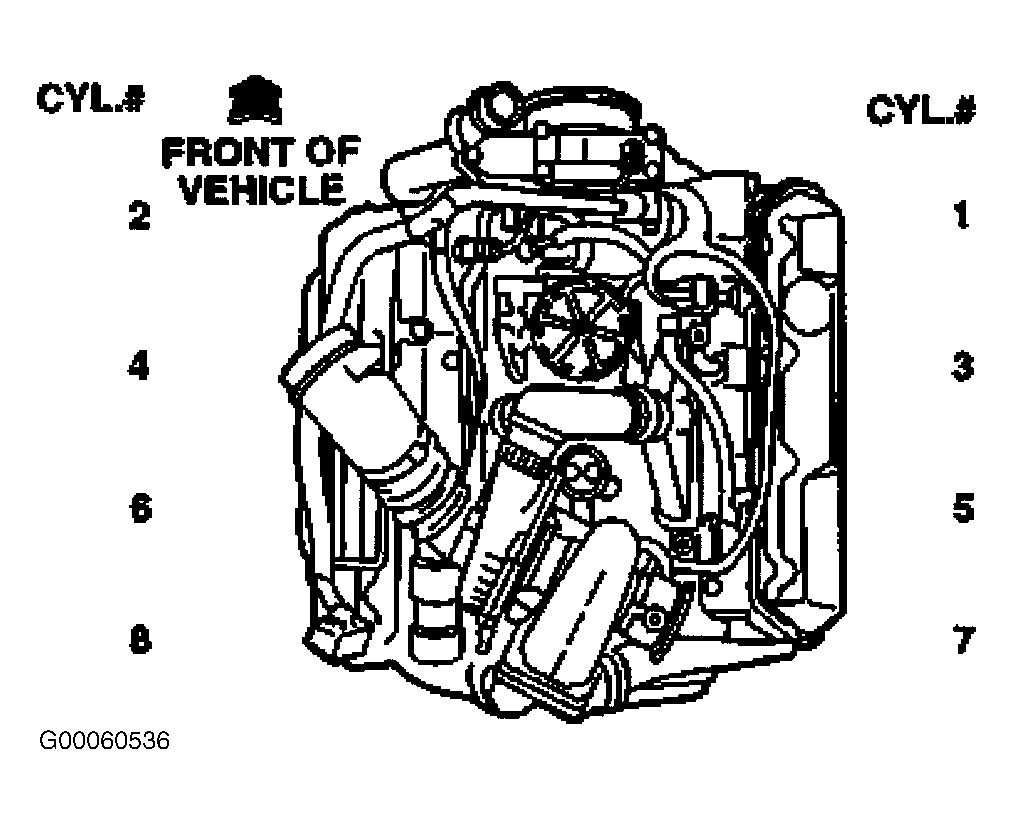

KOEO injector electrical self-test determines if injector solenoids and valves are operating, by buzzing and providing DTCs and audible feedback. DTCs will be output and displayed in KOEO SELF TEST. All injectors will buzz together for approximately 2 seconds, then each injector will buzz for about one second in numerical order (1-8). See Fig 1.
