Pinpoint Test P: Brake Pressure Applied Switch: Description
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

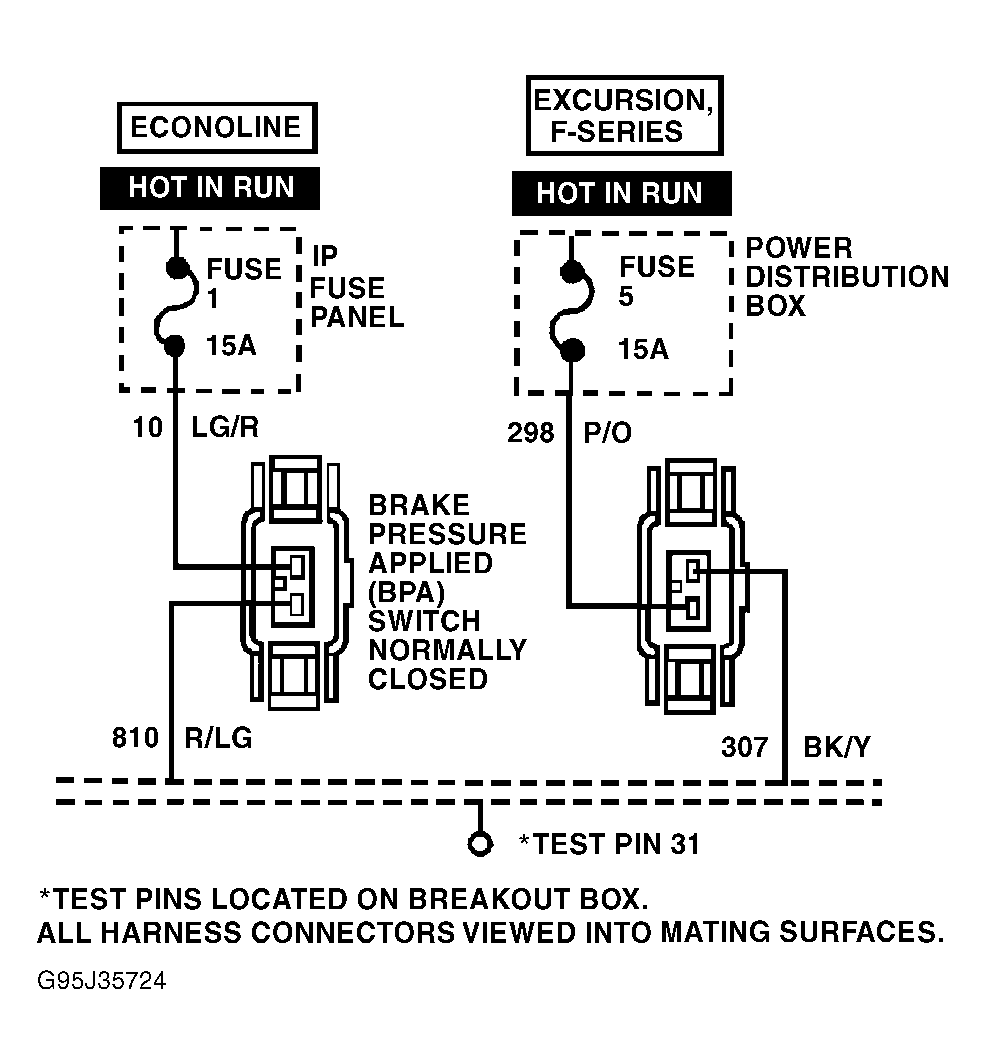

Perform this test when directed here by QUICK TEST. Brake Pressure Applied (BPA) switch is a pressure switch that senses brake pressure and is redundant with the Brake On/Off (BOO) switch to provide a backup to deactivate cruise control. DTC 0571 indicates brake switch "A" circuit malfunction.
