Pinpoint Test N: Clutch Pedal Position Switch: Description
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

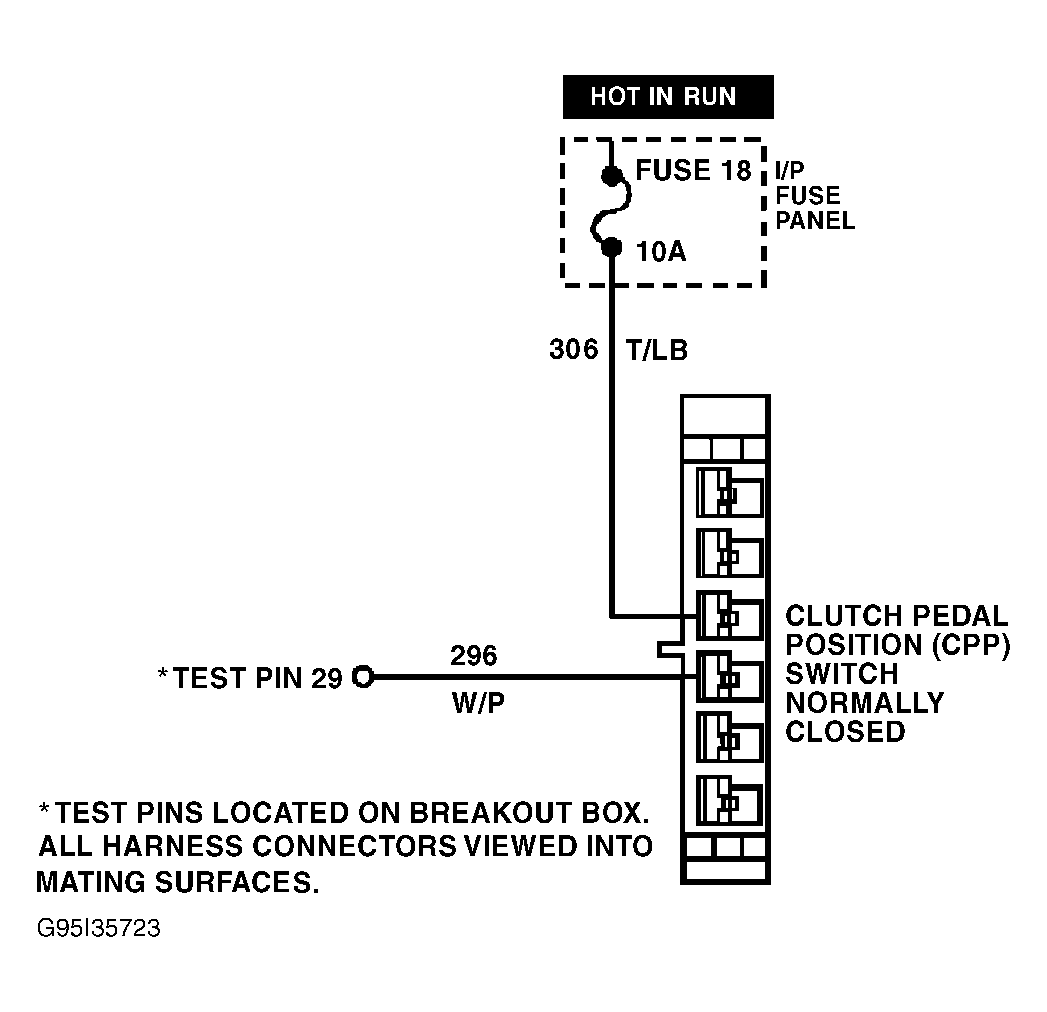

Clutch Pedal Position (CPP) switch detects when clutch pedal is depressed (manual transmissions) to disable speed control system and PTO/raised-idle mode. CPP switch actuation occurs as clutch is initially depressed prior to disengaging transmission at top of travel. DTC 0704 indicates CPP switch input circuit malfunction.
Perform this test when directed here by QUICK TEST. This PINPOINT TEST is intended to diagnose:
- Clutch Pedal Position (CPP) switch.
- Wiring harness circuits; (CPP and SIG RTN).
- Powertrain Control Module (PCM).
