Pinpoint Test F: Speed Control Command Switch: Description
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

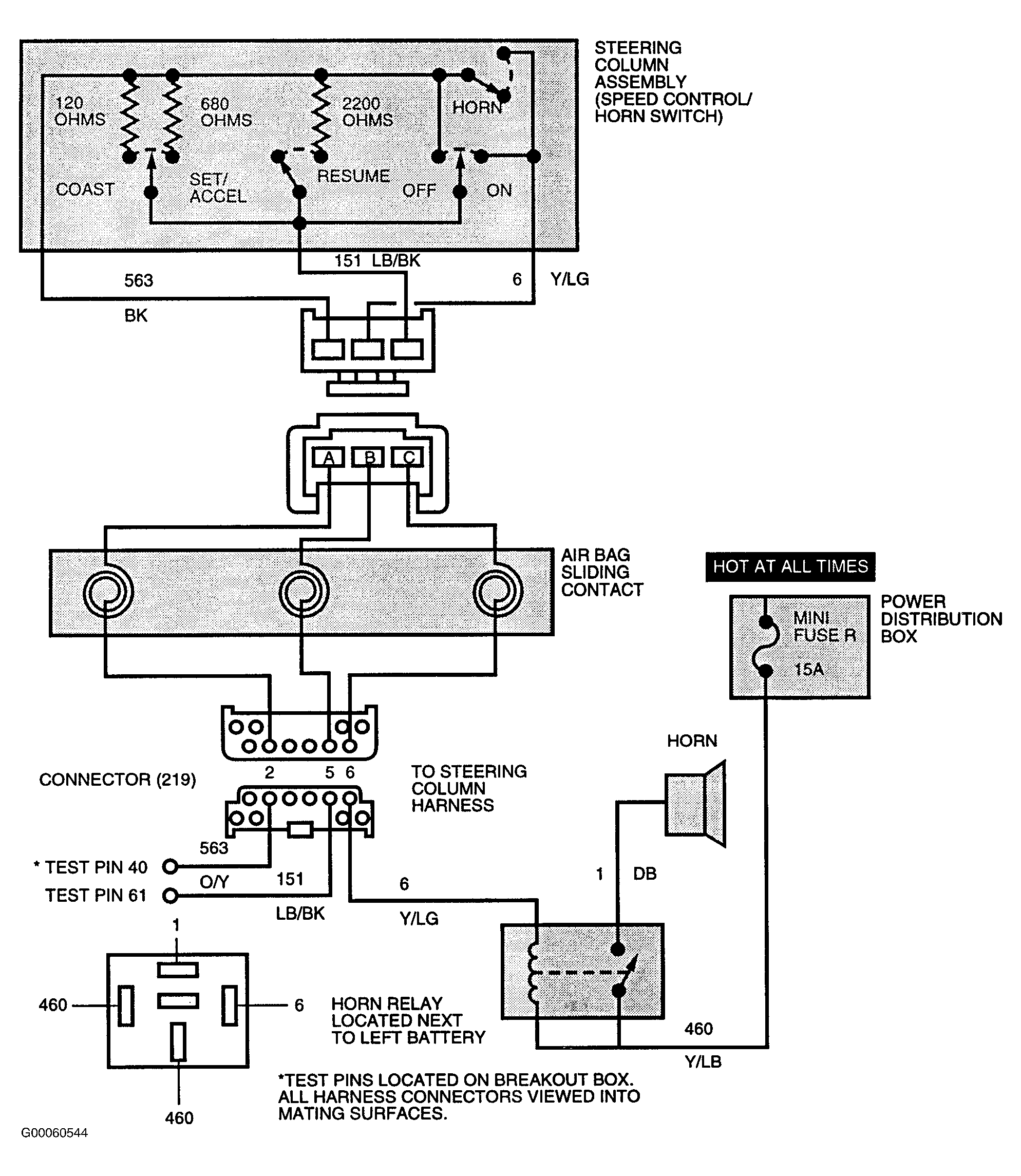

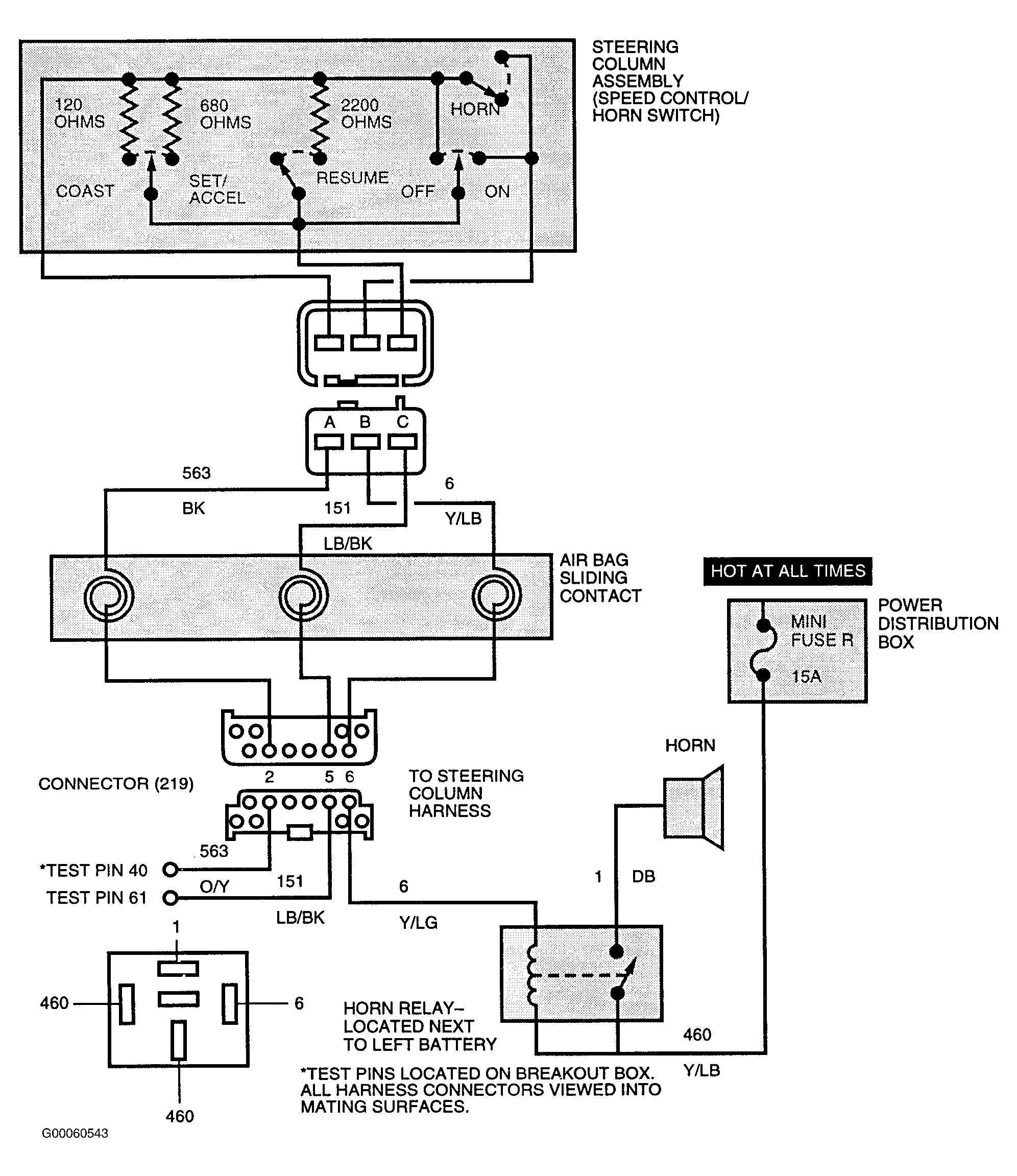

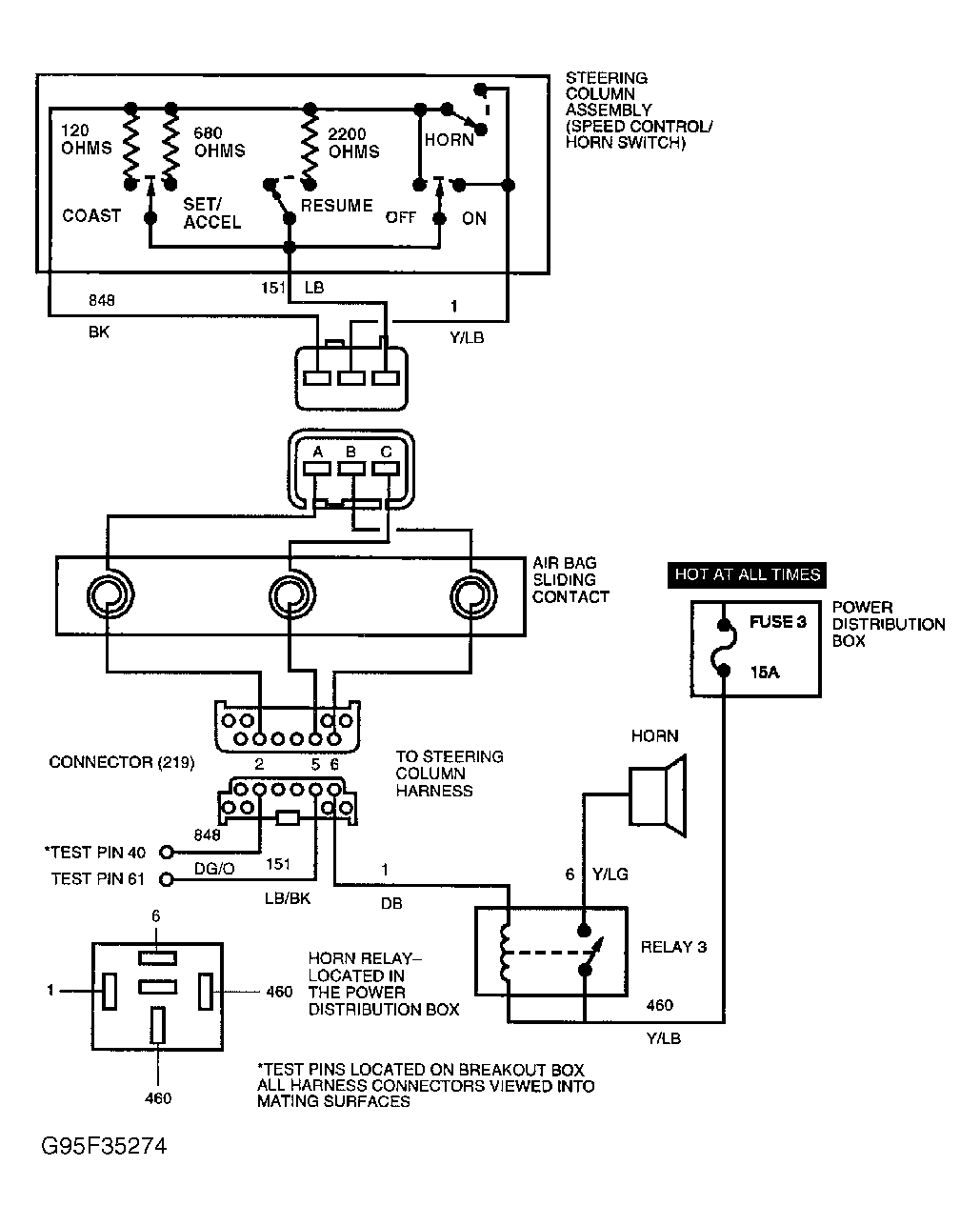

Speed control function is integrated in PCM. Speed Control Command Switches (SCCS) are momentary switches which are located on face of steering wheel. They consist of one ON-OFF toggle switch and one three-position SET/ACCEL, COAST and RESUME switch. These switches, when depressed, select one of several resistance values to send to PCM to select speed control functions.
- DTC 0565
Indicates speed control ON. Not pressed - KOER Switch Test. - DTC 0566
Indicates speed control OFF. Not pressed - KOER Switch Test. - DTC 0567
Indicates speed control RESUME. Not pressed - KOER Switch Test. - DTC 0568
Indicates speed control SET. Not pressed - KOER Switch Test. - DTC 0569
Indicates speed control COAST. Not pressed - KOER Switch Test.
Perform this test when directed here by QUICK TEST or by another pinpoint test. This PINPOINT TEST is intended to diagnose the following:
- Speed control switches.
- Wiring harness circuits; (SCCS).
- Powertrain Control Module (PCM).
