Pinpoint Test Am: Transmission Range Sensor: Description
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Perform this test only when directed here by QUICK TEST. To prevent replacing good components, be aware the following non-EEC areas may be at fault:
- Transmission linkage and internal components.
- Electrical (alternator, battery, add-on devices, etc.).
This test is not intended to diagnose transmission. This test is intended to diagnose:

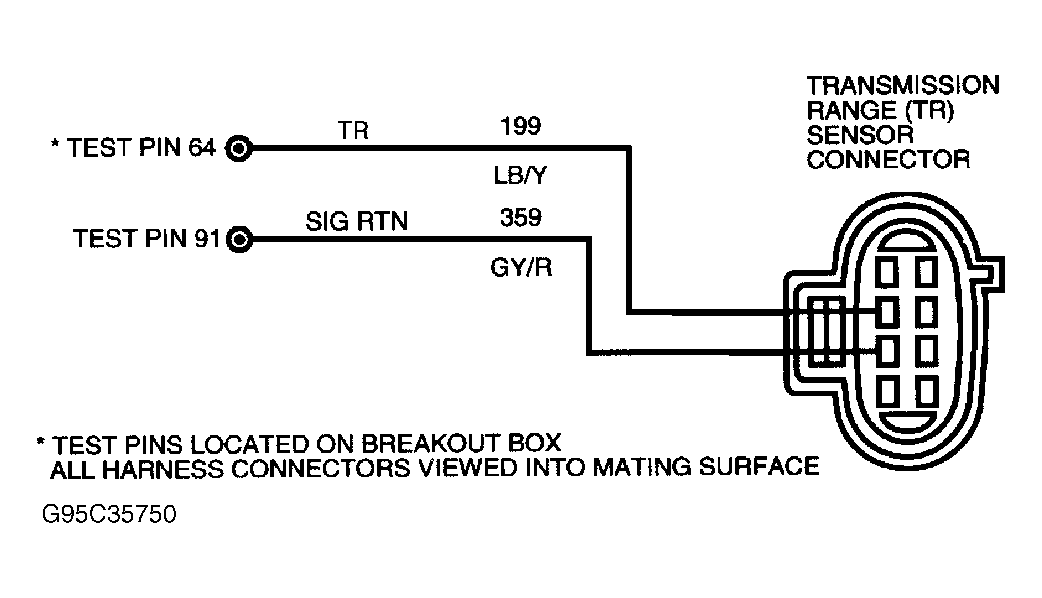

- Wiring harness circuits (TR and SIG RTN).
- Powertrain Control Module (PCM).
