Perform this test only when directed here by QUICK TEST. To prevent replacing good components, be aware the following non-EEC areas may be at fault:
- Engine condition (compression, cam timing, valves, etc.).
- Charging system or battery.
- Transmission linkage, internal components or cooling.
This test is not intended to diagnose internal transmission. This test is intended to diagnose:
- Wiring harness circuits (TCC, CCS, EPC, SS1, SS2, and VPWR).
- Faulty Powertrain Control Module (PCM).
- DTC 0741 indicates Torque Converter Clutch (TCC) circuit performance.
- DTC 0750 indicates Shift Solenoid 1 (SS1) malfunction.
- DTC 0755 indicates Shift Solenoid 2 (SS2) malfunction.
- DTC 1746 indicates Electronic Pressure Control (EPC) solenoid open circuit.
- DTC 1747 indicates EPC solenoid short circuit.
- DTC 1748 indicates EPC malfunction.
- DTC 1754 indicates Coast Clutch Solenoid (CCS) malfunction.

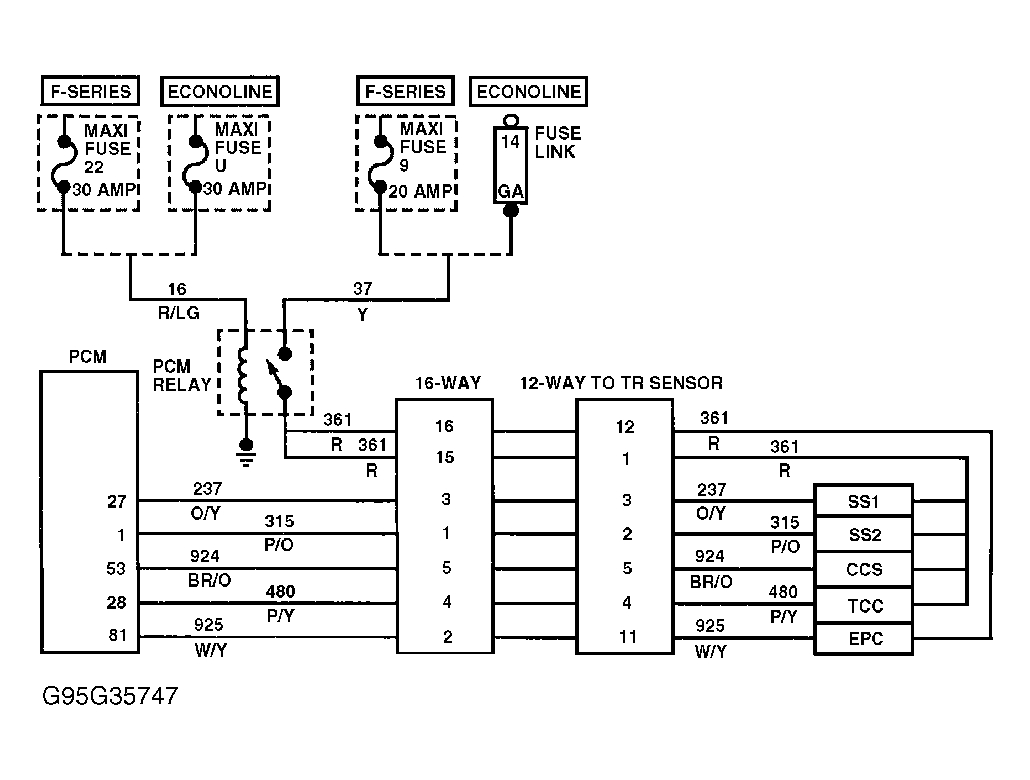

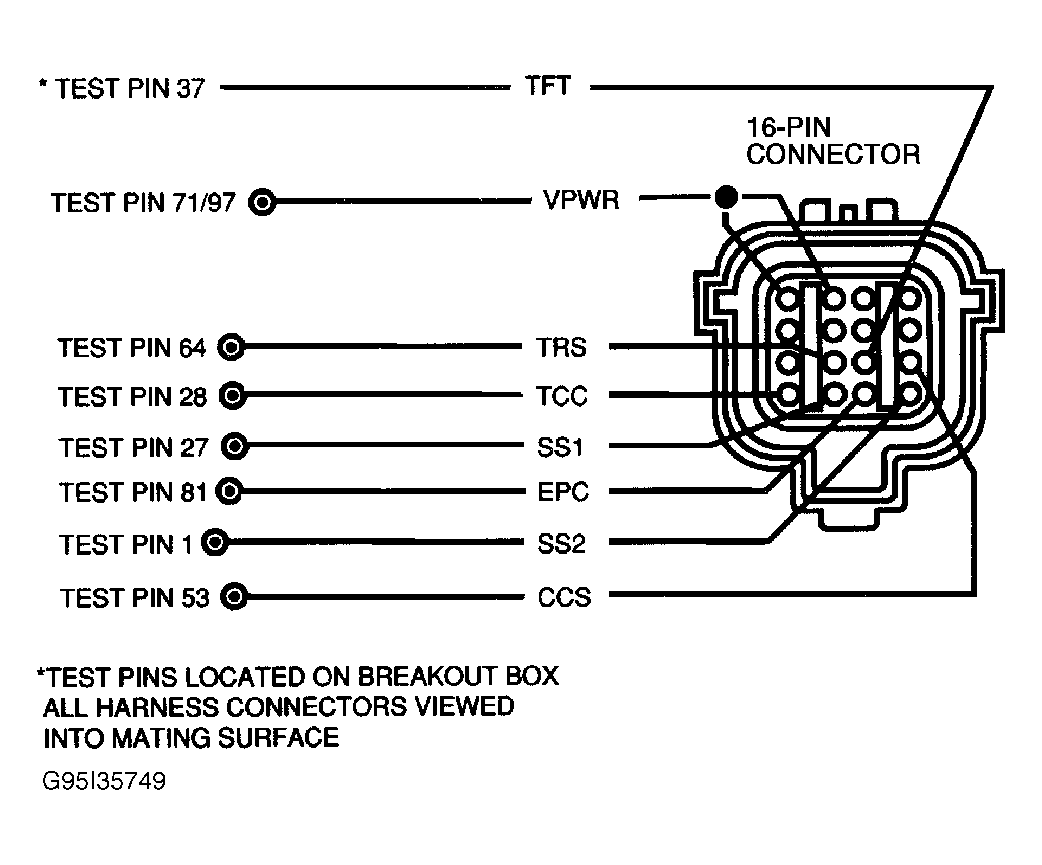

TRANSMISSION & PCM SOLENOID SIGNAL TERMINAL IDENTIFICATION
| Solenoid | Transmission Connector Terminal No. | PCM Signal Output Terminal No. |
|---|---|---|
| CCS | 5 | 53 |
| EPC | 11 | 81 |
| SS1 | 3 | 27 |
| SS2 | 2 | 1 |
| TCC | 4 | 28 |
