Pinpoint Test AE: Air Conditioning: Description

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Perform this test when directed here by QUICK TEST. This pinpoint test is intended to diagnose:

A/C clutch.
Wiring harness circuits for A/C.
Powertrain Control Module (PCM).

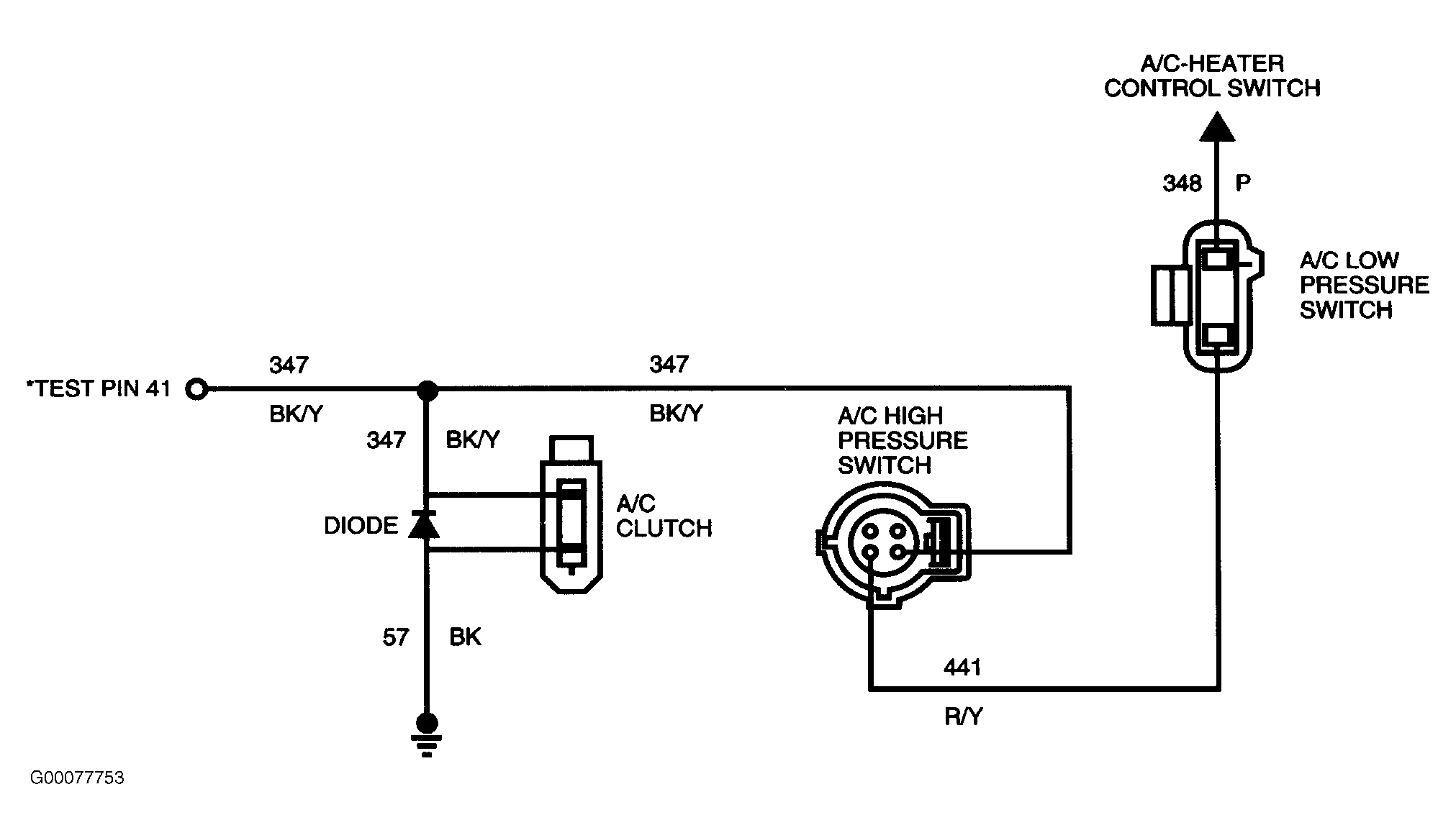

Fig 1: Identifying A/C Pressure Switch Circuit (Econoline)

Courtesy of FORD MOTOR CO.

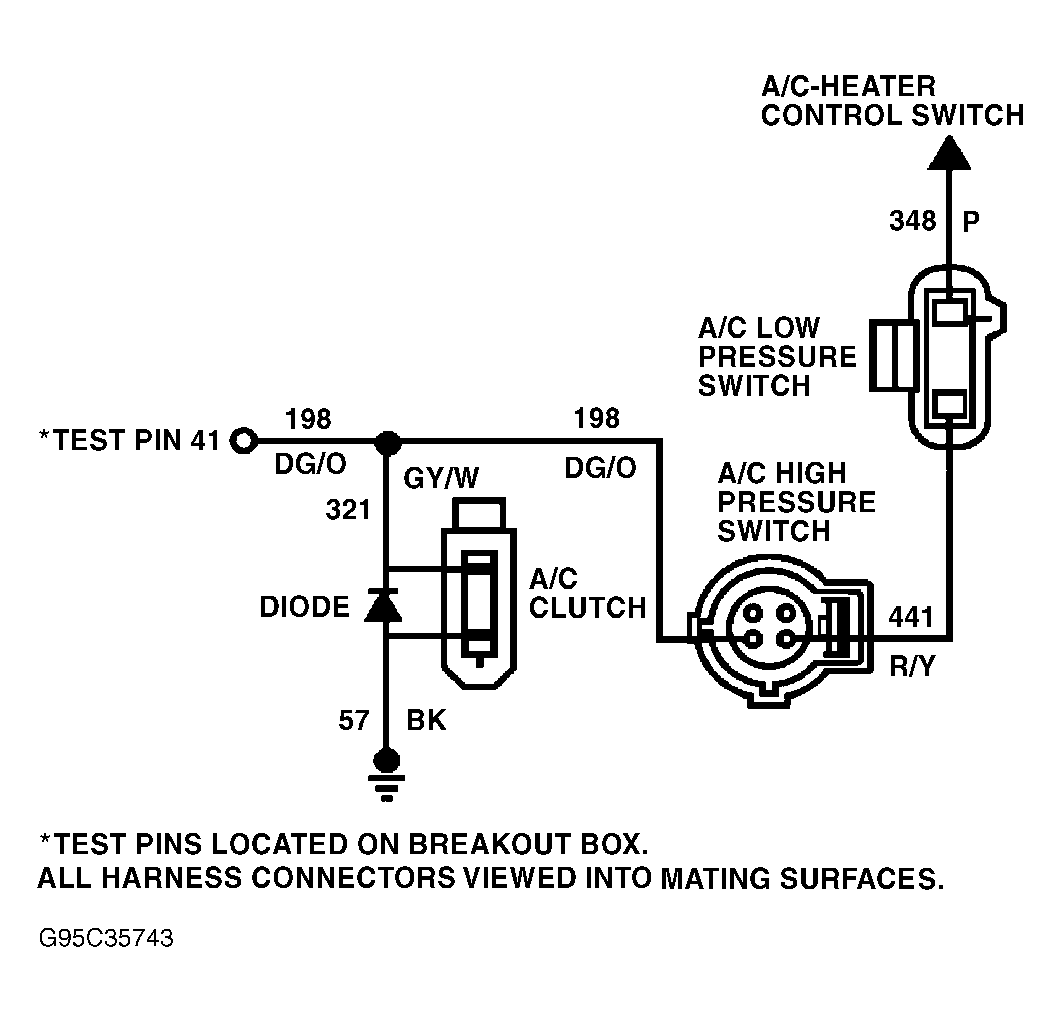

Fig 2: Identifying A/C Pressure Switch Circuit (Pickup)

Courtesy of FORD MOTOR CO.
