Pinpoint Test A: Vehicle Battery: Description
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1996 Ford RV Cutaway, 1996 Ford Pickup, 1996 Ford F-Super Duty, 1996 Ford Econoline, and 1996 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

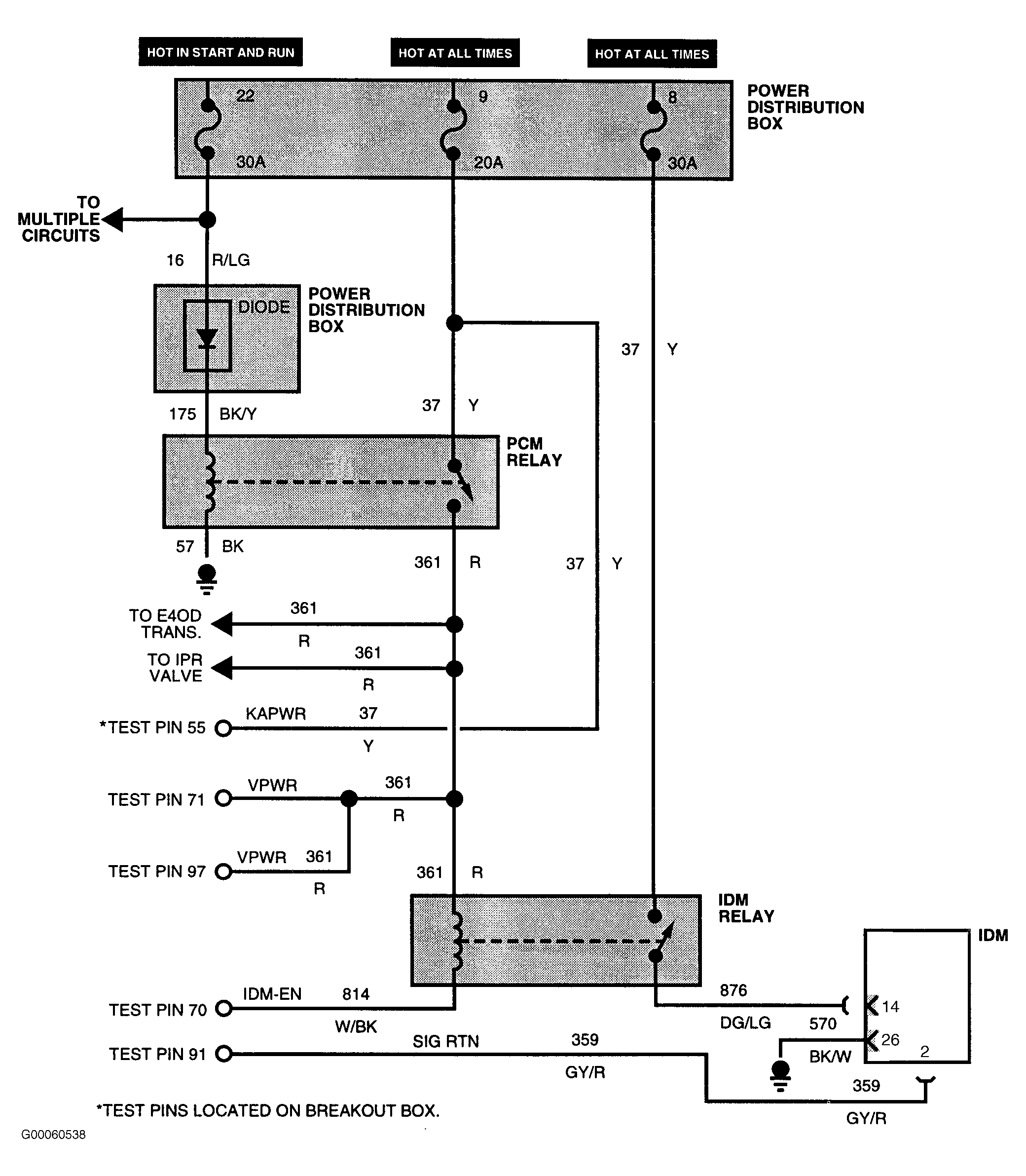

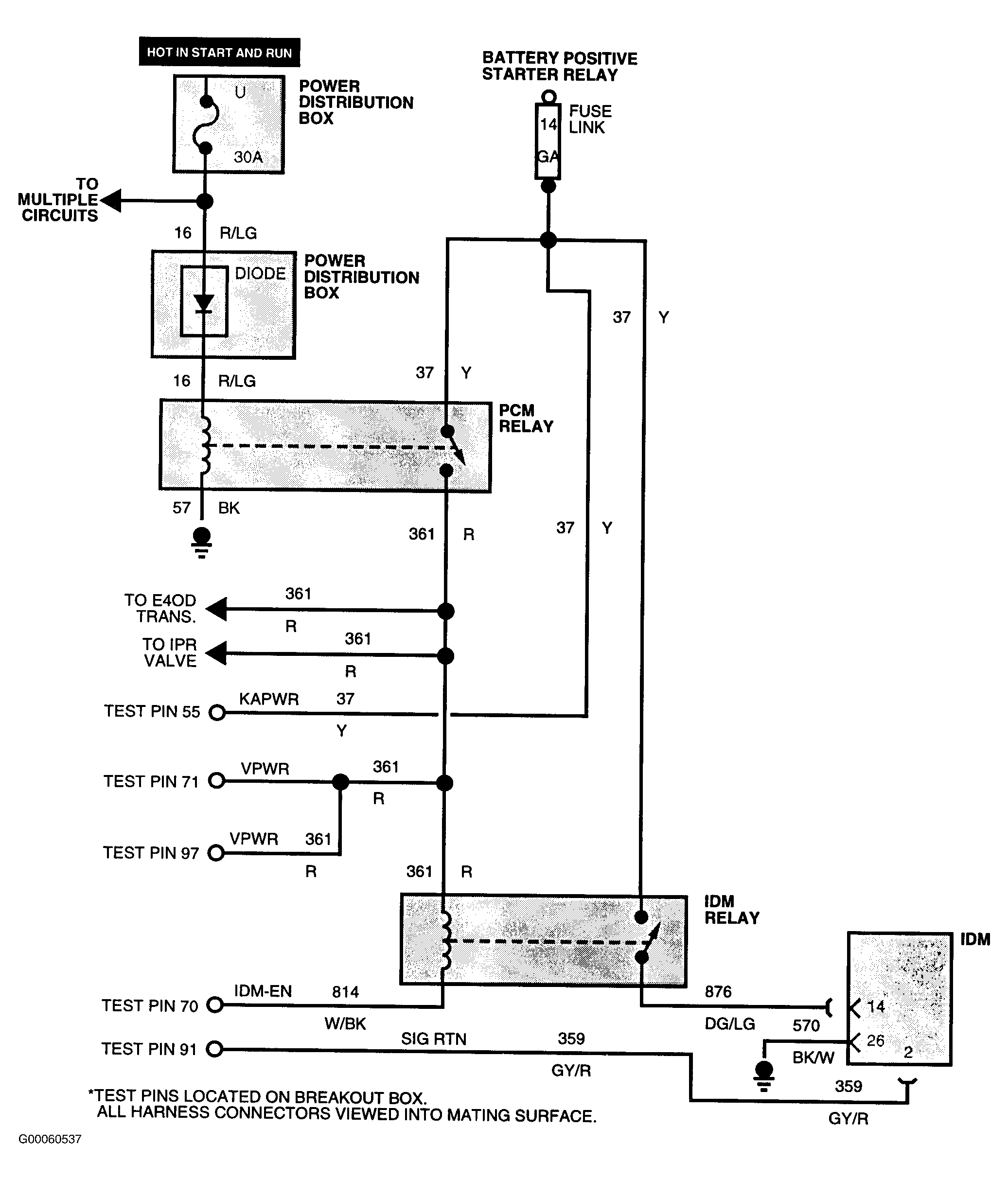

Enter this PINPOINT TEST only if directed here from QUICK TEST , another pinpoint test or symptom test. This test is only intended to diagnose:
- Closed loop power relay.
- Powertrain Control Module (PCM).
- Battery positive voltage (B+).
- Wiring harness circuits (SIG RTN, PWR GND, KAPWR and VPWR).
To prevent replacement of good components, be aware the following non-EEC related areas and components may be cause of problem:
- Battery cables.
- Ignition switch.
- Voltage regulator.
- Ground straps.
- Alternator.
DTC 0560 indicates system voltage malfunction. DTC 0562 indicates system voltage low. DTC 0563 indicates system voltage high.
