Electronic Engine Control (EEC) System

WARNING: This page is about a different car, the 1995 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

The EEC system monitors and regulates A/C system. EEC system, working through Wide Open Throttle (WOT) relay, disengages A/C clutch under the following conditions: immediately after start-up, wide open throttle, coolant temperature approaching overheating condition and engine idle RPM approaching stall speed.

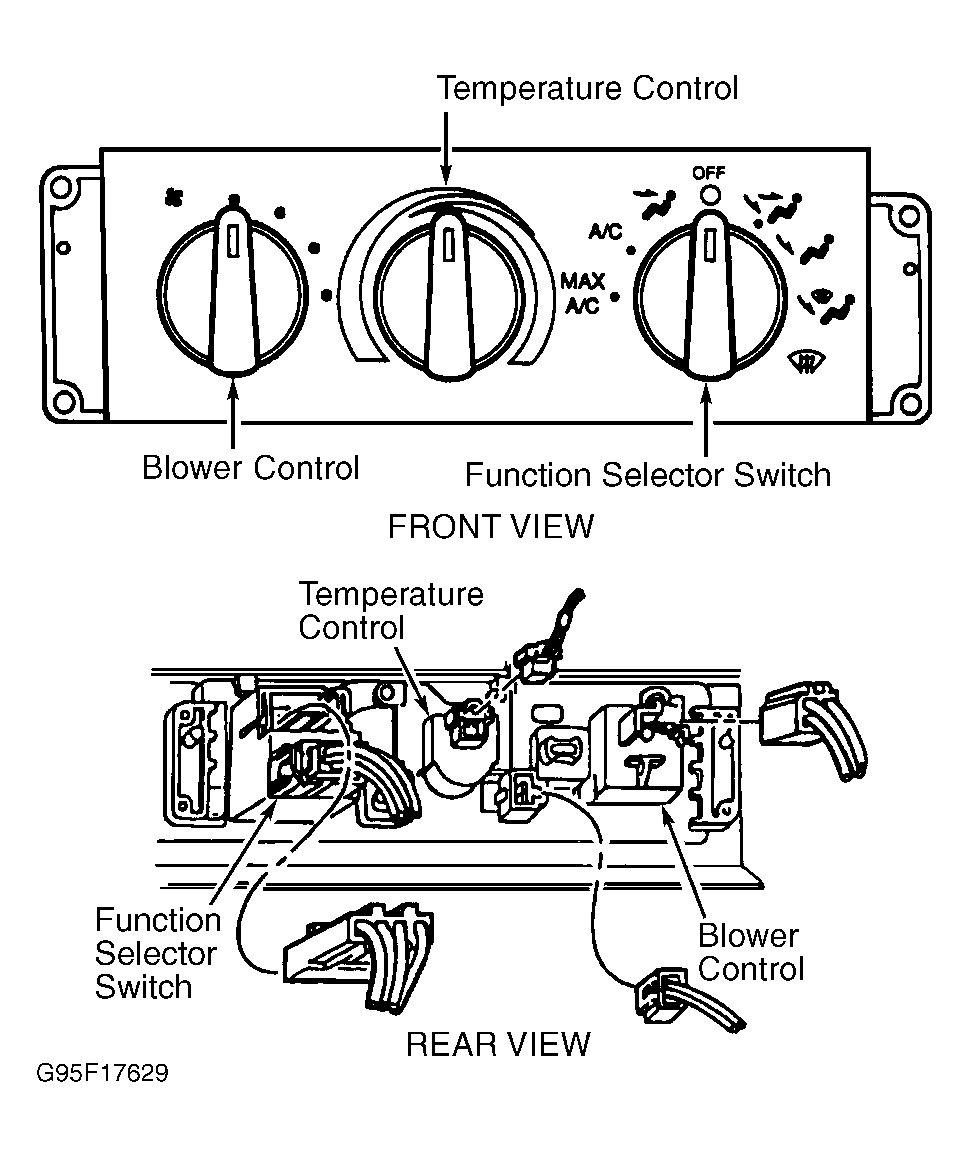

Fig 1: Identifying Control Panel Assembly
G95F17629Courtesy of FORD MOTOR CO.
