Removal & Installation: Accumulator-Drier: Removal

WARNING: This page is about a different car, the 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Cab & Chassis, and 1995 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.

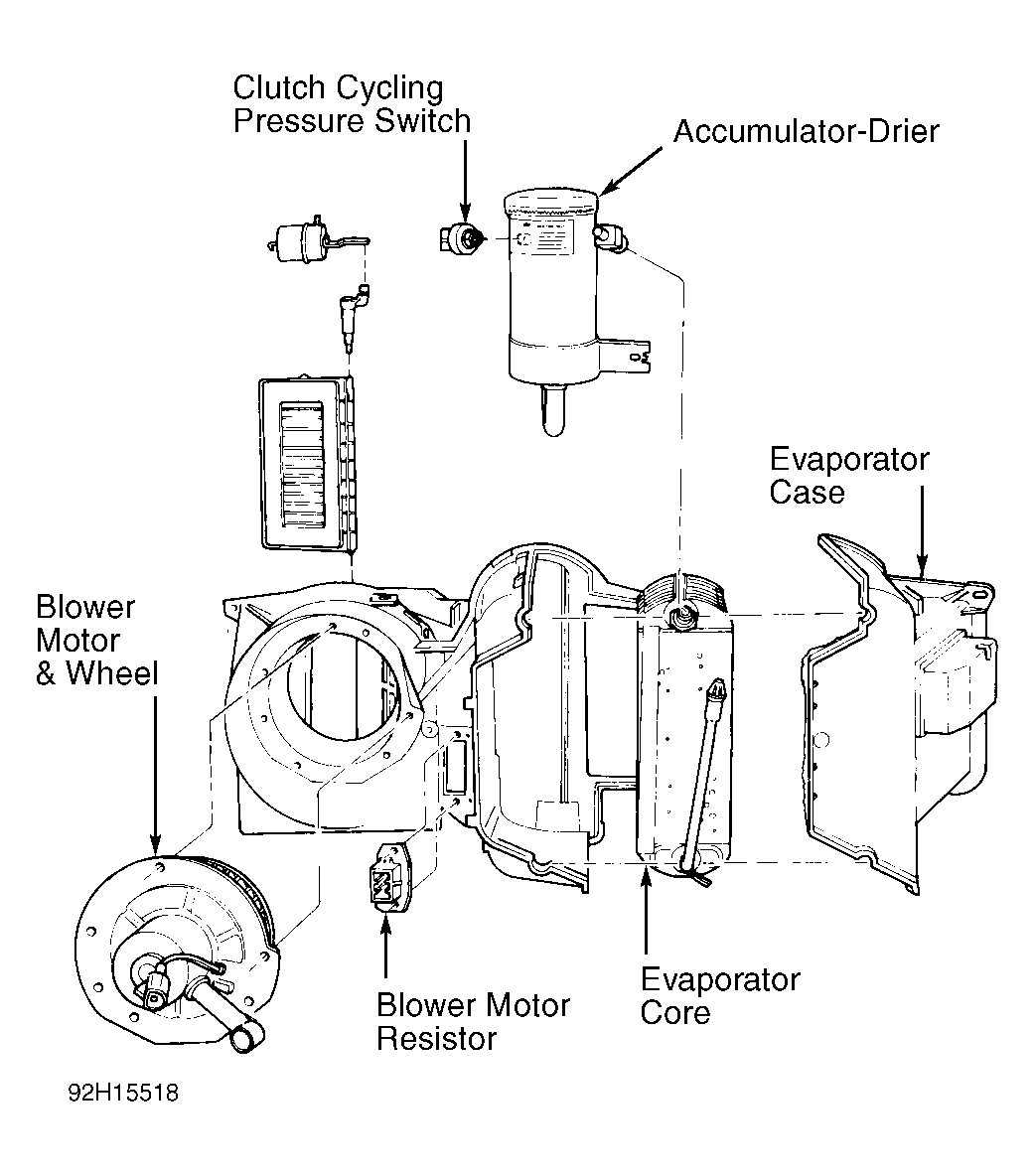

  1. Disconnect negative battery cable. Discharge A/C system using approved refrigerant recovery/recycling equipment. Disconnect electrical connector from pressure switch. Unscrew pressure switch from accumulator-drier. See Figure. Disconnect suction hose from accumulator-drier, and plug opening.
  2. Using 2 wrenches, loosen fitting that connects accumulator-drier to evaporator core. Remove mounting straps-to-mounting bracket screws. Remove accumulator-drier from evaporator core. Remove straps from accumulator-drier.
