Vacuum Hose Diagram(S)

WARNING: This page is about a different car, the 1995 Ford Aerostar. However, it is still accessible from the selected car via links, so may be relevant.

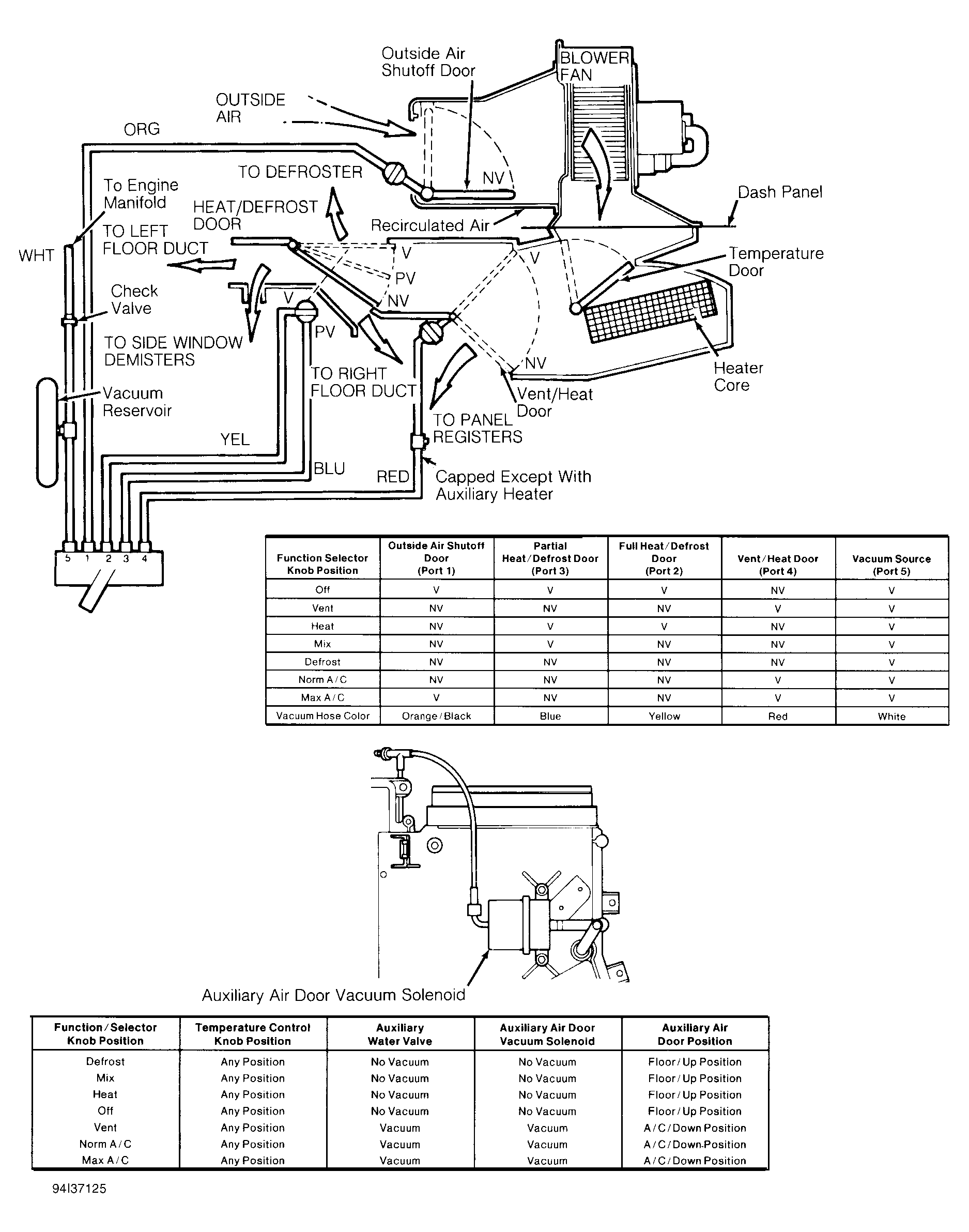

Fig 1: Manual A/C-Heater System Vacuum Diagram
G94I37125Courtesy of FORD MOTOR CO.
