7.5L V8

WARNING: This page is about a different car, the 1995 Ford Pickup, 1995 Ford F-Super Duty, and 1995 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

VACUUM DIAGRAM INDEX - 7.5L V8

Model

Application

Trans.

A/C

NonA/C

Calibration

Fig.No.

Pickup⁽¹⁾

Calif./Fed.

Auto./Man.⁽²⁾

⁽³⁾

4-97A-R00

Fig 1

Pickup⁽¹⁾

Calif./Fed.

Auto./Man.⁽²⁾

⁽³⁾

4-97B-R11

Fig 2

Pickup⁽¹⁾

Calif./Fed.

Auto./Man.⁽²⁾

⁽³⁾

4-98F-R00

Fig 1

Pickup⁽¹⁾

Calif./Fed.

Auto./Man.⁽²⁾

⁽³⁾

5-98A-R00

Fig 1

Pickup⁽¹⁾

Calif./Fed.

Auto./Man.⁽²⁾

⁽³⁾

5-98B-R00

Fig 2

Pickup⁽¹⁾

Calif./Fed.

Auto./Man.⁽²⁾

⁽³⁾

5-98E-R00

Fig 1

⁽¹⁾	Over 6000 lbs. GVWR.

⁽²⁾	M/T in F250 HD and F350.

⁽³⁾	Information not available.

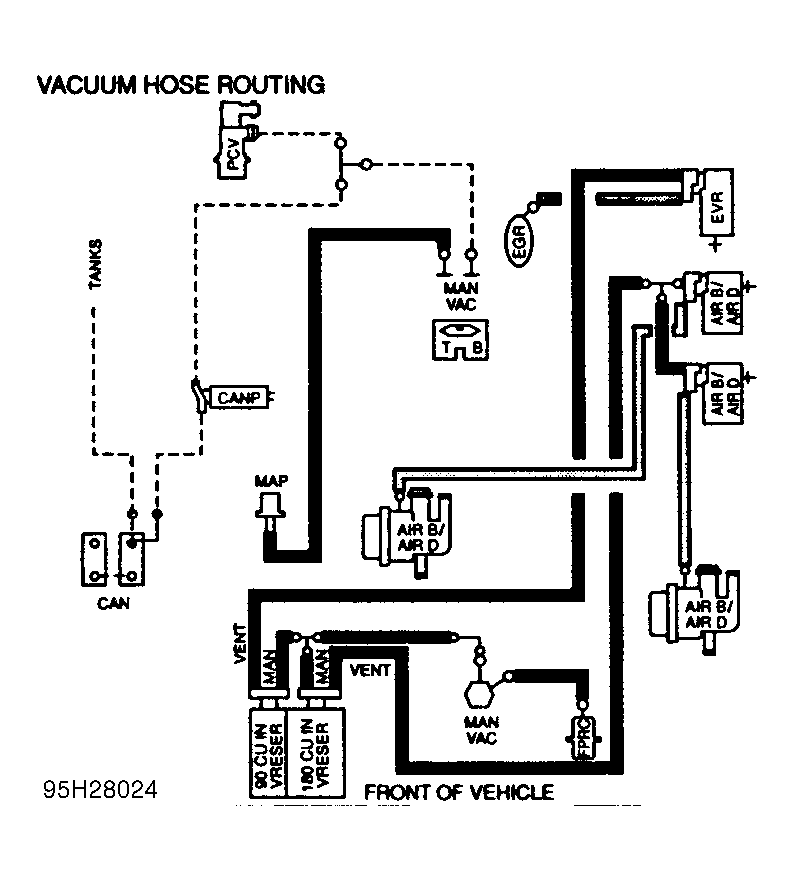

Fig 1: 7.5L V8 (See Index for Calibration Numbers)

Courtesy of FORD MOTOR CO.

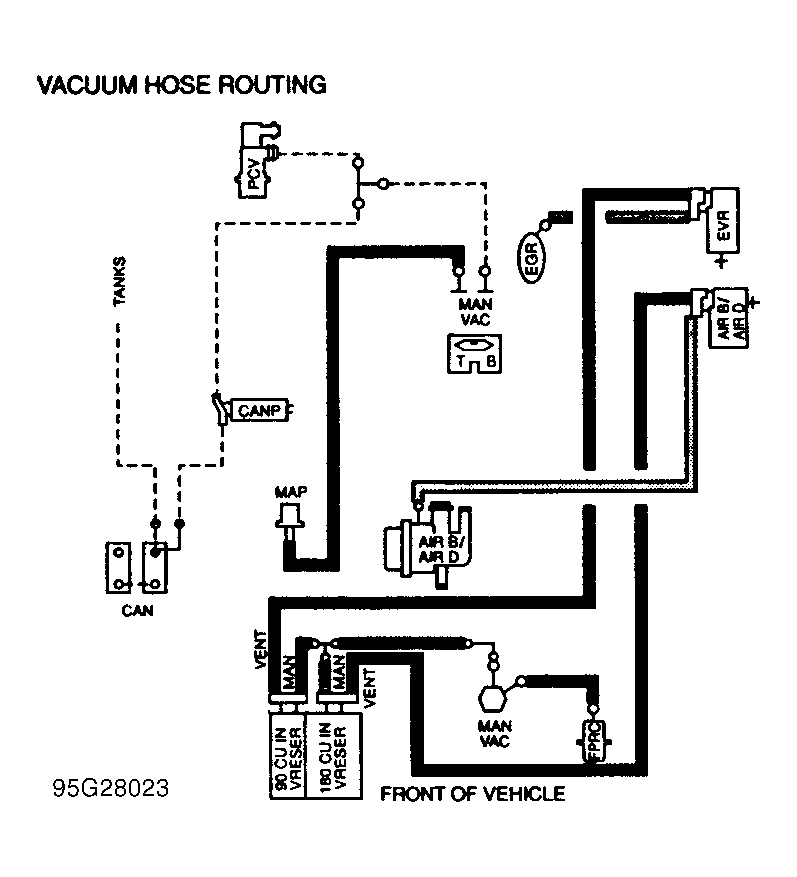

Fig 2: 7.5L V8 (See Index for Calibration Numbers)

Courtesy of FORD MOTOR CO.
