5.8L V8

WARNING: This page is about a different car, the 1995 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.
VACUUM DIAGRAM INDEX - 5.8L V8

Model Application Trans. A/C NonA/C Calibration Fig.No.
Bronco Calif./Fed. Auto./Man.(1) X X 4-75A-R10 5
Bronco Calif./Fed. Auto./Man.(1) X X 4-76C-R10 5
Bronco Calif./Fed. Auto./Man.(1) X X 5-64G-R00 6
Bronco Calif./Fed. Auto./Man.(1) X X 5-64K-R00 7
Bronco Calif./Fed. Auto./Man.(1) X X 5-64S-R00 8
Bronco Calif./Fed. Auto./Man.(1) X X 5-64U-R00 8
Bronco Calif./Fed. Auto./Man.(1) X X 5-64S-R10 8
Bronco Calif./Fed. Auto./Man.(1) X X 5-76A-R05 5
Bronco Calif./Fed. Auto./Man.(1) X X 5-76P-R05 8
Bronco Calif./Fed. Auto./Man.(1) X X 5-76P-R10 8
Bronco Calif./Fed. Auto./Man.(1) X X 5-76S-R05 8
Bronco Calif./Fed. Auto./Man.(1) X X 5-76T-R05 8
Bronco Calif./Fed. Auto./Man.(1) X X 5-76T-R10 8
(1) M/T in F250 HD and F350.

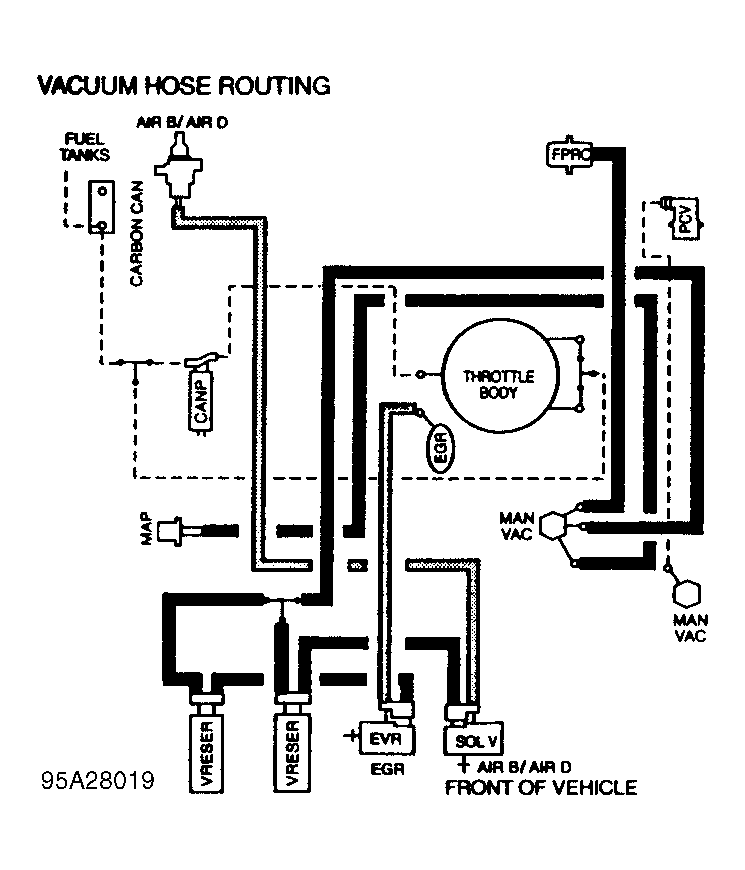

Fig 1: 5.8L V8 (See Index for Calibration Numbers)
G95A28019Courtesy of FORD MOTOR CO.
Fig 2: 5.8L V8 (See Index for Calibration Numbers)
G95D28020Courtesy of FORD MOTOR CO.

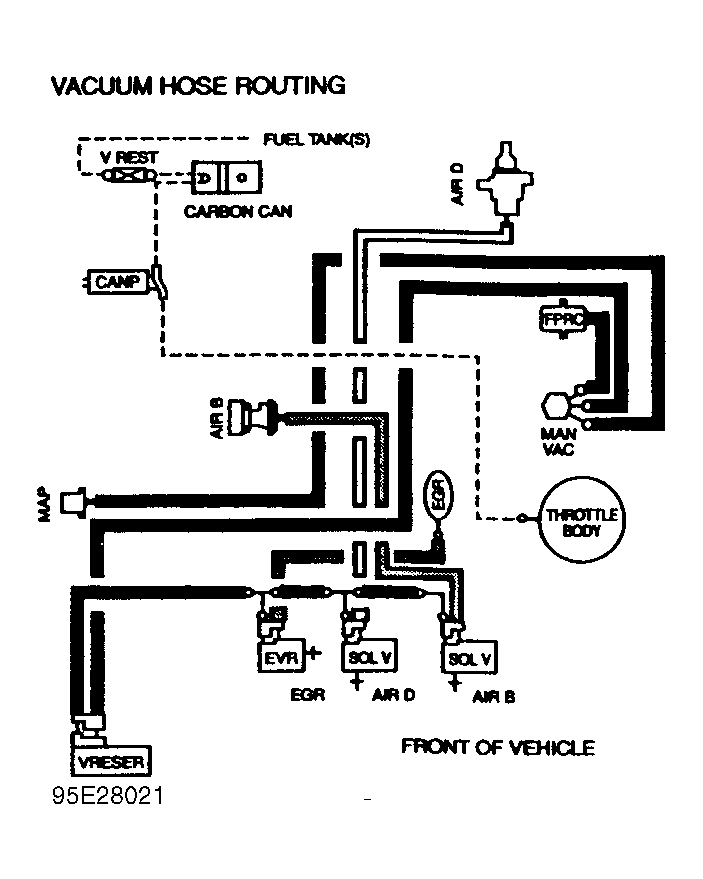

Fig 3: 5.8L V8 (See Index for Calibration Numbers)
G95E28021Courtesy of FORD MOTOR CO.
Fig 4: 5.8L V8 (See Index for Calibration Numbers)
G95F28022Courtesy of FORD MOTOR CO.
