5.0L V8

WARNING: This page is about a different car, the 1995 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.

VACUUM DIAGRAM INDEX - 5.0L V8

Model

Application

Trans.

A/C

NonA/C

Calibration

Fig.No.

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-53E-R00

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-53F-R00

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54E-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54J-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54K-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54T-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54R-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54L-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54M-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54P-R10

Bronco⁽¹⁾

Calif./Fed.

Auto./Man.

4-54Q-R10

⁽¹⁾	Over 3450 lbs. Curb Weight.

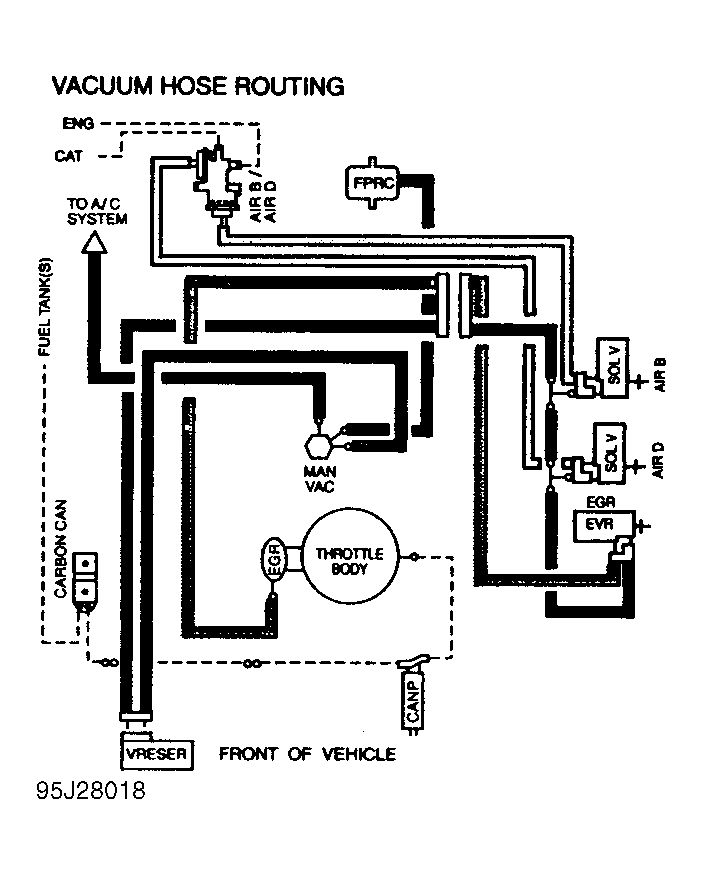

Fig 1: 5.0L V8 (See Index for Calibration Numbers)

Courtesy of FORD MOTOR CO.

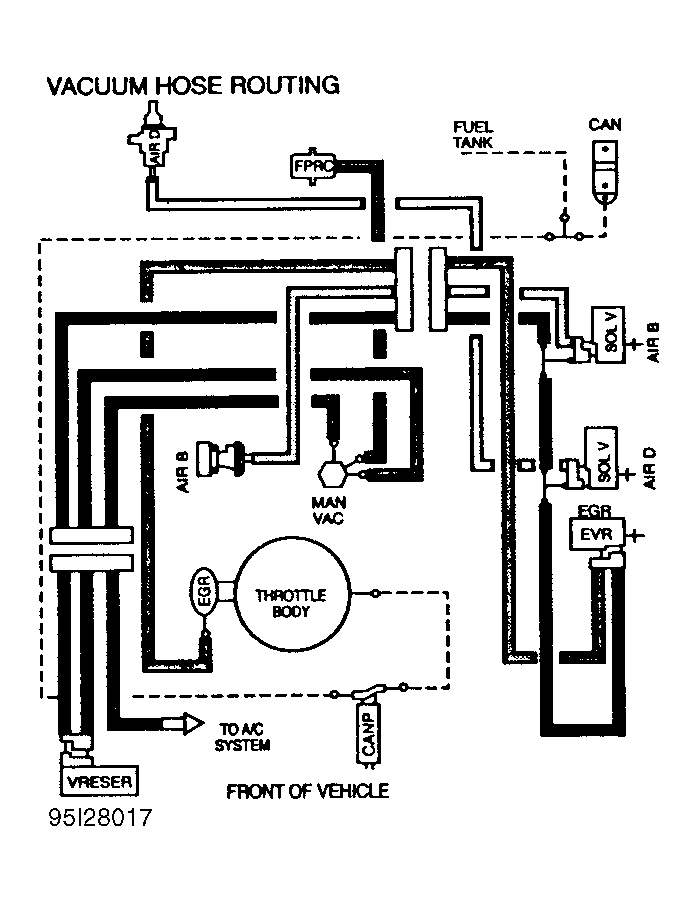

Fig 2: 5.0L V8 (See Index for Calibration Numbers)

Courtesy of FORD MOTOR CO.

Fig 3: 5.0L V8 (See Index for Calibration Numbers)

Courtesy of FORD MOTOR CO.
