Diagnostic Aids

WARNING: This page is about a different car, the 1995 Ford Explorer and 1995 Ford Aerostar. However, it is still accessible from the selected car via links, so may be relevant.

Circuits are identified in all capital letters (acronyms). For example, Profile Ignition Pick-Up is identified as PIP. Manufacturer's breakout box overlay test terminals are identified by a "J" prefix. For example, J31 (PIP). J31 indicates measurement is to be taken at terminal No. 31 at the breakout box. (PIP) indicates Profile Ignition Pick-Up circuit is being checked.

When letter "I" follows circuit identification, it implies measurement is being taken at ICM. For example, J31 (PIP I). (PIP I) implies measurement is of PIP circuit at ICM. When letter "S" follows circuit identification, it implies measurement is being taken at CKP sensor. For example, J32 (CKP+ S). (CKP+ S) implies measurement is of CKP sensor positive circuit at CKP sensor. When letter "C" follows circuit identification, it implies measurement is being taken at coil. For example, J10 (C3C). (C3C) implies measurement is of C3 circuit at coil pack.

To locate appropriate test, see EI (HIGH DATA RATE) PINPOINT TEST INDEX table. Note following information noted during testing:

EI (HIGH DATA RATE) PINPOINT TEST INDEX

Result Pinpoint Test/Step
Engine Runs
Code 212 Or 226 (IDM Signal Fault At PCM) B/1
Code 213 (SPOUT Circuit Fault) C/1
Code 215, 216, 217 And/Or 232 D/1
Engine Miss E
Lack Of Power Or Poor Fuel Economy C/1
No Start
Code 211 (PIP Signal At PCM Fault) A/1
Code 212 Or 226 (IDM Signal At PCM Fault) A/1
Malfunction Indicator Light (MIL) On During Cranking A/1
No Codes A/1
Pass Code 111 A/1
Fig 1: Connecting EI System Diagnostic Cable (4.0L)
G93J76504

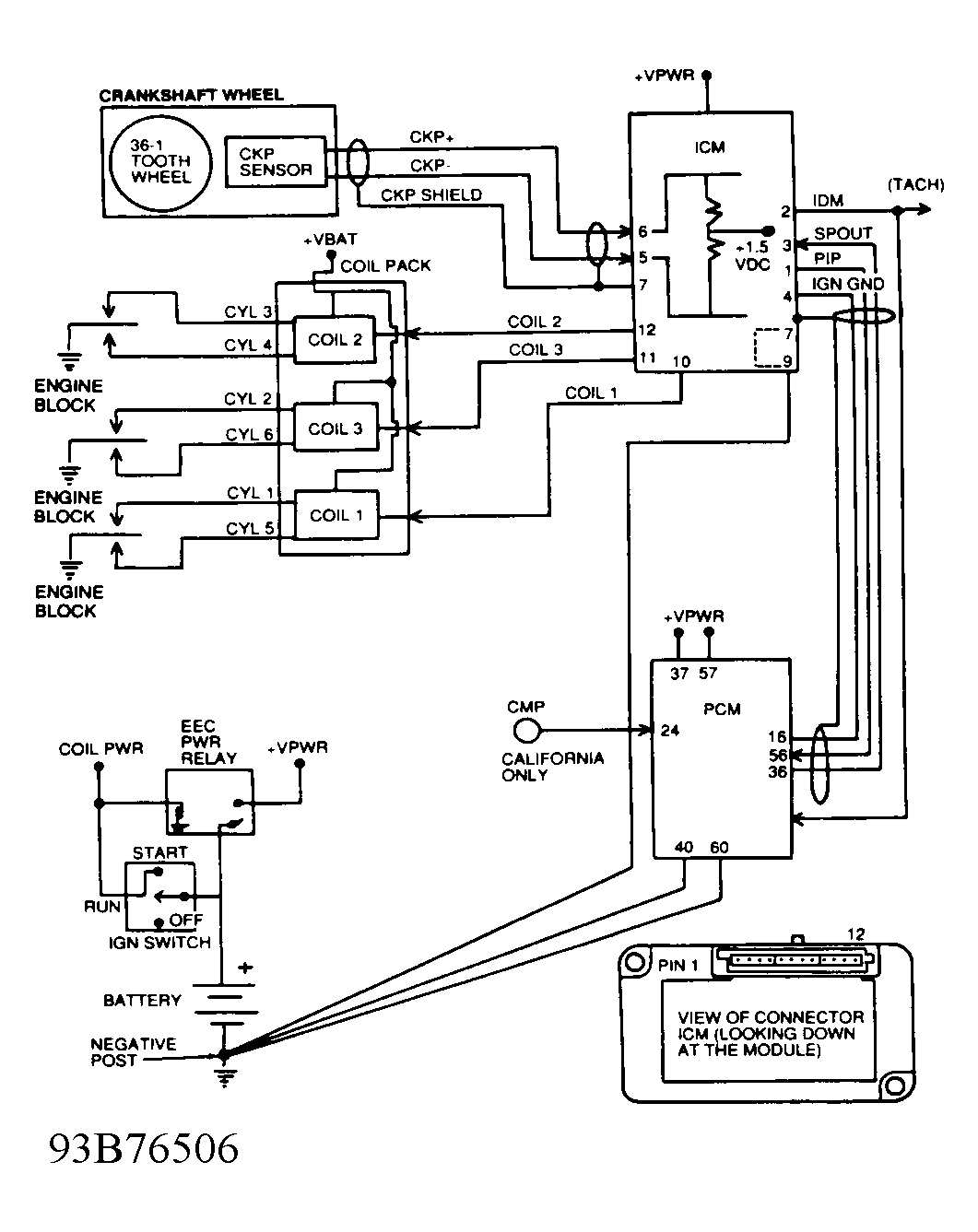

Fig 2: EI Block Diagram (4.0L)
G93B76506

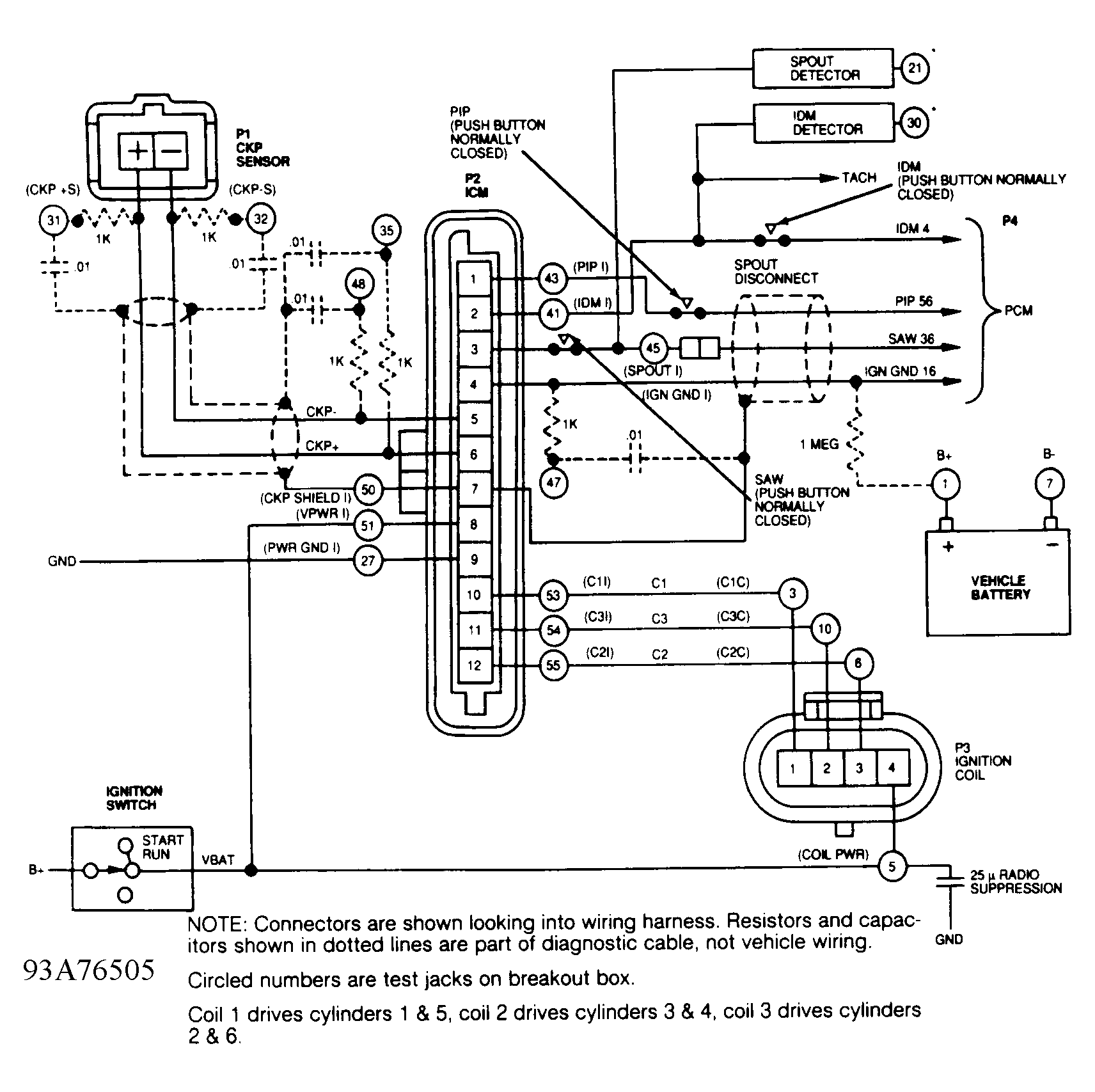

Fig 3: EI Wiring Diagram & Terminal Identification (4.0L)
G93A76505
