Removal & Installation: Flywheel: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. On M/T models, install primary flywheel on secondary flywheel. Install and tighten secondary flywheel bolts to specification. See TORQUE SPECIFICATIONS . Apply Threadlock(R) sealant to threads on flywheel-to-crankshaft bolts before installing.
On all models, install and tighten flywheel-to-crankshaft bolts to specification. See TORQUE SPECIFICATIONS .

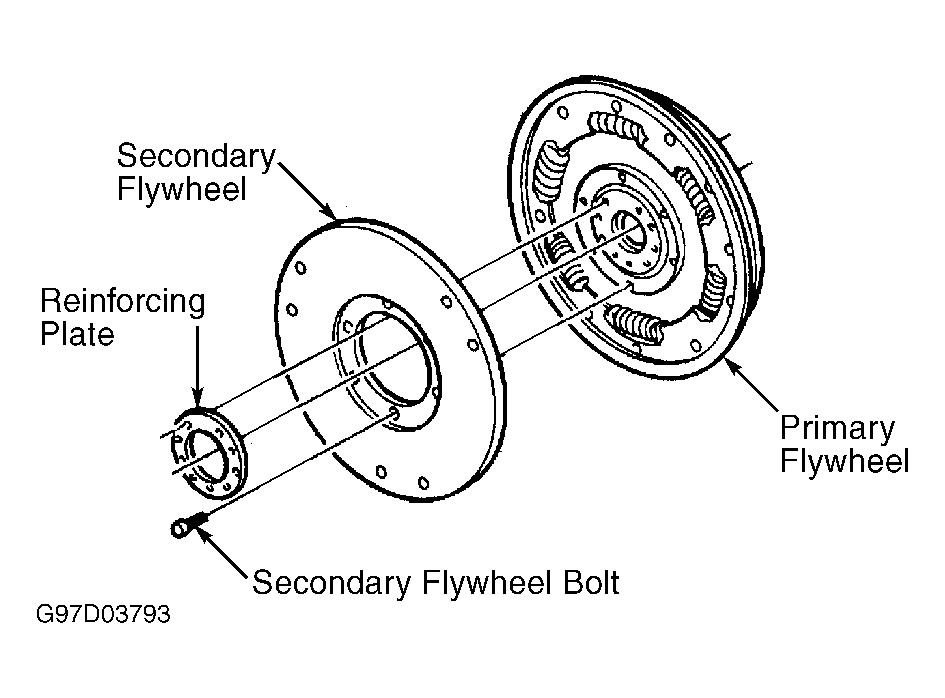

Fig 1: Identifying Dual Mass Flywheel Components (F250 HD, F350 & F350 Super Duty M/T Models)

Courtesy of FORD MOTOR CO.
