Removal & Installation: Camshaft: Installation

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

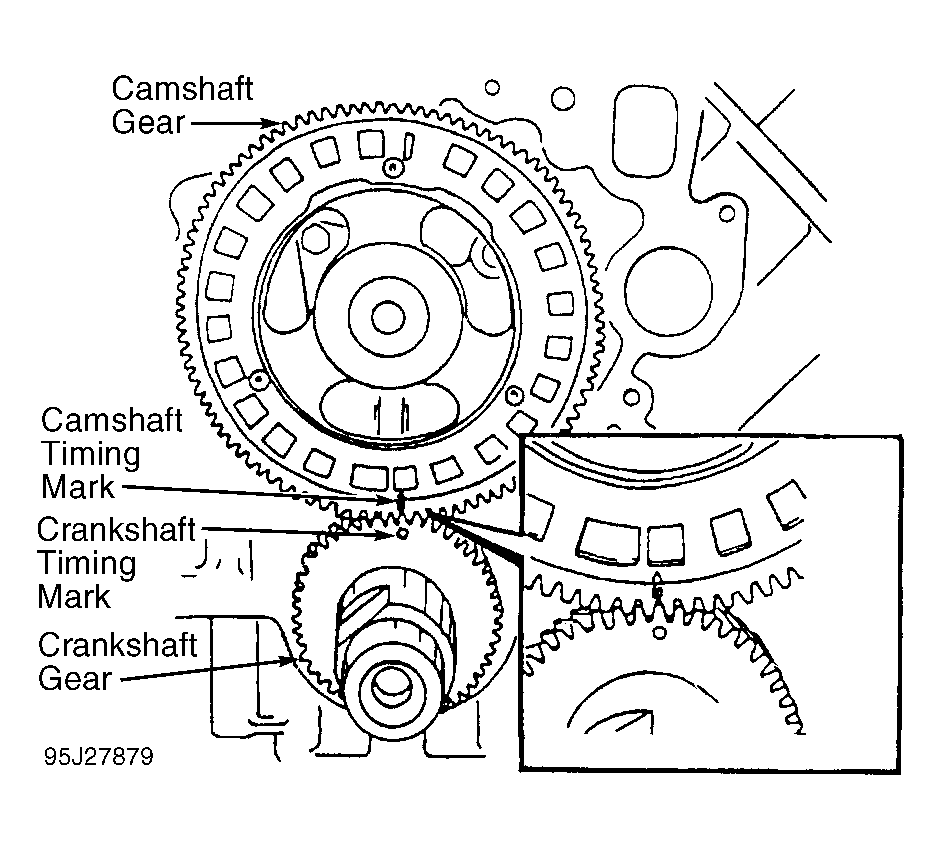

Lubricate camshaft journals with engine oil. Coat camshaft lobes with multipurpose grease. Install camshaft into bore. Ensure timing marks are aligned. See Figure. Install camshaft thrust plate. Ensure camshaft end play is within specification. See CAMSHAFT table under ENGINE SPECIFICATIONS.
Install rocker arms and push rods in original positions in block. Install engine front cover. See ENGINE FRONT COVER . To complete installation, reverse removal procedure.
