Piston & Rod Assembly
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
Anodized aluminum alloy pistons are used on DI Turbo engines and are fitted with 2 keystone compression rings and one oil control ring.

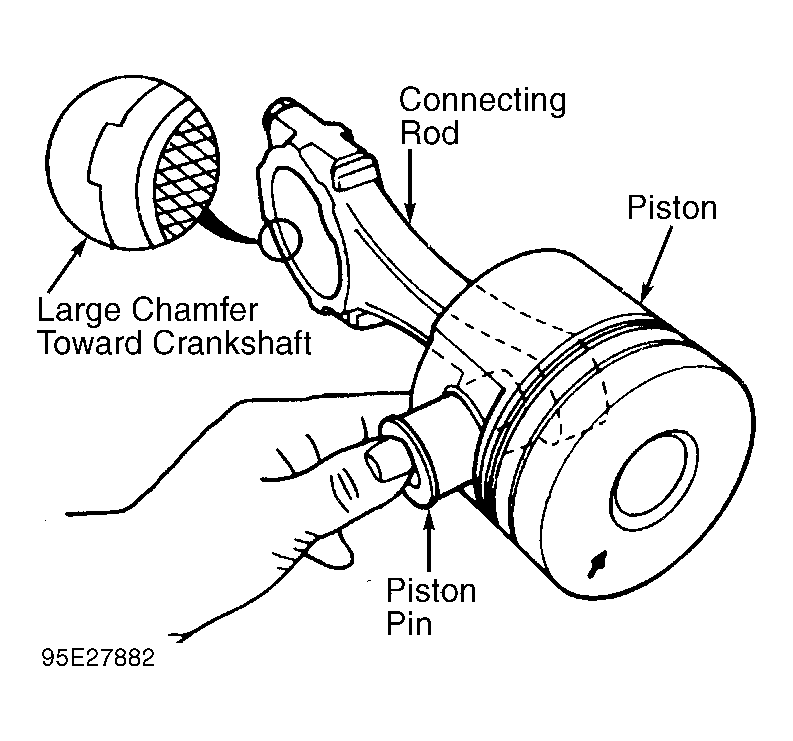

Ensure large chamfer on connecting rod journal is facing towards crankshaft. See Fig 1. Ensure pistons and rods are installed in same cylinders from which they were removed. Ensure the word camside and arrow on top of piston face towards camshaft when installed.
