Oil Cooler Assembly
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

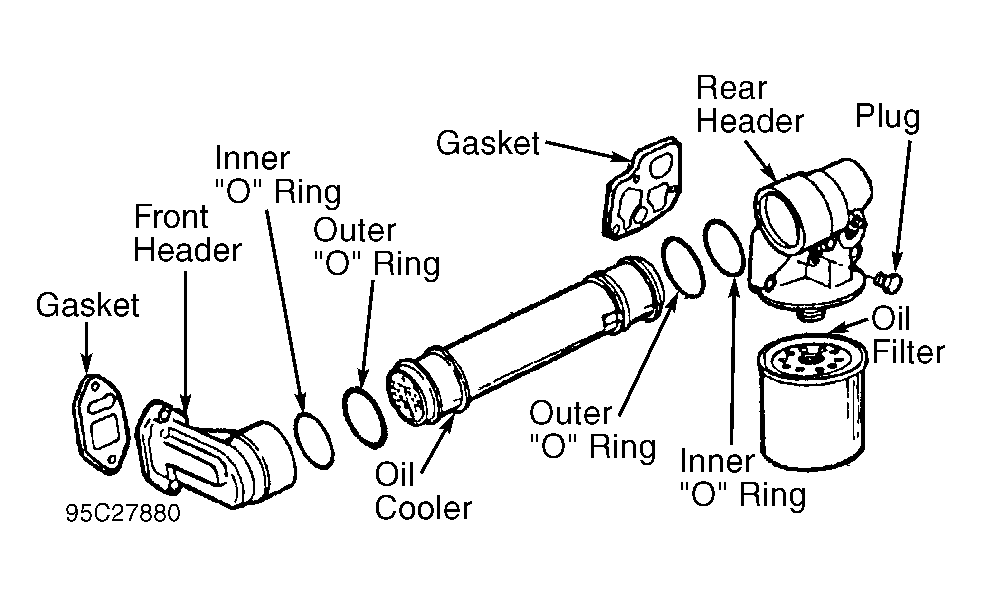

Oil flows from pump to oil cooler located on left side of engine block. See Figure and Figure. Oil flows around the outside of heat exchanger tubes inside oil cooler. Coolant flows through heat exchanger tubes where heat is transferred to coolant.
If oil is found in coolant or coolant is found in oil, check oil cooler for leakage. Areas of possible leakage include "O" rings, heat exchanger tubes inside cooler, front header and rear header.
