Engine Oiling System: Notes
WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

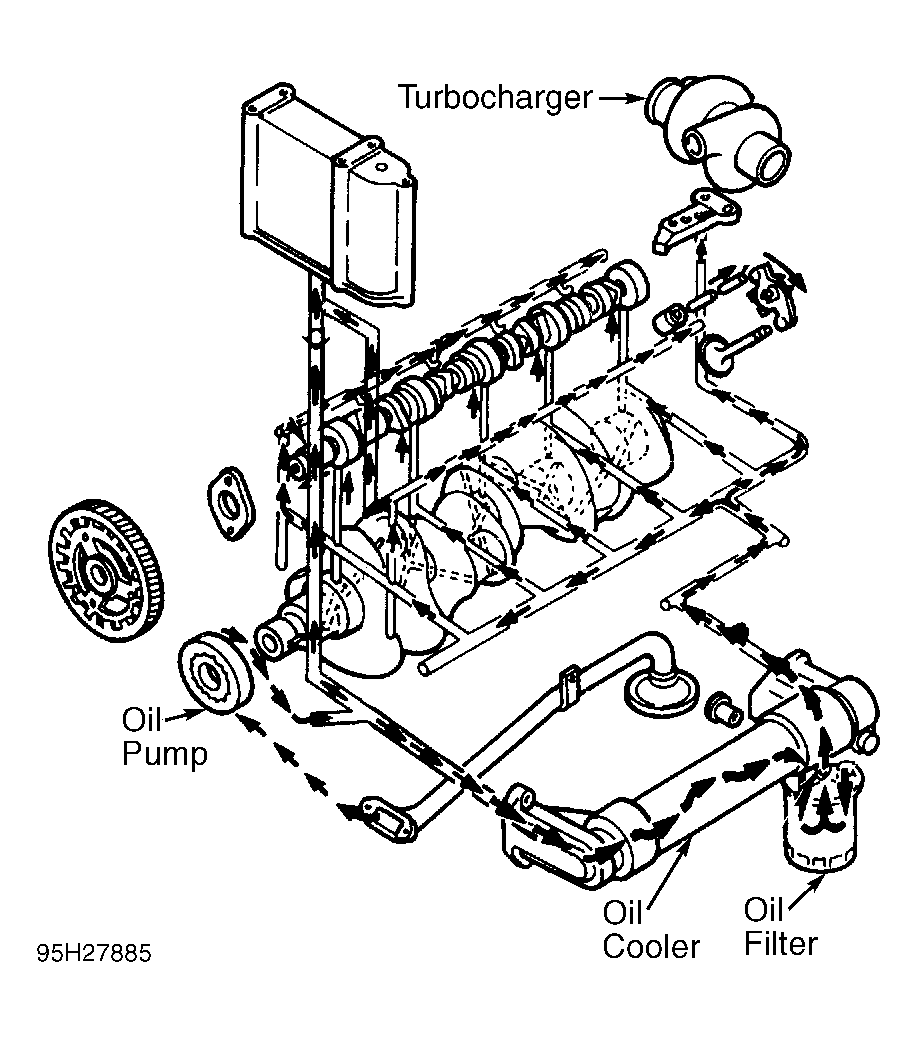

Full pressure lubrication through a full flow oil filter and oil cooler is supplied by a gear-driven oil pump. Main oil gallery feeds oil through passages to camshaft and crankshaft. Valve lifter gallery feeds valve lifters. Rocker arms are fed through hollow push rods. Oil to the turbocharger is supplied through a passage in the turbocharger mounting pedestal. Oil is returned to the crankcase through passage in the turbocharger pedestal oil gallery See Fig 1.
