Timing Chain: Removal

WARNING: This page is about a different car, the 1995 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove front cover. See FRONT COVER  . Ensure timing marks on all gears align. See Fig 1 . Remove retaining bolt, and remove camshaft position sensor drive gear.
  2. Remove camshaft gear, crankshaft gear and timing chain. See Fig 2 . If crankshaft gear is difficult to remove, position a pair of screwdrivers evenly on gear and carefully pry it off.
  3. Remove tensioner/snubber assembly by pulling back on ratcheting mechanism and installing a pin through hole in bracket. Remove retaining bolts, and remove tensioner/snubber assembly. See Fig 2 .
Fig 1: Aligning Timing Marks
G95C27872Courtesy of FORD MOTOR CO.

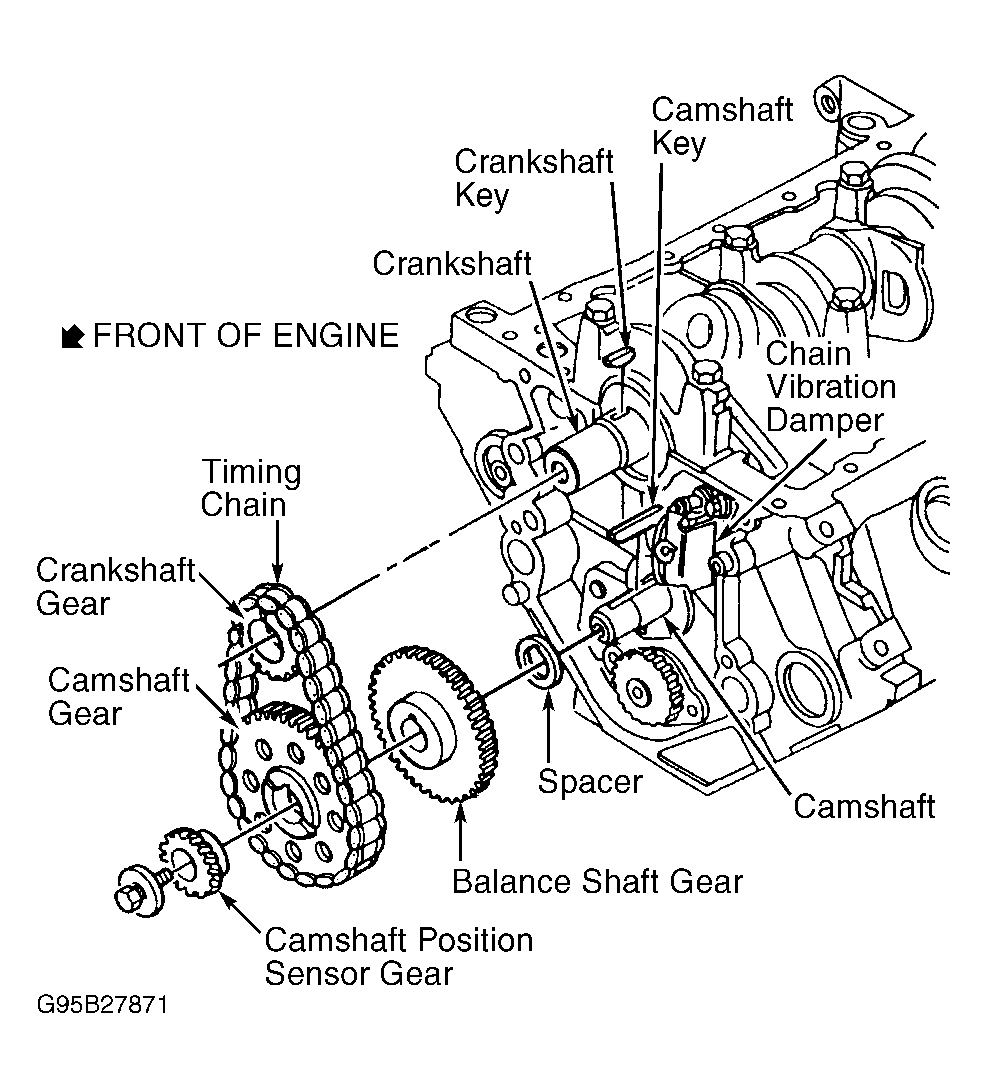

Fig 2: Exploded View Of Timing Chain & Components
G95B27871Courtesy of FORD MOTOR CO.
