Balance Shaft: Removal

WARNING: This page is about a different car, the 1995 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Engine must be removed in order to remove balance shaft. Refer to ENGINE . Remove the timing chain and gears. Refer to TIMING CHAIN .
Remove balance shaft drive gear from camshaft. Remove balance shaft thrust plate bolts. Remove balance shaft. See Fig 1 .
If replacing balance shaft bearings, remove rear bore plug. Use Camshaft/Balance Shaft Bearing Set (T65L-6250-A) to remove balance shaft bearings.

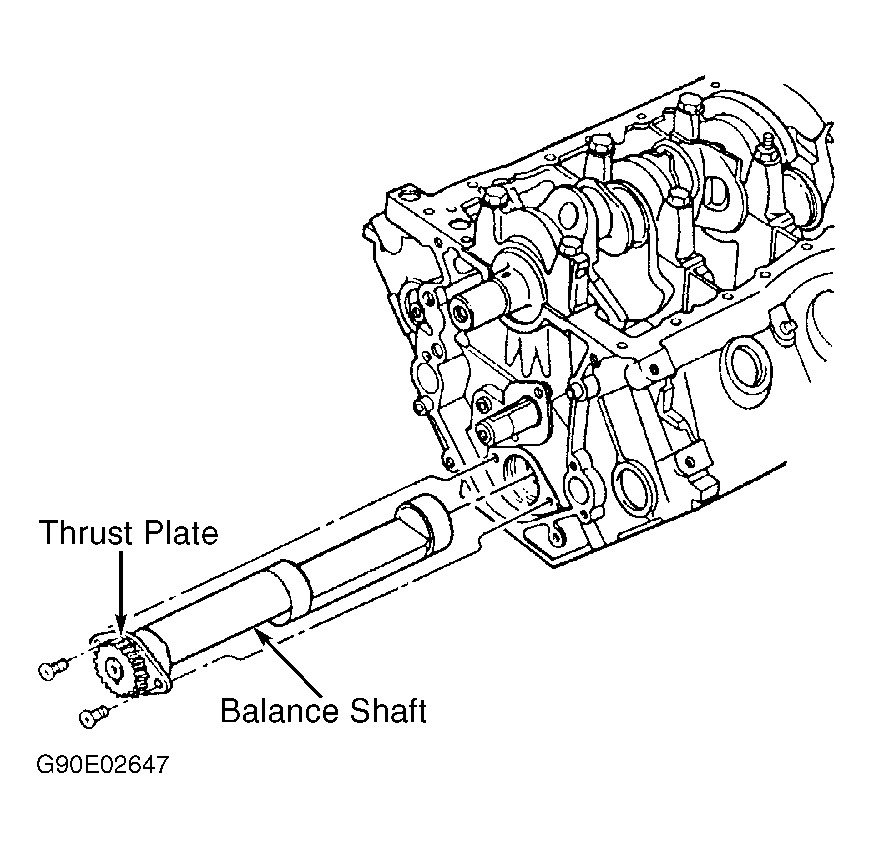

Fig 1: Locating Balance Shaft & Thrust Plate

Courtesy of FORD MOTOR CO.
