Timing Chain Cover: Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install NEW timing chain cover oil seal. Coat gasket surface of oil pan with gasket sealer. Cut and position NEW gasket on oil pan. Apply silicone sealer at block-to-oil pan junction. Apply gasket sealer to timing chain cover and cylinder block gasket surfaces. Position NEW timing chain cover gasket in place.
  2. Position timing chain cover on cylinder block. Install Timing Chain Cover Aligner (T68P-6019-A) on crankshaft. See Fig 1. Coa t threads of cover bolts with oil-resistant sealer and install bolts. It may be necessary to push cover downward to compress pan gasket.
  3. While pushing in on Timing Chain Cover Aligner (T68P-6019-A), tighten oil pan-to-cover bolts. Remove timing chain cover aligner and tighten timing chain cover-to-cylinder block bolts. To complete installation, reverse removal procedure. Fill engine crankcase with proper grade oil. Fill cooling system. Bleed air from system. See COOLING SYSTEM BLEEDING .

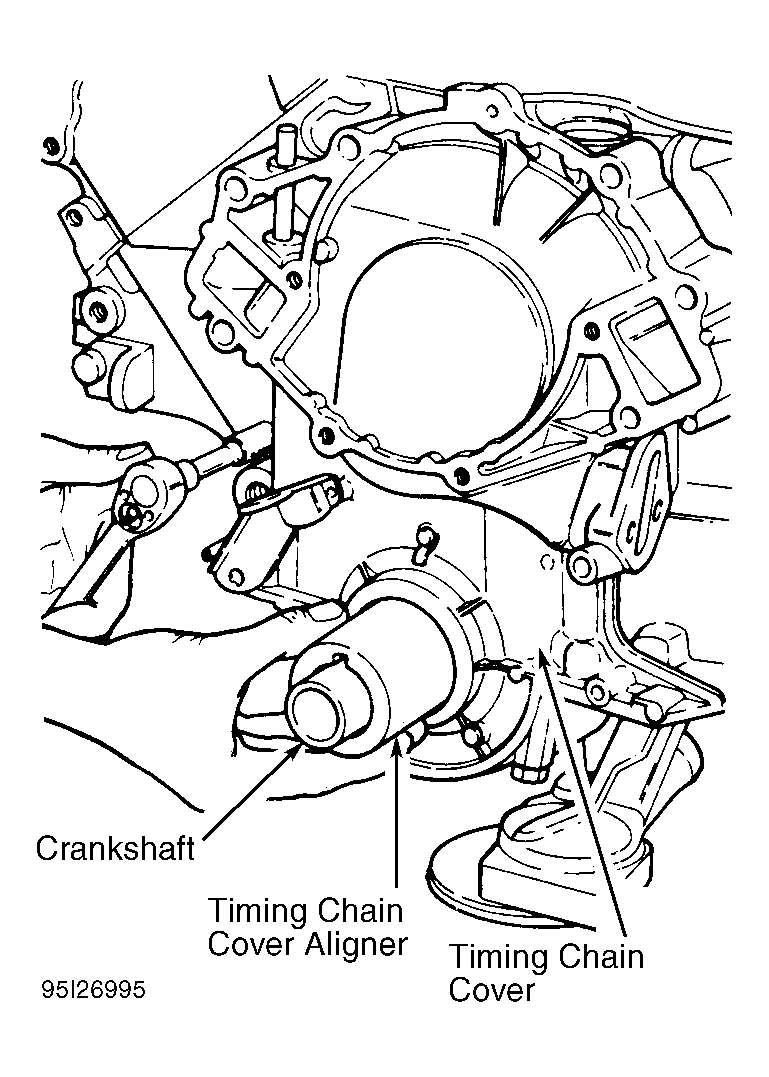

Fig 1: Aligning Timing Chain Cover
G95I26995Courtesy of FORD MOTOR CO.
