Timing Chain & Sprocket: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

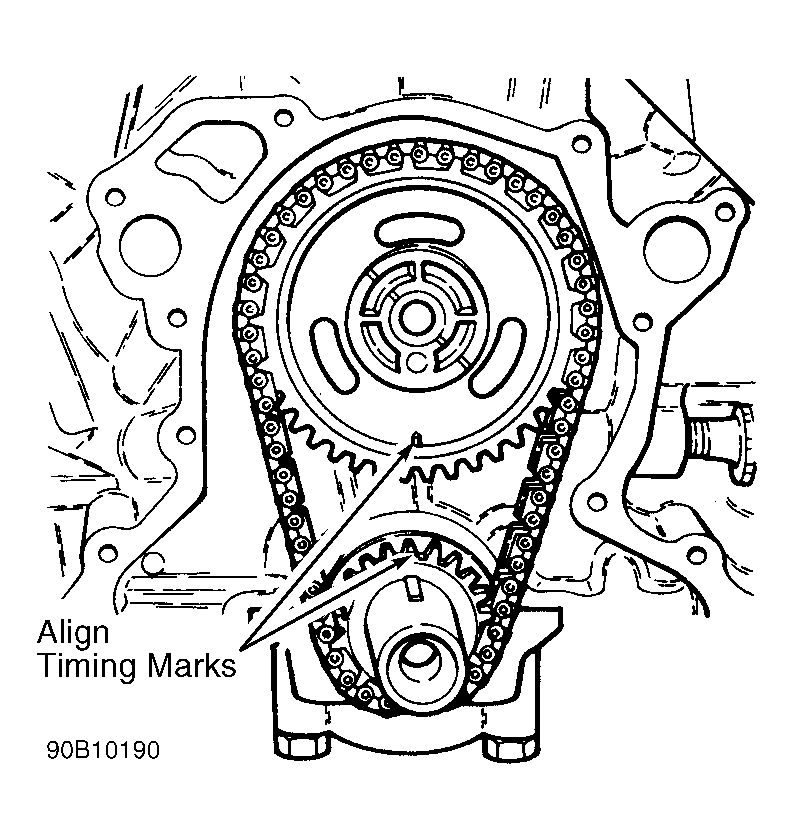

Assemble and align timing chain and sprockets. See Fig 1. Ins tall chain and sprockets as an assembly. Lubricate timing chain with engine oil. Tighten bolts to specification. See, in this article, TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure.
