Engine Oiling System: Notes
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford F-Super Duty, 1995 Ford Econoline, and 1995 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

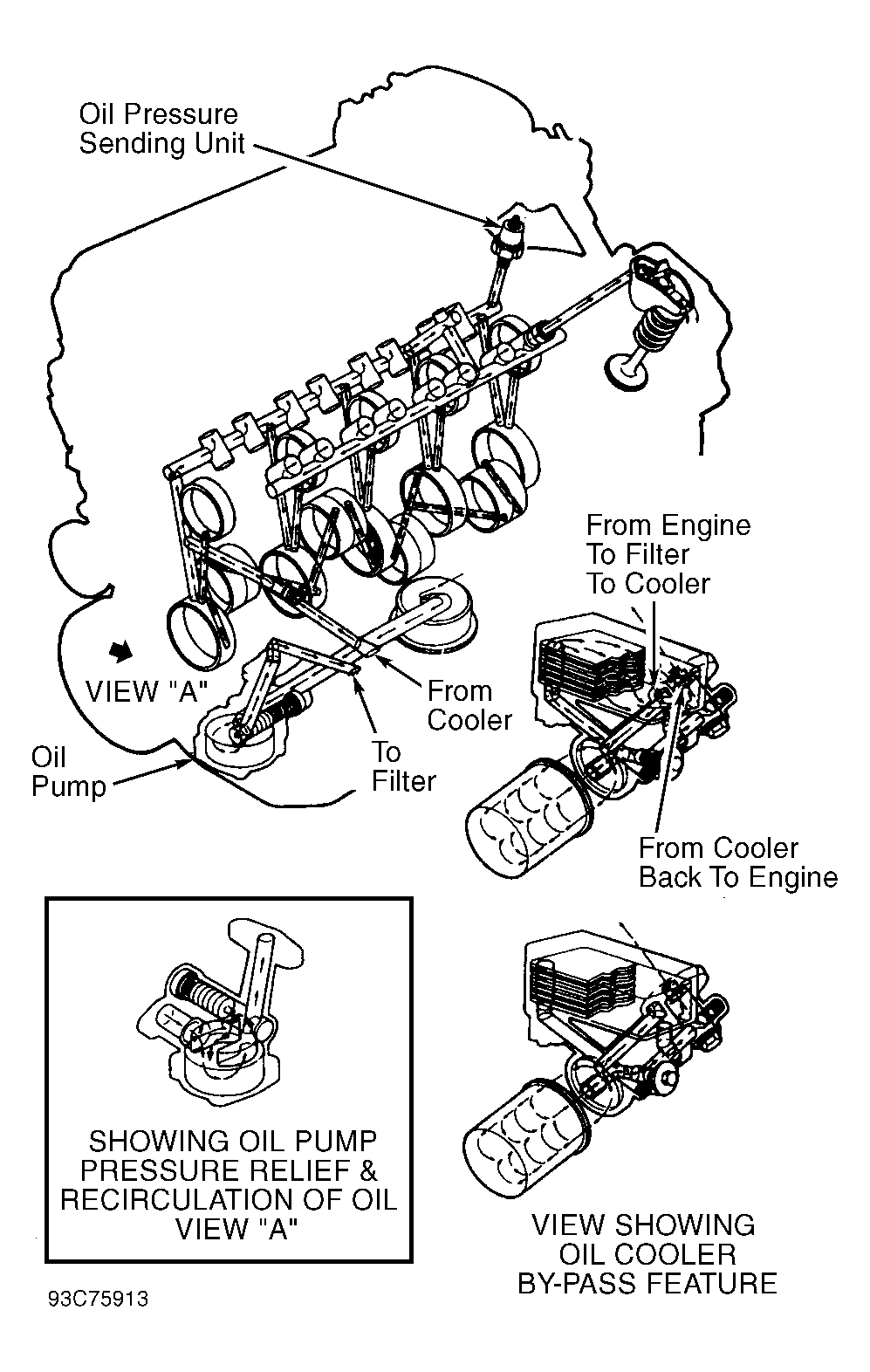

Engine lubrication is a force-feed system. Oil is supplied under full pressure to oil filter/oil cooler, main gallery, crankshaft, connecting rods, camshaft bearings and valve lifters. A controlled volume of oil is supplied to rocker arms through push rods. All other moving parts are lubricated by splash or gravity flow. See Figure.
