Timing Chain & Sprocket: Installation
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford Econoline, 1995 Ford Cutaway, and 1995 Ford Club Wagon. However, it is still accessible from the selected car via links, so may be relevant.

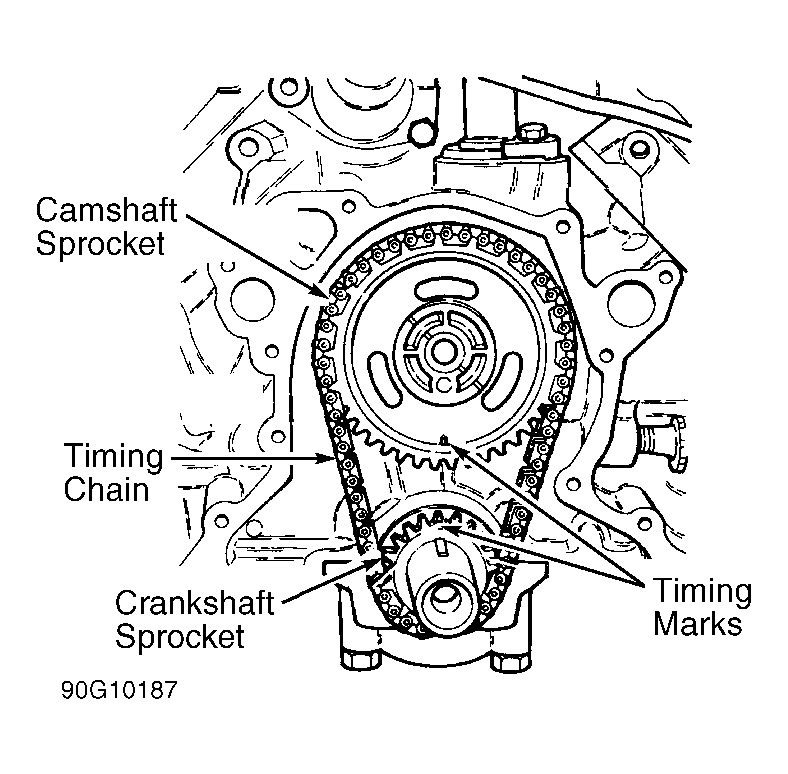

Install crankshaft sprocket, camshaft sprocket and timing chain as an assembly. Ensure timing marks are properly aligned. See Fig 1. Apply oil to timing chain and sprockets. To complete installation, reverse removal procedure. Tighten bolts and nuts to specification. See TORQUE SPECIFICATIONS .
