Lower Intake Manifold: Installation
WARNING: This page is about a different car, the 1995 Ford Pickup, 1995 Ford Econoline, 1995 Ford Club Wagon, and 1995 Ford Bronco. However, it is still accessible from the selected car via links, so may be relevant.
- Clean gasket mating surfaces. Apply a 1/16" (1.6 mm) bead of silicone rubber sealer on full width of each intake manifold seal (4 places). Install NEW lower intake manifold gaskets on cylinder block and heads.

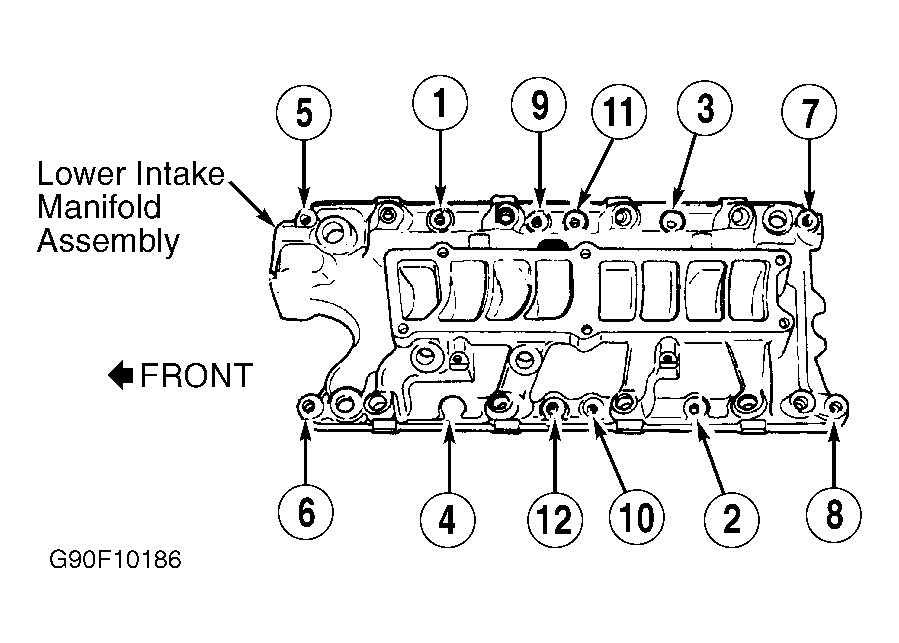

- Ensure gaskets are interlocked with end rubber gaskets. Install 2 guide pins in opposite corners. Install lower intake manifold and tighten bolts finger tight. Tighten bolts evenly in sequence to specification. See Fig 1. See TORQUE SPECIFICATIONS . To complete installation, reverse removal procedure. Fill and bleed air from cooling system. See COOLING SYSTEM BLEEDING .
