Removal & Installation: Thermostat: Installation
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1996 Ford Pickup, 1996 Ford Econoline, 1996 Ford Club Wagon, 1996 Ford Cab & Chassis, and 1995 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
- Clean the coolant outlet elbow and cylinder head gasket surfaces.
- Coat a new gasket with Perfect Seal Sealing Compound B5A-19554-A or D7AZ-19554-BA (ESR-M18P2-A and ESE-M4G115-A) or equivalent.

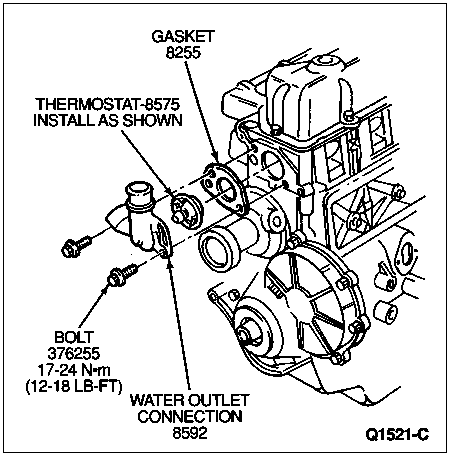

- Position the gasket on the cylinder head opening. The gasket must be positioned on the cylinder head before the thermostat is installed.
- The coolant outlet elbow contains a locking recess into which the water thermostat is turned and locked. Install the water thermostat with pellet side out.
- Turn the water thermostat clockwise to lock it in position on the flats cast into the outlet elbow.
- Position the coolant outlet elbow against the cylinder head. Install and tighten the attaching bolts to 16-24N-m (12-18 lb-ft).
- Fill and bleed the cooling system as described in this section.
- Check for leaks and proper coolant level after the engine has reached normal operating temperatures.
WARNING:
DO NOT STAND IN LINE WITH OR NEAR RADIATOR FAN BLADE (8600) WHEN ENGINE IS RUNNING.
