Piston & Rod Assembly
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 1996 Ford Pickup, 1996 Ford Econoline, 1996 Ford Club Wagon, 1996 Ford Cab & Chassis, and 1995 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

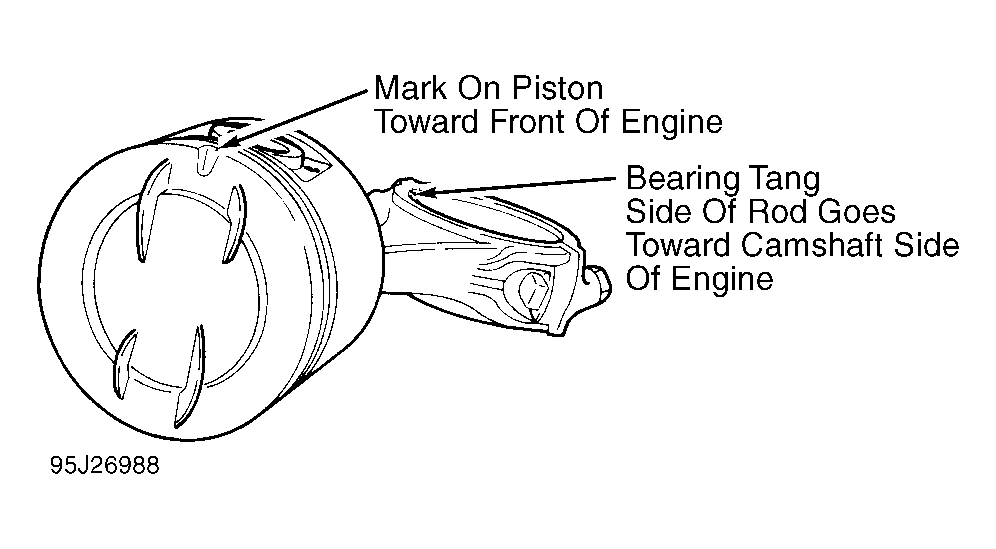

Note direction of connecting rod installation on piston before removal. Ensure pistons and rods are installed in cylinder from which they were removed. When installing piston in bore, ensure arrow on top of piston is facing front of engine and bearing tang on connecting rod is facing camshaft. See Fig 1.
NOTE:
Make all measurements when piston and block are at normal room temperature of 70°F (21°C).
