Diagnostic Trouble Code (DTC) Reference Charts

WARNING: This page is about a different car, the 1995 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

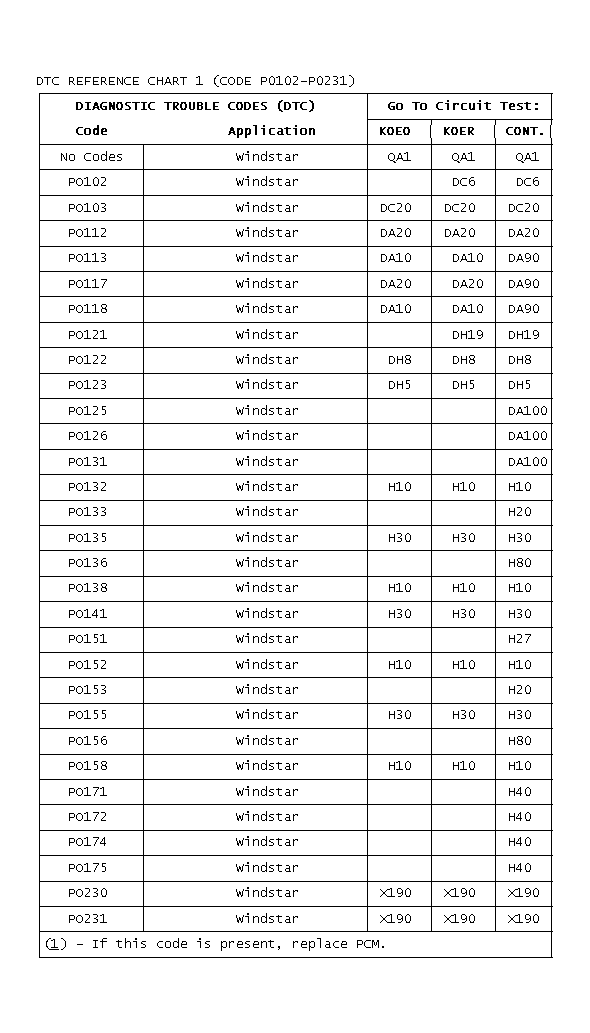

Fig 1: DTC Reference Chart 1 (CODE P0102-P0231)

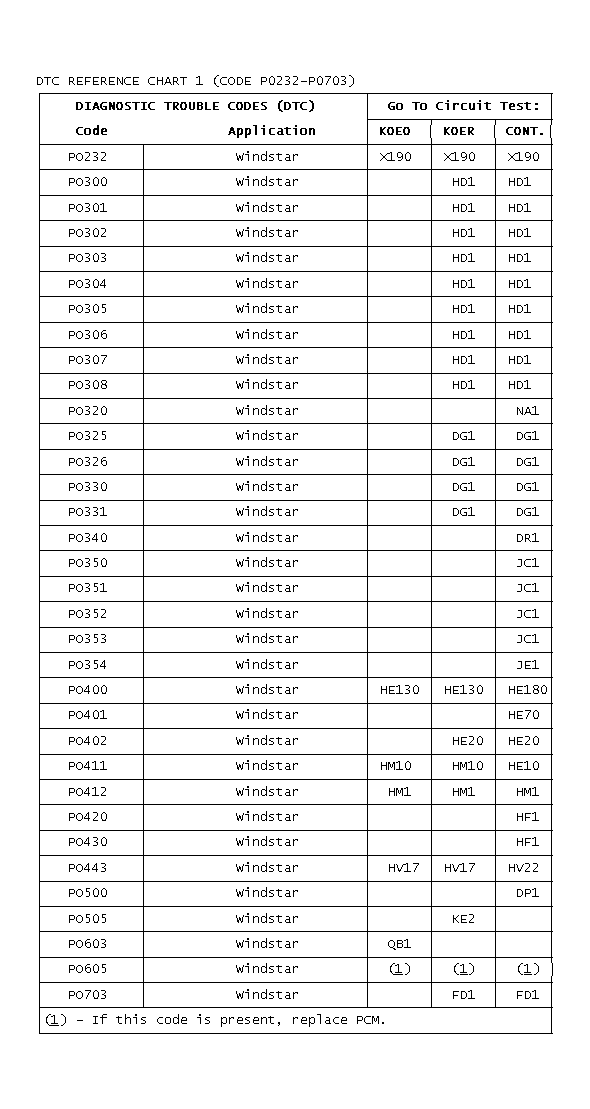

Fig 2: DTC Reference Chart 2 (CODE P0232-P0703)

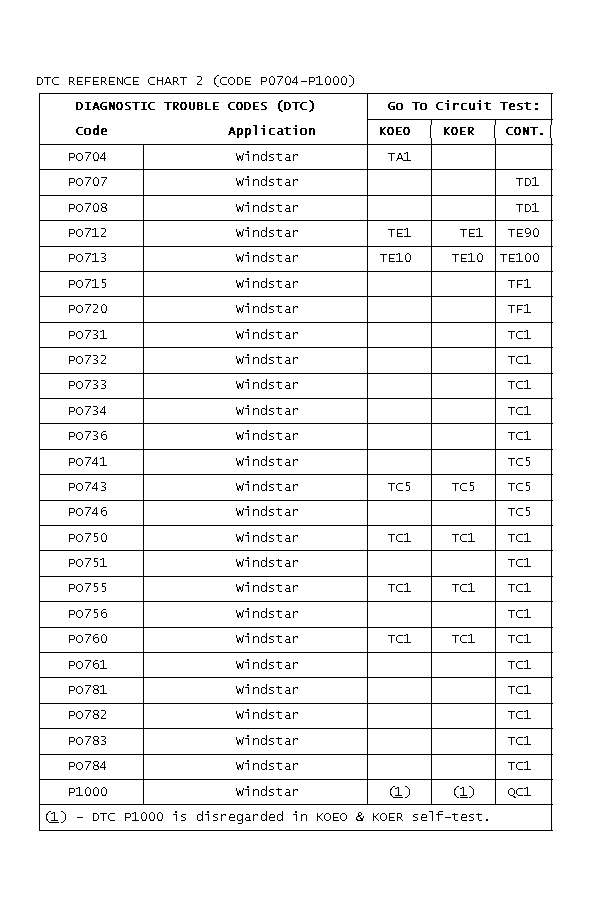

Fig 3: DTC Reference Chart 3 (CODE P0704-P01354)

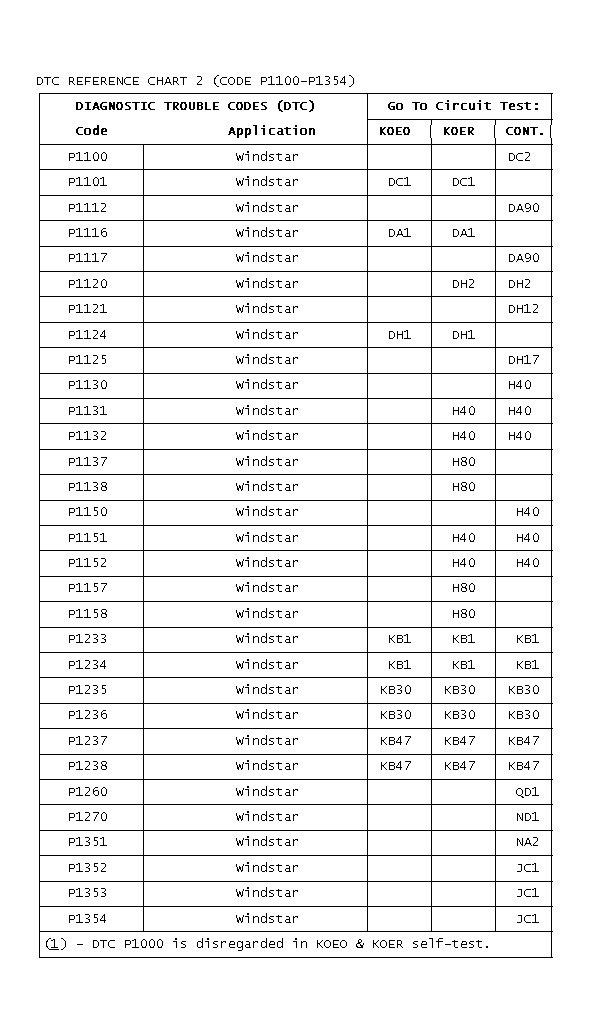

Fig 4: DTC Reference Chart 4 (CODE P0704-P01354)

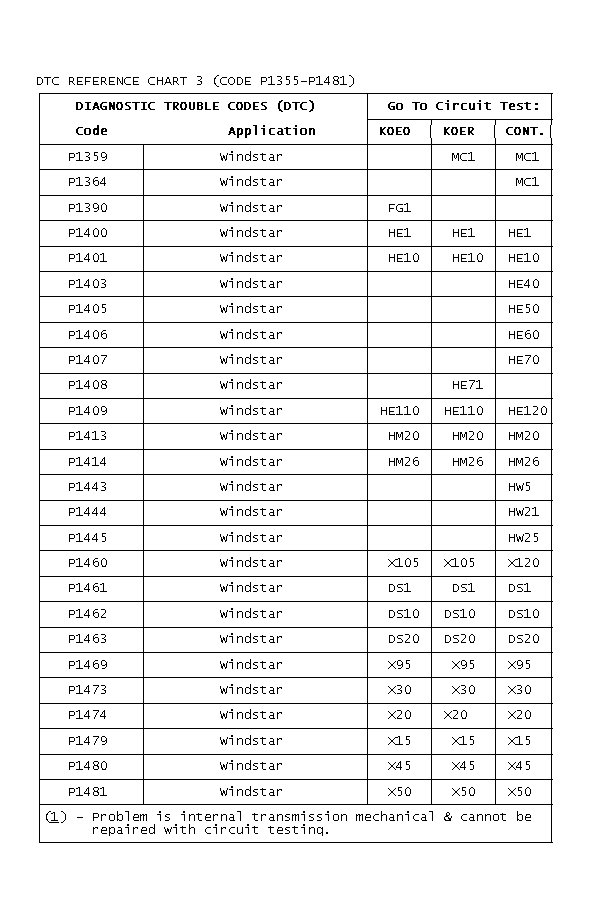

Fig 5: DTC Reference Chart 5 (CODE P1355-P1481)

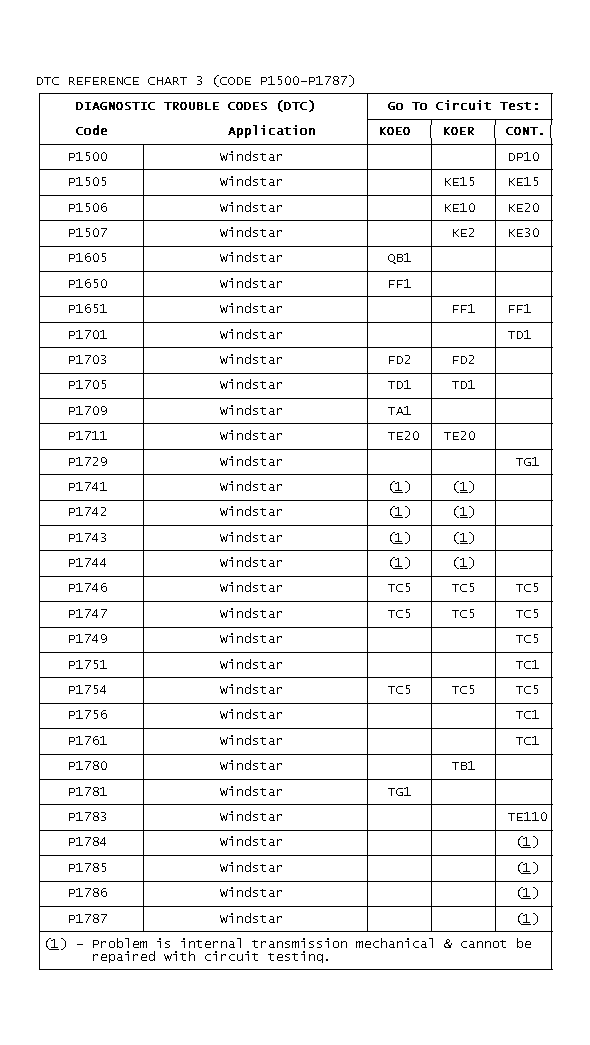

Fig 6: DTC Reference Chart 6 (CODE P1500-P1787)
