Firing Order & Timing Marks

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 1995 Ford RV Cutaway, 1995 Ford Pickup, 1995 Ford Econoline, 1995 Ford Cutaway, and 1995 Ford Club Wagon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For firing order and timing marks, See Fig 1 .

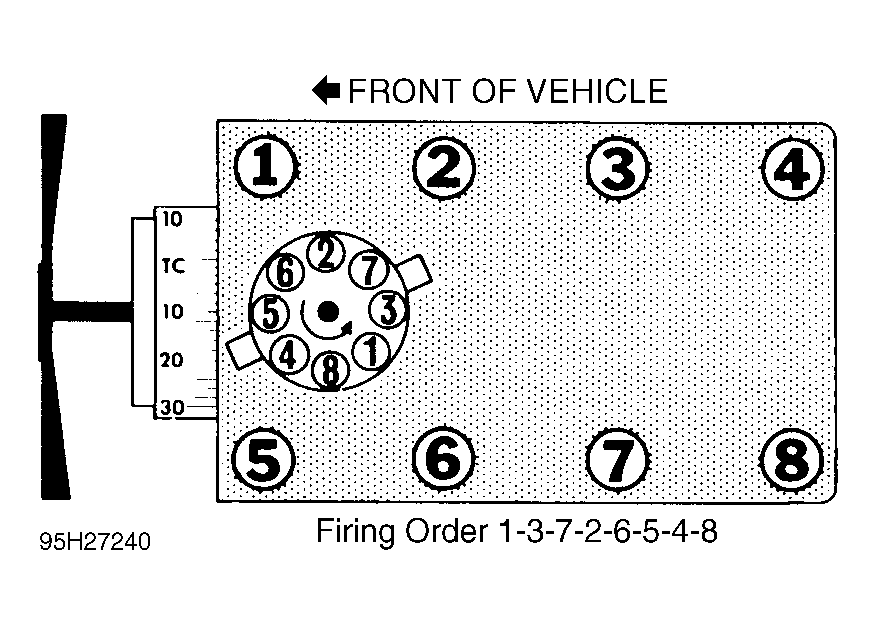

Fig 1: Identifying Firing Order & Timing Marks (5.8L)
G95H27240
